- Page 1 Advantix clamping ring Instructions for Use Model 4948.21 en_INT...
- Page 2 Advantix clamping ring 2 from 9...
-
Page 3: Table Of Contents
Table of contents Table of contents About these instructions for use Target groups Labelling of notes About this translated version Product information Intended use 2.1.1 Areas of use Product description 2.2.1 Overview Handling Assembly information 3.1.1 Installation dimensions 3.1.2 Tools and materials Assembly Disposal Advantix clamping ring... -
Page 4: About These Instructions For Use
This restriction does not extend to possible operating instructions. The installation of Viega products must take place in accordance with the general rules of engineering and the Viega instructions for use. -
Page 5: About This Translated Version
About these instructions for use About this translated version This instruction for use contains important information about the choice of product or system, assembly and commissioning as well as intended use and, if required, maintenance measures. The information about the products, their properties and application technology are based on the current standards in Europe (e. -
Page 6: Product Information

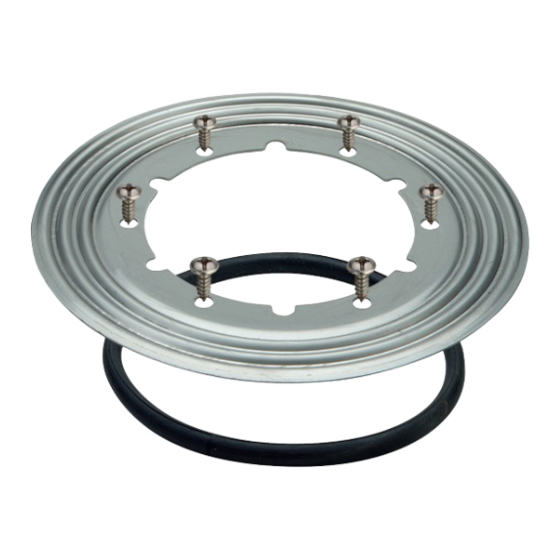

Product information 2 Product information Intended use 2.1.1 Areas of use The Advantix clamping ring is intended for fastening a sealing collar on an Advantix drain. Product description 2.2.1 Overview Fig. 1: Scope of delivery fixing screws clamping ring, stainless steel sealing element Advantix clamping ring 6 from 9... -
Page 7: Handling
Handling 3 Handling Assembly information 3.1.1 Installation dimensions Fig. 2: Dimensional drawing 3.1.2 Tools and materials Required tools screwdriver Required material sealing collar Advantix clamping ring 7 from 9... -
Page 8: Assembly
The sealing ring must lie in the groove between the flange and the screw holes. INFO! The Viega sealing collar has two differently coated sides. One side is coated with bitumen and the other side with EPDM. If the additional sealing takes place with bitumen sealing lanes, the sealing collar must be used with the bitumen side facing upwards. -
Page 9: Disposal
Handling Screw the clamping ring tightly to the flange. Thread in the mounting screws in the screw holes only. ð The drain is sealed and the remaining sealing collars can be laid. Disposal Separate the product and packaging materials (e. g. paper, metal, plastic or non-ferrous metals) and dispose of in accordance with valid national legal requirements.
