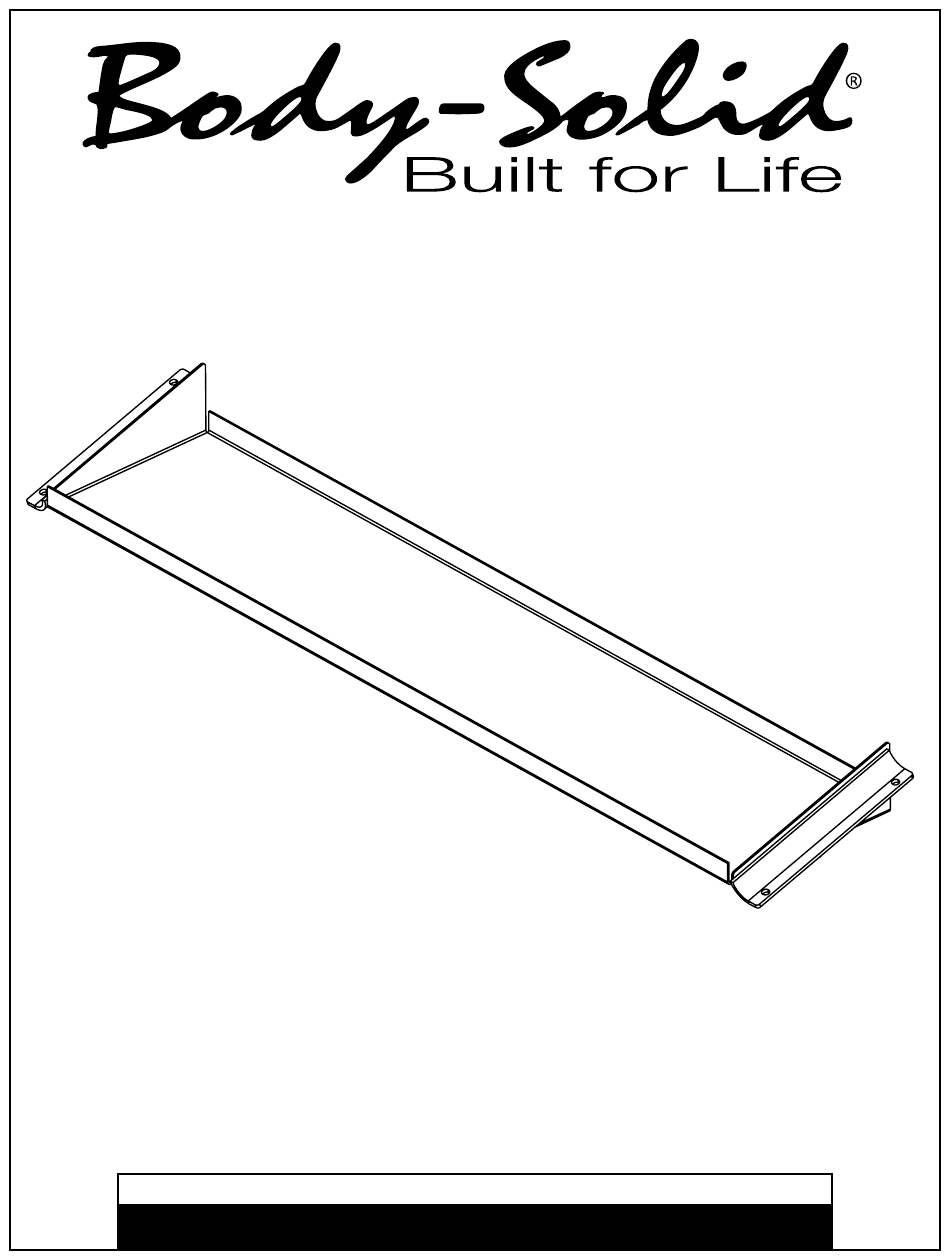

- Page 1 SDKRKB & A s s e m b l y I n s t r u c t i o n s O W N E R ’ S M A N U A L v. SDKRKB-102315...
- Page 2 W a r n i n g , S a f e t y & M a i n t e n a n c e Be sure that all users carefully read and understand all warning, safety and maintenance labels on the machine before each use.
- Page 3 T a b l e o f C o n t e n t s • SAFETY INSTRUCTIONS......PAGE 4 • PREPARATION..........PAGE 5 • HARDWARE & PART LISTS......PAGE 6 • HARDWARE ILLUSTRATION......PAGE 7 • ASSEMBLY INSTRUCTIONS......PAGE 8 • CONTACT PAGE...........
- Page 4 I m p o r t a n t S a f e t y I n s t r u c t i o n s Before beginning any fitness program, you should obtain a complete physical examination from your physician. Il est conseille de subir un examen medical complet avant d’entreprendre tout programme d’exercise. Si vous avez des etourdissements ou des faiblesses, arretez les exercices immediatement.
- Page 5 P r e p a r a t i o n Thank you for purchasing the SDKRKB. This bench is part of the Body-Solid line of quality strength training machines, which lets you target specific muscle groups to achieve better muscle tone and overall body conditioning. To maximize your use of the equipment please study this Owner’s Manual thoroughly. Required Tools Assembly Tips The basic tools that you must obtain before assembling Read all “Notes” on each page before beginning each the SDKRKB include but are not limited to: step. While you may be able to assemble the SDKRKB using m Metric Allen Key Set the illustrations only, important safety notes and other tips are included in the text. m Standard Allen Key Set m Standard Wrench Set Some pieces may have extra holes that you will not use.
- Page 6 S D K R K B H a r d w a r e & P a r t L i s t Part# Size Description Quantity M10x30mm HEX HEAD BOLT 4 PCS. LOCK WASHER 4 PCS. FLAT WASHER 4 PCS. Part# Description Quantity...
- Page 7 S D K R K B H a r d w a r e I l l u s t r a t i o n Part #1 HEX HEAD BOLT M10x30mm QTY. 4...
- Page 8 O P T. Be careful to assemble all components in the sequence they are presented. NOTE: Finger tighten all hardware initially. Wrench tighten ALL hardware at the end of this STEP. 1A. Attach Kettlebell Shelf (A) to the top tier of the two Uprights (B, Sold Seperately) using: 4 - (#1) M10x30mm Hex Head Bolt 4 - (#2) M10 Lock Washer 4 - (#3) M10 Flat Washer NOTE:...
- Page 9 O P T. Above shows option #1 assembled and completed.
- Page 10 O P T. Be careful to assemble all components in the sequence they are presented. NOTE: Finger tighten all hardware initially. Wrench tighten ALL hardware at the end of this STEP. 2A. Attach Kettlebell Shelf (A) to the second tier of the two Uprights (B, Sold Seperately) using: 4 - (#1) M10x30mm Hex Head Bolt 4 - (#2) M10 Lock Washer 4 - (#3) M10 Flat Washer NOTE:...
- Page 11 O P T. Above shows option #2 assembled and completed.
- Page 12 O P T. Be careful to assemble all components in the sequence they are presented. NOTE: Finger tighten all hardware initially. Wrench tighten ALL hardware at the end of this STEP. 2A. Attach Kettlebell Shelf (A) to the bottom tier of the two Uprights (B, Sold Seperately) using: 4 - (#1) M10x30mm Hex Head Bolt 4 - (#2) M10 Lock Washer 4 - (#3) M10 Flat Washer NOTE:...
- Page 13 O P T. Above shows Option #3 assembled and completed.
- Page 14 SDKRKB PLEASE WRITE YOUR SERIAL NUMBER IN THE BOXES BELOW 010215-��-��-����-���� S/N # 1900 S. Des Plaines Ave. Forest Park, Il 60130 Phone:(708)427-3555 Fax:(708)427-3556 Hours: M-F 8:30 - 5:00 CST www.bodysolid.com Copyright 2009. Body-Solid. All rights reserved. Body-Solid reserves the right to change design and specifications when we feel it will improve the product. Body-Solid machines maintain several patented and patent pending features and designs.
