2.1 Assembly / Disassembly

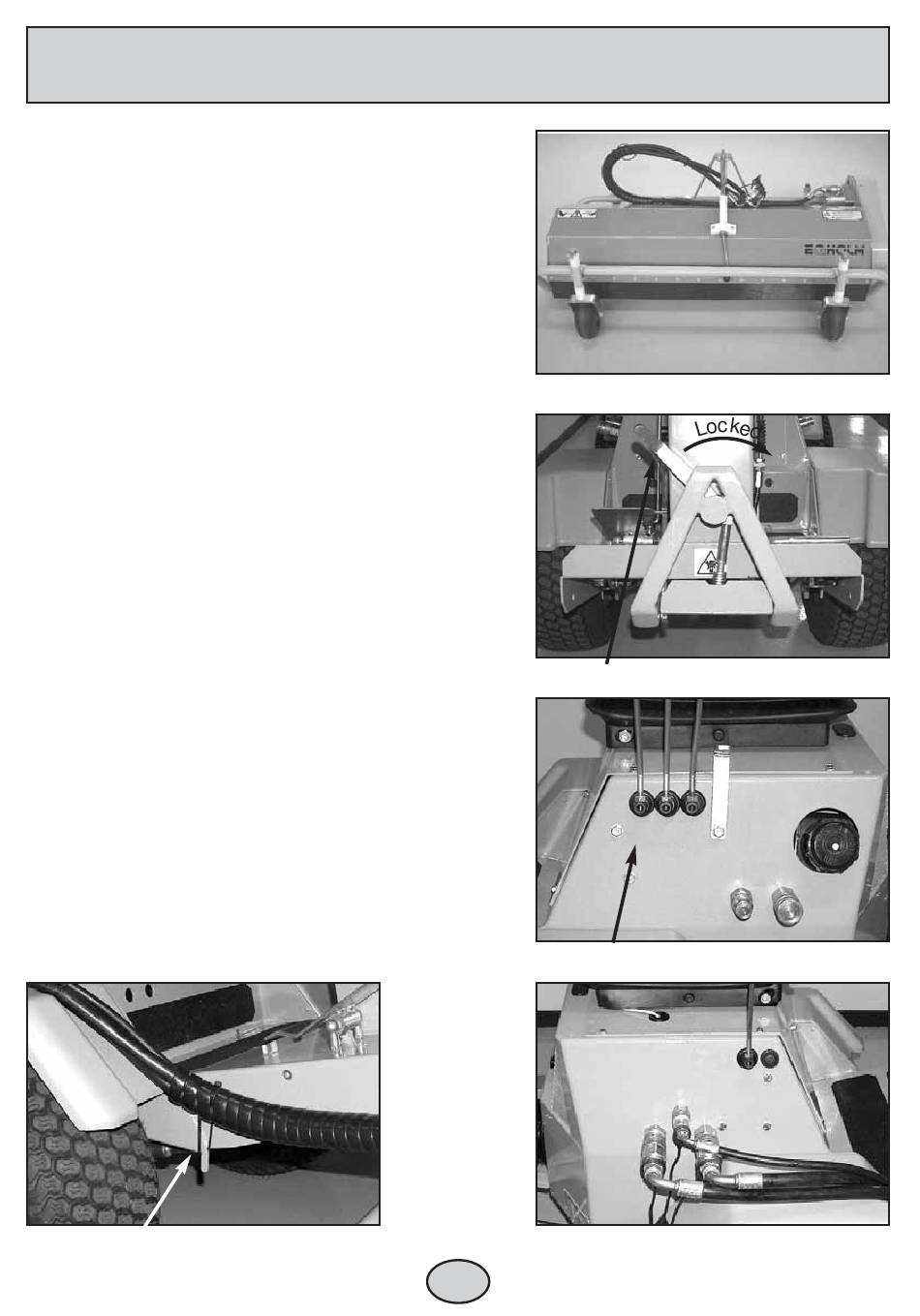

1. It is recommended that the hydraulic hoses should
be run over the frame of the mower to keep them
clear and free from dirt when the mower is fitted.
(Picture 1)
2. The locking handle on the A-frame of the basic
machine must be in the open position. (Picture 2)
3. Drive the basic machine right up to the A-frame of
the mower, so the A-frames fit into each other.
4. Raise the A-frame with lever A on the left-hand side
of the basic machine until the support wheels are
freely suspended above the ground. (Picture 3)
5. Lock the mower in place with the locking handle on
the A-frame. (Picture 2)
6. Stop the machine. (See the operator's manual for the
base machine, Section 2.2)
7. Attach the hydraulic hoses with the rubber ring under
the running board to ensure it runs correctly over the
screen. (Picture 4)
8. Fit the hydraulic hoses to the D-connectors on the
right-hand side of the machine.
The oil overflow hose D3 m m u u s s t t be fitted. (Picture 5)
4 4
4 4
The hoses are fastened with a
rubber strap
2. Operator's manual
1 1
1 1
2 2
2 2
Locking handle on the A-frame - open
3 3
3 3
Lever A on the left-hand side of the machine
5 5
5 5
D D 2 2
D D 2 2
8 8
Hydraulic hoses
A A B B C C
A A B B C C
D D 3 3
D D 3 3
D D 1 1
D D 1 1
D-connectors
