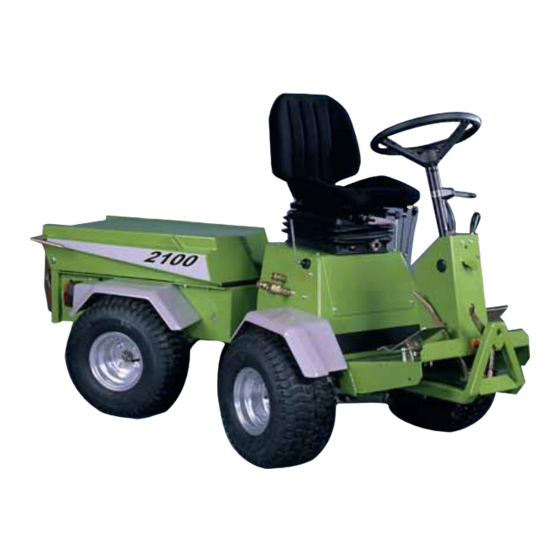

Egholm 2100 Operator's Manual

Lm 1200, rotary mower and mulch mower
Hide thumbs Also See for 2100:
Table of Contents

Advertisement

Quick Links

Download this manual
OPERATOR'S MANUAL
Rotary Mower and
Mulch Mower
90101451-01 GB

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2100 and is the answer not in the manual?

Questions and answers

Related Manuals for Egholm 2100

Summary of Contents for Egholm 2100

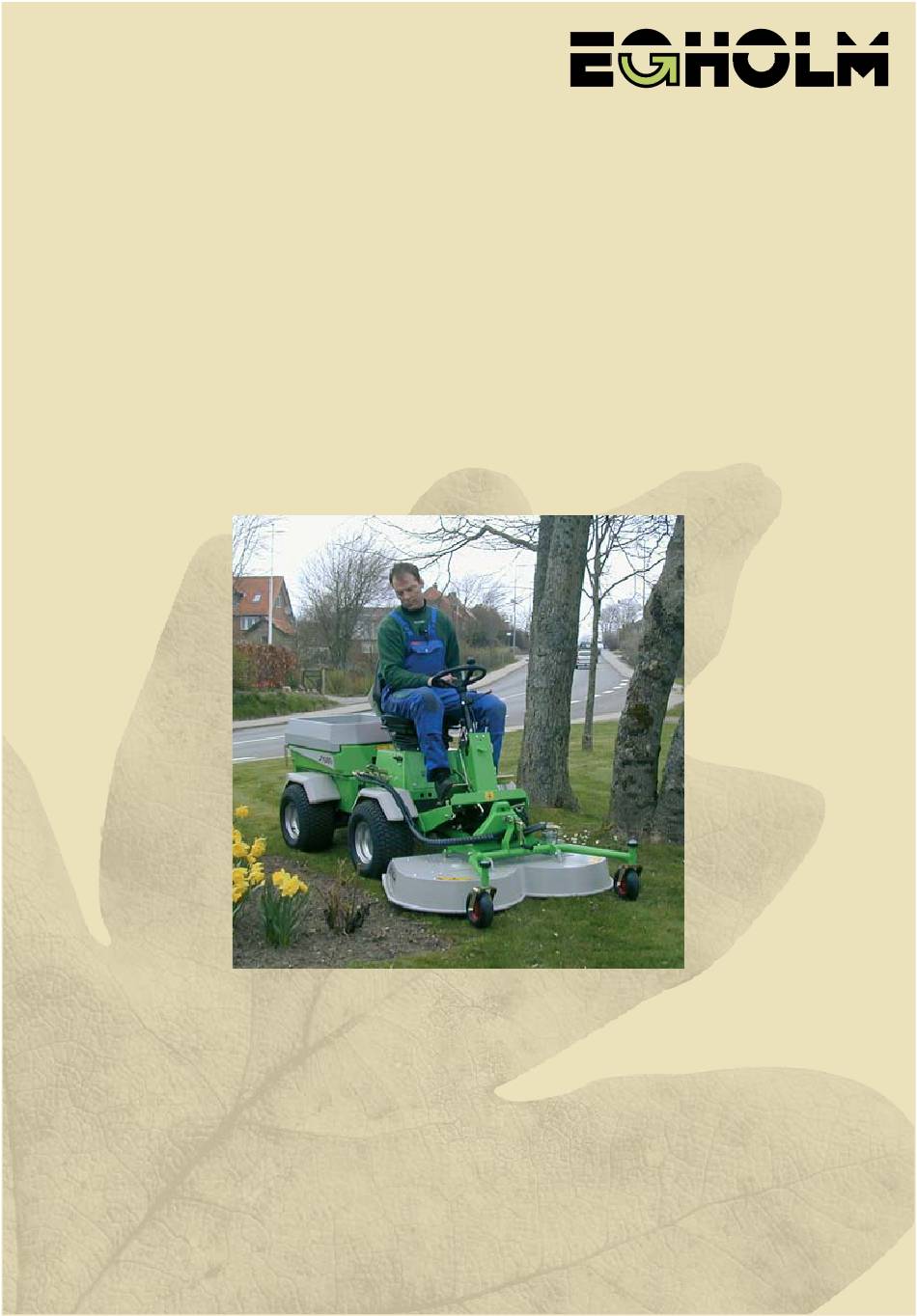

  • Page 1 OPERATOR’S MANUAL Rotary Mower and Mulch Mower 90101451-01 GB...
  • Page 2 Reservations: As it is the Egholm policy to make continuous improvements, we reserve the right to alter the specifi - cations and equipment at any time without notice. Egholm Maskiner A/S accepts no liability for errors or shortcomings in the operator’s manual.

  • Page 3: Table Of Contents

    Daily cleaning and maintenance extends the lifetime of machine and implements. Performance per hour is 5 – 10,000 m . With a working width of 1210 mm, the Egholm 2100 briskly handles all lawn areas.

  • Page 4: General Information

    1. General information 1.1 Safety Make sure no one is standing too close to the machine: Make sure no one is near the machine while it is in use as there is a danger of crushing. N.B.! Prevent people from standing As it is articulated, the rear of the in the working area machine swings out when turning.

  • Page 5: Ec Declaration Of Conformity For Machinery

    - is in conformity with the provisions of the following other EC directives: directive 2000/14/EC The Egholm 2100 fi tted with the cab FH 2100 (ROPS approved) - has been tested at the Danish Institute of Agricultural Sciences at Bygholm in...

  • Page 6: Technical Data

    1. General information 1.3 Technical data Dimensions: Assembled: Storage dimensions: Length (L): 2,780 mm 980 mm Width (B): 1,290 mm 1,290 mm Height without cab (H): 540 mm 500 mm Height with cab: 1,935 mm Side view Technical data: Type description: LM1200 Sound power level re Directive 2000/14/EU LWA:...

  • Page 7: Instructions For Use

    2. Instructions for use 2.1 Assembly/Disassembly Assembly: 1. It is recommended that the hydraulic hoses should be run over the mower in front of the A-frame to keep them clear and free from dirt when the mower is being fi tted. (Picture 1) 2.

  • Page 8: Before Start-Up

    2. Instructions for use 2.2 Before start-up During transport, lock the mower in the raised position with the transport lock. (Picture 1) Before start-up and fi tting the mower, make sure the blades are sharp, intact and without cracks. This avoids unnecessary stops during mowing.
  • Page 9 (See section 3.1 Cleaning). It is recommended always using the large radiator cover when mowing. The large radiator cover can be ordered from an authorised Egholm distributor. Warning! Rotating parts: Water cooler cover Make sure no one puts their fi ngers or toes under the mower while it is running to avoid personal injuries.

  • Page 10: Adjustment

    2. Instructions for use 2.4 Adjustment Adjusting the cutting height: It is recommended to start with a high cutting height, to avoid cutting the grass too short. Adjustment is carried out as follows: 1. Stop the machine. (See the operator’s manual for the Adjustment scale basic machine, section 2.2).

  • Page 11: Service And Maintenance

    3. Service and Maintenance 3.1 Cleaning Cleaning the mower: 1. Stop the machine. (See the operator’s manual for the basic machine, section 2.2) 2. Dismount the mower. (See section 2.1) 3. Tip the mower. (Picture 1) Mower tipped 4. Clean the mower with water. It is recommended to clean the mower immediately after mowing to keep the grass from sticking to the shield and the blades...

  • Page 12: Maintenance

    It is recommended only to use the strike plate twice and not to bend it in the same place, to avoid the Cutting direction of the blades blades falling out when mowing. New blades and strike plate can be ordered from an authorised Egholm distributor.
  • Page 13 5. Re-fi t the blades. (See page 12) Replacing the V-belt: The V-belt must be replaced every year by an Egholm distributor. Winter storage: When it is time to store the mower for the winter, the following steps are recommended: 1.

  • Page 14: Conditions

    Egholm Maskiner A/S has no control. The scope of warranty: 1. The Egholm warranty is only valid on presentation of the original receipt supplied with model description, serial number and date of purchase.

  • Page 15: Complaints

    Best regards Egholm Maskiner A/S - Transportvej 27 - DK -7620 Lemvig, tel: +45 97 81 12 05, fax: +45 97 81 12 10 4.3 Disposal When – many years from now – your Egholm Mulch Mower/Rotary Mower comes to the end of its working life, it should be disposed of in a responsible manner and conform with the relevant disposal regulations.
  • Page 16 Egholm Maskiner A/S * Transportvej 27 * DK-7620 Lemvig Tel.: (+45) 97 81 12 05 * Fax: (+45) 97 81 12 10 www.egholm.dk * egholm@egholm.dk...
