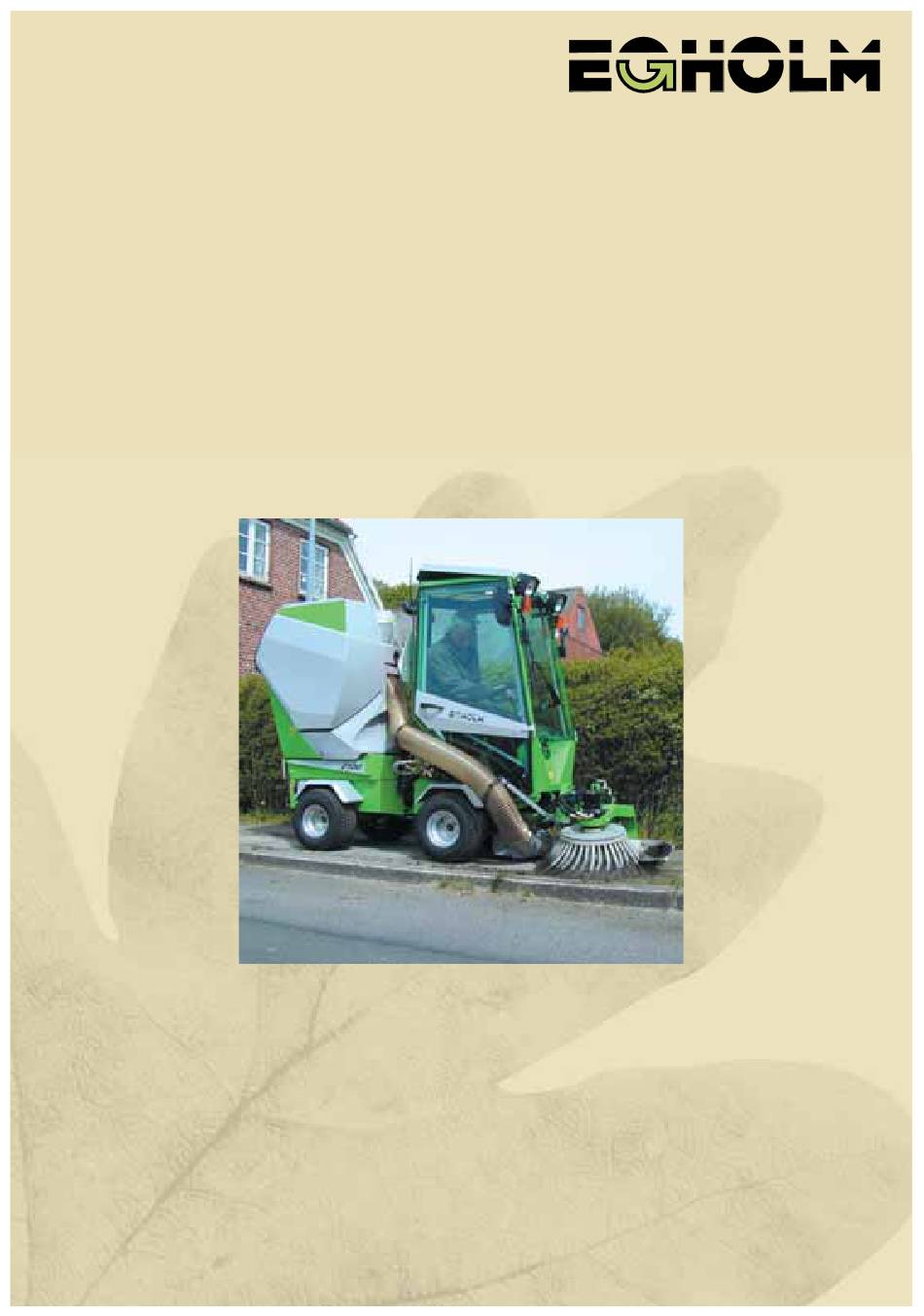

OPERATOR'S MANUAL
Weed Brush
90101031-01 UK

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2100 and is the answer not in the manual?

Questions and answers

Related Manuals for Egholm 2100

Summary of Contents for Egholm 2100

  • Page 1 OPERATOR'S MANUAL Weed Brush 90101031-01 UK...
  • Page 2 Reservations: As it is the Egholm policy to make continuous improvements, we reserve the right to alter the specifications and equipment at any time without notice. Egholm Maskiner A/S accepts no liability for errors or shortcomings in the operator's manual.

  • Page 3: Table Of Contents

    Useful tips The Weed Brush has been specially developed Always start your weed control in early spring. A for the Egholm utility machine perfect result requires repeated efforts throughout the summer. The Weed Brush is used to remove weeds from kerbs, pavements and roads.

  • Page 4: Safety

    1. General information 1.1 Safety Mounting: Make sure that the attachment has been fitted correctly and that the locking handle can be moved to locked position. (Picture 1) Make sure no one is standing close to the machine: Locked position M M a a k k e e s s u u r r e e t t h h e e r r e e i i s s n n o o o o n n e e c c l l o o s s e e t t o o t t h h e e m m a a c c h h i i n n e e w w h h e e n n i i t t i i s s i i n n u u s s e e .

  • Page 5: Ec Declaration Of Conformity For Machinery

    - has been manufactured in conformity with the provisions of the Machinery Directive, Directive 98/37/EU The Egholm 2100 fitted with the FH 2100 cab (ROPS approved) - has been tested at - and approved by - the Danish Institute of Agricultural...

  • Page 6: Technical Data

    1. Generel information 1.3 Technical data Dimensions: Storage Assembled: dimensions: Length (L): 4,150 mm 1330 mm Width (W): 1,180 mm 900 mm Height without 630 mm 630 mm cab (H): Height with cab: 1,935 mm Side view Technical data: Type description: Weed Brush diameter: 700 mm Revolutions:...

  • Page 7: Assembly / Disassembly

    2. Operator's manual 2.1 Assembly / Disassembly Assembly: 1. The locking handle on the A-frame of the basic unit must be in the open position. (Picture 1) 2. Drive the machine right up to the A-frame of the Weed Brush so that the A-frames fit into each other. Locking handle on the A-frame - open NB! We recommend raising the basic unit A-frame slightly to prevent damage to the paintwork on the...
  • Page 8 2. Operator's manual 2.1 Assembly, continued... 7. Run the two small hydraulic hoses between the D2 and D3 connectors and attach them to the C-connector. (Pictures 1+2) N N . . B B ! ! For collecting tanks without three-way valve: The hydraulic hoses for tipping the collecting tank must be disconnected from connector C before the snap Leading the hydraulic hoses...

  • Page 9: Start-Up

    2. Operator's manual 2.2 Start-up 1. Start the machine. (See the operator's manual for the basic unit, section 2.2) 2. Turn the throttle until it is at least half open. (Picture 1) 3. Slowly move lever D up to position 1. The Weed Brush will begin to rotate and the suction will start.

  • Page 10: Adjustment

    2. Operator's manual 2.3 Emptying the collecting tank With three-way valve: If the collecting tank is fitted with a three-way valve, use lever C to empty the tank. (Picture 2) Without three-way valve: If the collecting tank is not fitted with a three-way valve, disconnect the Weed Brush hydraulic hoses from C1 and C2 and connect the collecting tank hoses to C1 and C2 C connector...
  • Page 11 2. Operator's manual Adjusting the wearing rail: The roller brush ensures that the weeds are collected in the collecting tank. The wearing rail holds the roller brush and must always be in contact with the ground to ensure that the roller brush functions optimally.

  • Page 12: Service And Maintenance

    4. Remove the oil motor. 5. Remove the roller brush. To fit the new roller brush, reverse the procedure. You can order new roller brushes from an authorised Egholm distributor. Loosen the bolts that hold the oil motor in place...

  • Page 13: Troubleshooting

    3. Service and Maintenance 3.3 Troubleshooting If weeds remain lying on the ground: F F o o r r t t h h e e m m a a c c h h i i n n e e t t o o c c o o l l l l e e c c t t w w e e e e d d s s i i n n t t h h e e c c o o l l l l e e c c t t i i n n g g t t a a n n k k , , t t h h e e r r o o l l l l e e r r b b r r u u s s h h m m u u s s t t t t o o u u c c h h t t h h e e g g r r o o u u n n d d .

  • Page 14: Conditions

    Egholm Maskiner A/S has no control. The scope of warranty: 1. The Egholm warranty is only valid on presentation of the original receipt supplied with model description, serial number and date of purchase. 2. Regular checks, adjustments, services and technical alterations are not covered by the warranty.

  • Page 15: Conditions Of Complaint

    This applies to inquiries concerning normal use, service, maintenance and spare parts as well as to any complaints. If there are questions that the distributor cannot answer, please do not hesitate to contact Egholm Maskiner A/S directly. Also feel free to contact us with suggestions or requests for special implements and/or features for the machine.
