Egholm City Ranger 2250 Operator's Manual

Mulch mower / rotary mower 1600
Hide thumbs Also See for City Ranger 2250:

Advertisement

Quick Links

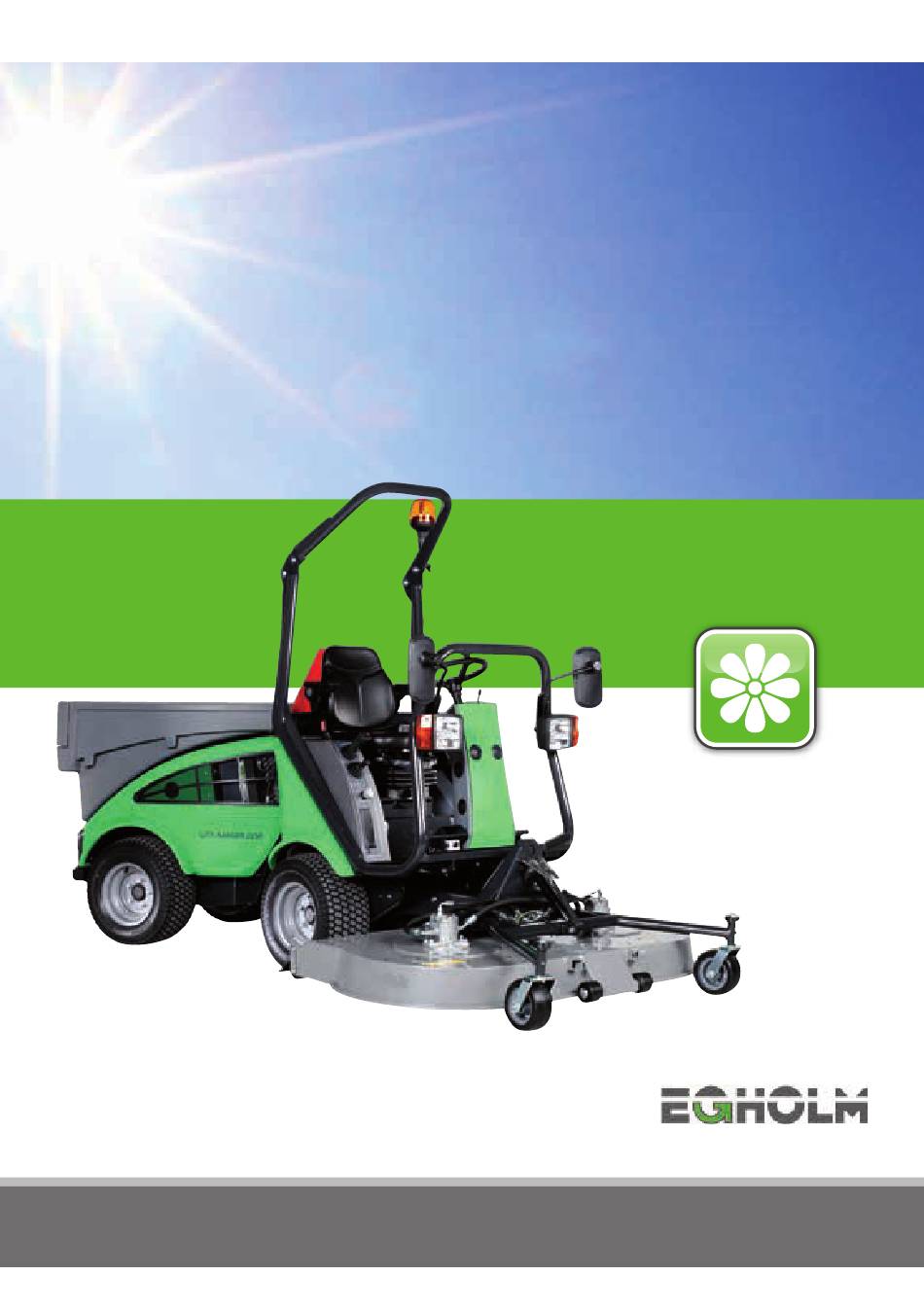

O
'
peratOr
s manual
MULCH MOWER /
ROTARY MOWER 1600
City Ranger 2250

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the City Ranger 2250 and is the answer not in the manual?

Questions and answers

Summary of Contents for Egholm City Ranger 2250

  • Page 1 ’ peratOr s manual MULCH MOWER / ROTARY MOWER 1600 City Ranger 2250...
  • Page 2 Dear Customer Thank you for choosing an Egholm product The City Ranger 2250 is a Danish designed and manufactured utility machine, which allows you to take a very flexible approach to maintaining outdoor areas. Optimal performance from your City Ranger 2250 mulch mower/rotary mower 1600 To ensure optimal performance from your City Ranger 2250 mulch mower/rotary mower 1600, please read this manual carefully before using the machine.
  • Page 3: Table Of Contents

    5.1 Spare parts - City Ranger 2250 mulch mower/rotary mower 1600 ......
  • Page 4: General Information

    Remove stones and branches from the lawn as they can be unintentionally thrown out and cause damage to people and property. Prevent people from standing in the working area. Warning label Operator’s Manual City Ranger 2250 Mulch mower/rotary mower 1600...
  • Page 5: Ec Declaration Of Conformity

    The machine: Mulch mower/Rotary mower 1600 22LM16 Type: · has been manufactured in conformity with the provisions of the Machinery Directive 2006/42/EU Place: Lemvig Date: Signature: Knud Olsen, Senior Engineer Operator’s Manual City Ranger 2250 Mulch mower/rotary mower 1600...
  • Page 6: Technical Data

    30-90 mm Performance/hour approx. 8,000-15,000 m²/h Ground clearance below mower 90 mm No. of mower blades 3 units Specifications may be changed without prior notice. Optional equipment 70301081 Mulch-kit for rotary mower Operator’s Manual City Ranger 2250 Mulch mower/rotary mower 1600...
  • Page 7: Operator's Manual

    5. Use the locking handle on the A-frame to lock the mower in place. (Picture 4). The locking handle can only be engaged when the engine has been switched off. Removal Follow the procedure for fitting in reverse order. Lift Locking Operator’s Manual City Ranger 2250 Mulch mower/rotary mower 1600...
  • Page 8: Before Start-Up

    2. Lower the rotary mower by moving the joystick down. (Picture 3) 3. Activate the weight distribution using the red button Joystick on the joystick. (Picture 4) The mower will now adjust to ground conditions. Weight distribution Operator’s Manual City Ranger 2250 Mulch mower/rotary mower 1600...
  • Page 9 Make sure no one is standing close to the machine while it is in use. When turning, the rear of the machine swings out so there is a risk of crushing or collision. Operator’s Manual City Ranger 2250 Mulch mower/rotary mower 1600...
  • Page 10: Adjustment

    1. Unscrew the winged nut. (Picture 4) 2. Turn the wheel to the hole that corresponds to the Height adjustment scale height required. 3. Retighten the winged nut. Rear support wheel – Winged nut Operator’s Manual City Ranger 2250 Mulch mower/rotary mower 1600...
  • Page 11: Tilt The Mower Up During Maintenance And Service Procedures

    Make sure that the lock falls into place when the mower is laid down. The frame can be carried on top of the mower, if it is placed upside down on the mower guard. Lock Lever Operator’s Manual City Ranger 2250 Mulch mower/rotary mower 1600...
  • Page 12: Service And Maintenance

    6. Avoid high pressure cleaning of the snap couplings. We recommend that you clean the mower immediately after operation to stop the grass sticking too firmly to the guard and blades. Operator’s Manual City Ranger 2250 Mulch mower/rotary mower 1600...
  • Page 13 Warning Blow the radiator clean with compressed air before washing the machine. Otherwise the dirt will not wash off. Wash the radiators with clean water Operator’s Manual City Ranger 2250 Mulch mower/rotary mower 1600...
  • Page 14: Maintenance

    This prevents the blades from falling off during operation. Direction of blade travel New blades and locking plates can be ordered from an authorised Egholm distributor. Operator’s Manual City Ranger 2250 Mulch mower/rotary mower 1600...
  • Page 15 When it is time to store the mower for the winter, the following steps are recommended: 1. Remove any loose paint and repaint any damaged areas. 2. Spray the mower with protective oil. Operator’s Manual City Ranger 2250 Mulch mower/rotary mower 1600...
  • Page 16: Conditions

    The warranty period for the materials and manufacture of this mulch mower/rotary mower is 12 months from the date of purchase. In case of faults or defects in the machine within the warranty period, Egholm will carry out the necessary repairs without charge for materials and working hours in accordance with the terms and conditions listed below.
  • Page 17: Complaints

    2. Remove the plastic and rubber parts and dispose of them in accordance with the applicable environmental legislation. 3. After the aforementioned parts have been removed, the machine is ready to be handed over to a local approved scrap merchants. Operator’s Manual City Ranger 2250 Mulch mower/rotary mower 1600...
  • Page 18: Spare Parts

    Spare parts 5.1 Spare parts - City Ranger 2250 mulch mower/rotary mower 1600 01604250 Fan belt 70301141 Blade set 01100300 Wheel 09724030 Rubber guard Operator’s Manual City Ranger 2250 Mulch mower/rotary mower 1600...
  • Page 19: Notes

    Notes Operator’s Manual City Ranger 2250 Mulch mower/rotary mower 1600...
  • Page 20 Egholm A/S Transportvej 27 DK-7620 Lemvig T. +45 97 81 12 05 F.+45 97 81 12 10 www.egholm.eu info@egholm.dk 70101231-01 EN...

This manual is also suitable for:

22lm16
