Egholm 2100 Operator's Manual

Flail mower/verticutter
Hide thumbs Also See for 2100:
Table of Contents

Advertisement

Quick Links

OPERATOR'S MANUAL
Flail Mower/Verticutter
90101351-02 UK

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2100 and is the answer not in the manual?

Questions and answers

Related Manuals for Egholm 2100

Summary of Contents for Egholm 2100

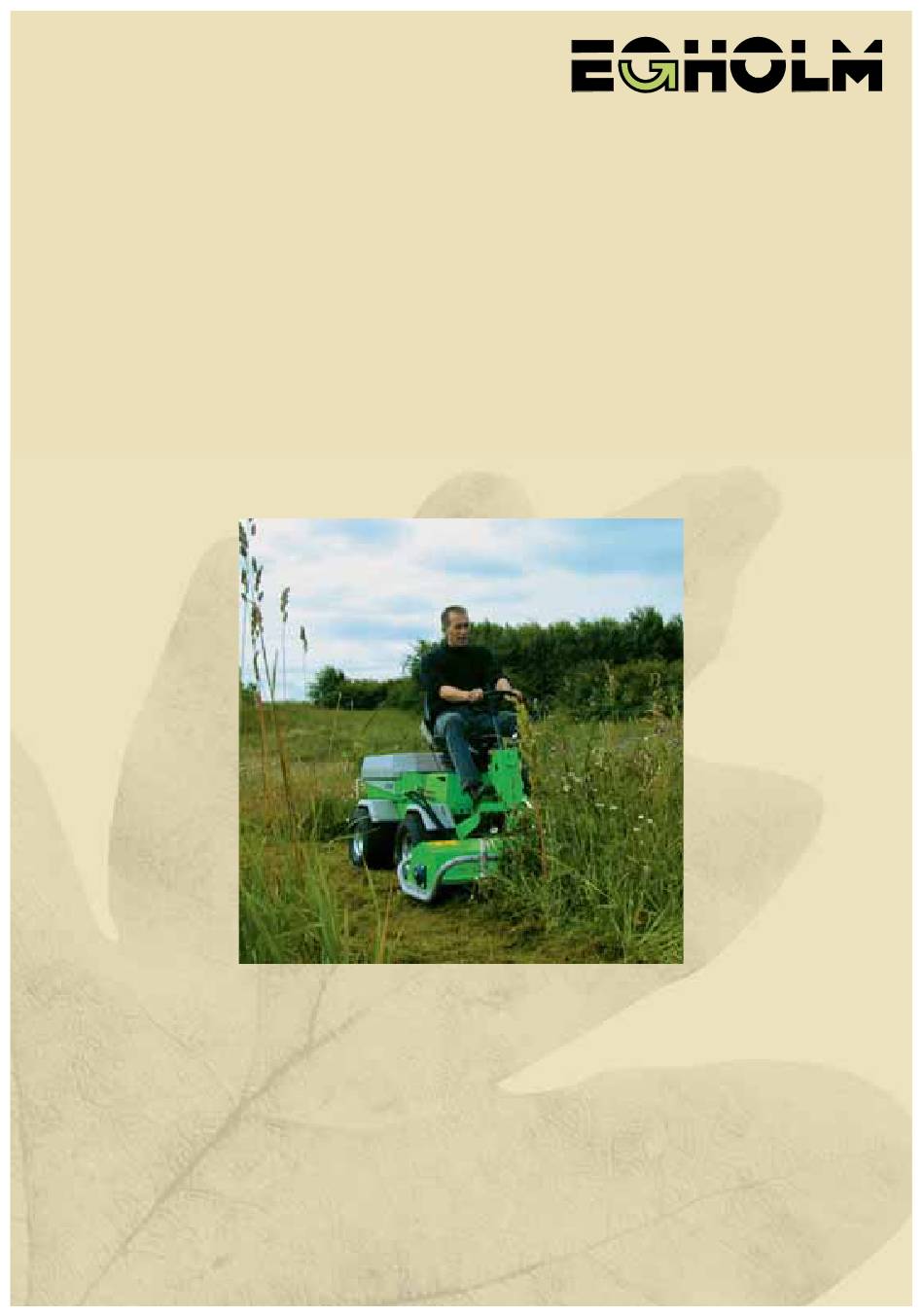

  • Page 1 OPERATOR’S MANUAL Flail Mower/Verticutter 90101351-02 UK...
  • Page 2 Reservations: As it is the Egholm policy to make continuous improvements, we reserve the right to alter the specifi- cations and equipment at any time without notice. Egholm Maskiner A/S accepts no liability for errors or shortcomings in the operator’s manual.

  • Page 3: Table Of Contents

    4.3 Disposal ........... . .17 1. General information The Egholm 2100 is perfect for cutting very high The Verticutter is fitted to the Egholm 2100 in a grass or for chemical-free weed-control of lawns. floating position and has four wheels to ensure the correct scoring depth.

  • Page 4: General Information

    1. General information 1.1 Safety Make sure no one is standing close to the machine. M M a a k k e e s s u u r r e e t t h h e e r r e e i i s s n n o o o o n n e e c c l l o o s s e e t t o o t t h h e e m m a a c c h h i i n n e e w w h h e e n n i i t t i i s s i i n n u u s s e e .
  • Page 5 1. General information Avoid roll-overs: D D o o n n o o t t d d r r i i v v e e t t h h e e m m a a c c h h i i n n e e i i n n a a p p l l a a c c e e w w h h e e r r e e i i t t c c a a n n s s l l i i d d e e , , t t i i p p o o r r r r o o l l l l .

  • Page 6: Ec Declaration Of Conformity

    - is in conformity with the provisions of the following EC directive: Directive 2000/14/EC The Egholm 2100 fitted with the cab FH 2100 (ROPS approved) - has been tested at the Danish Institute of Agricultural Sciences at Bygholm in conformity with directive 86/298/EEC concerning rear mounted, roll-over pro- tection structures of narrow-track wheeled agricultural and forestry tractors.

  • Page 7: Technical Data

    1. General information 1.3 Technical data Dimensions: Assembled: Storage dimensions: Length (L): 2895 mm 955 mm Width (W): 1475 mm 1475 mm Height without cab (H) 435 mm Height with cab (H1) 1935 mm Side view Technical data: Type description: Sound power level, re Directive 2000/14/EU.

  • Page 8: Assembly / Disassembly

    2. Operator’s manual 2.1 Assembly / Disassembly 1. It is recommended that the hydraulic hoses should be run over the frame of the mower to keep them clear and free from dirt when the mower is fitted. (Picture 1) 2. The locking handle on the A-frame of the basic machine must be in the open position.

  • Page 9: Important Before Start-Up

    2. Operator’s manual Fitting the counterweights: 1. Replace every second wheel bolt on both rear wheels with the bolts supplied, with an internal thread in the heads. (Picture 1) 2. Locate the counterweights on the wheel bolts and fasten them with the bolts supplied to a torque of 65 Nm.

  • Page 10: Start-Up

    2. Operator’s manual 2.3 Start-up A) Start the machine. (See the operator’s manual for the base machine, Section 2.2) B) Lower the mower by pushing lever A on the left- hand side of the machine down to position 2. (Picture 1) C) It is recommended to hold the lever down for about Lever A on the right-hand side 2 seconds, as after this the mower is in a floating...

  • Page 11: Adjustment

    2. Operator’s manual 2.4 Adjustment C C u u t t t t i i n n g g h h e e i i g g h h t t o o f f F F l l a a i i l l M M o o w w e e r r Adjusting rings Adjusting the cutting height (Flail Mower): Cutting height (mm)

  • Page 12: Service And Maintenance

    3. Service and maintenance 3.1 Cleaning Cleaning the cutter: A) Stop the machine. (See the operator’s manual for the base machine, Section 2.2) B) Remove the mower. (See Section 2.1) C) Tip the mower forward. (Picture 1) Mower tipped forward D) Clean the mower with water.

  • Page 13: Maintenance

    3. Service and maintenance 3.2 Maintenance Lubricating the bearings – checking and adjusting the drive belts: The rotor axle bearings must regularly (approx. every 50 hours of operation) be lubricated with good quali- ty lubricating grease. 1. Stop the machine and remove the guard which pro- Lubricate the bearing on the left-hand side tects the drive belts on the left-hand side of the cutter.
  • Page 14 . . The nuts m m u u s s t t be self-locking. New blades, nuts and bolts can be ordered from an authorised Egholm distributor. The vertical blades are fitted individually 1 1 4 4...
  • Page 15 3. Service and maintenance Winter storage: When it is time to store the mower for the winter, the fol- lowing steps are recommended: 1. Remove any loose paint and repaint any damaged areas. 2. Spray the mower with preservative oil. 1 1 5 5...

  • Page 16: Conditions

    Egholm Maskiner A/S has no control. The scope of warranty: 1) The Egholm warranty is only valid on presen- tation of the original receipt supplied with model description, serial number and date of purchase.

  • Page 17: Complaints

    Best regards Egholm Maskiner A/S - Transportvej 27 - DK -7620 Lemvig, telephone: +45 97 81 12 05, fax: +45 97 81 12 10 4.3 Disposal When – many years from now – your Egholm Flail Mower/Verticutter comes to the end of its working life, it should be disposed of in a responsible manner and conform with the relevant disposal regulations.
  • Page 18 Notes 1 1 8 8...
  • Page 19 Notes 1 1 9 9...
  • Page 20 Egholm Maskiner A/S * Transportvej 27 * DK-7620 Lemvig Tel.: +45 97 81 12 05 - Fax: +45 97 81 12 10 www.egholm.dk * egholm@egholm.dk...
