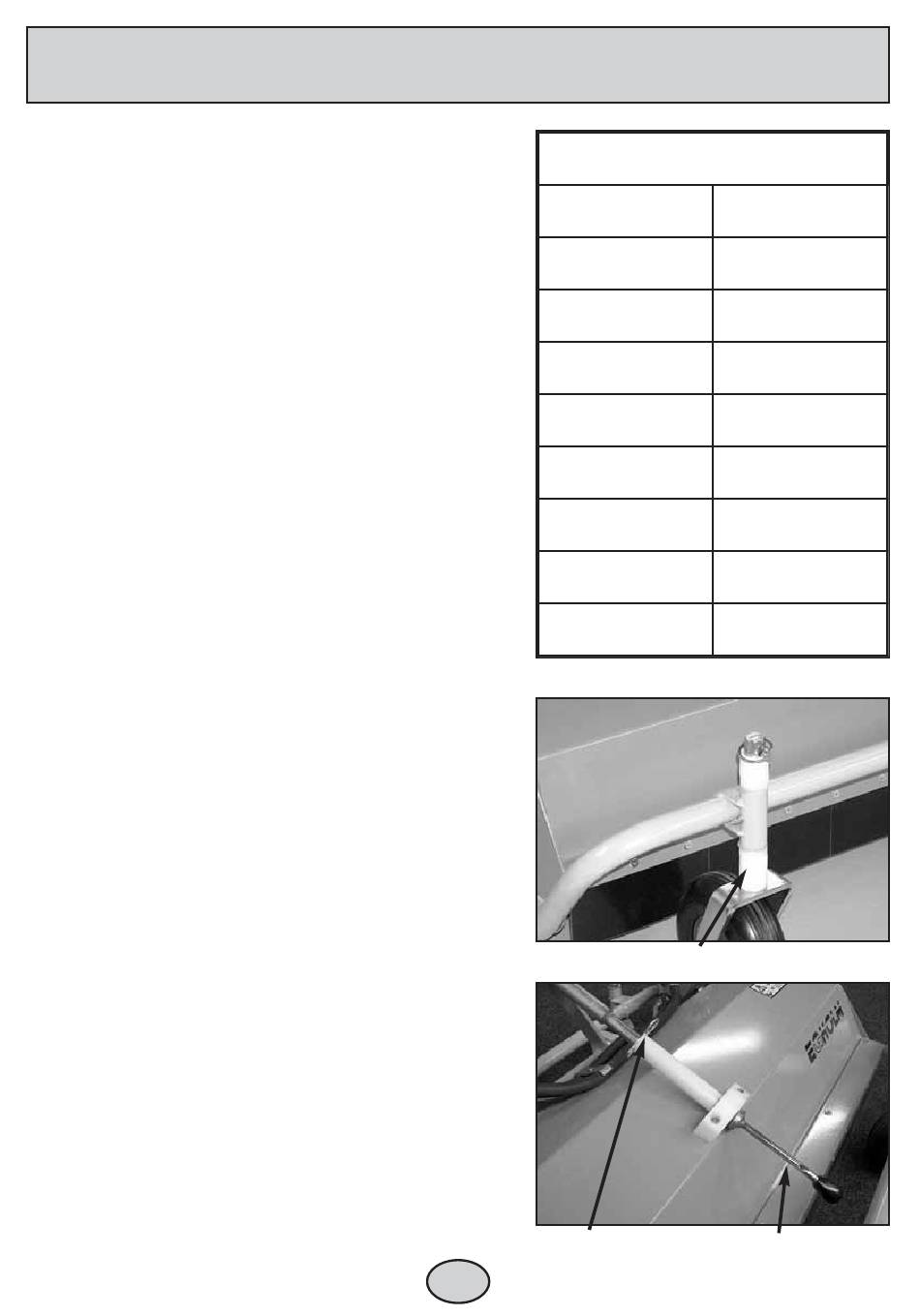

2.4 Adjustment
Adjusting the cutting height (Flail Mower):
Adjust the cutting height as follows:
1) Stop the machine and disconnect the hydraulic hoses.
2) Rough adjustments are made with the 7 adjusting
rings in the interval 0-110 mm (see table).
Remove the locking ring, take off the wheel and
place the required number of adjusting rings
between the wheel and the mower bracket (the
same number on both front wheels). (Picture 1).
For example, 4 adjusting rings between the wheel
and the mower bracket allow the mower to be finely
adjusted to a height of between 25 and 78 mm.
3) Fine adjustment is made with the stepless adjust-
ment handle, which adjusts the height of the rear
edge of the mower.
4) For very tall grass, the mower should have a bigger
opening at the back, big enough to eject the grass
without squeezing it into clumps. (Picture 2)
In other words it is an advantage to use as few adjusting
rings as possible to achieve the required cutting height.
Adjusting the scoring height (Verticutter):
Adjust the depth of the Verticutter as follows:
1) Stop the machine and disconnect the hydraulic
hoses. Remove the locking ring, take off the wheel
and place the required number of adjusting rings
between the wheel and the mower bracket (the
same number on both front wheels) to achieve the
required scoring depth. We recommend a depth of
between 5 and 10 mm.
2) For vertical cutting, the R-cotter pin must be
removed so that the mower is in floating position, as
this ensures an even depth and results in an even
and thorough treatment of the lawn. (Picture 2)
2. Operator's manual
C C u u t t t t i i n n g g h h e e i i g g h h t t o o f f F F l l a a i i l l M M o o w w e e r r
Adjusting rings
(number)
0
1
2
3
4
5
6
7
1 1
1 1
2 2
2 2
R-cotter pin
1 1 1 1
Cutting height (mm)
0 - 50
3 - 58
11 - 63
18 - 70
25 - 78
33 - 95
40 - 103
47 - 110
Adjusting rings
Fine adjustment handle
