17. SPARE PARTS

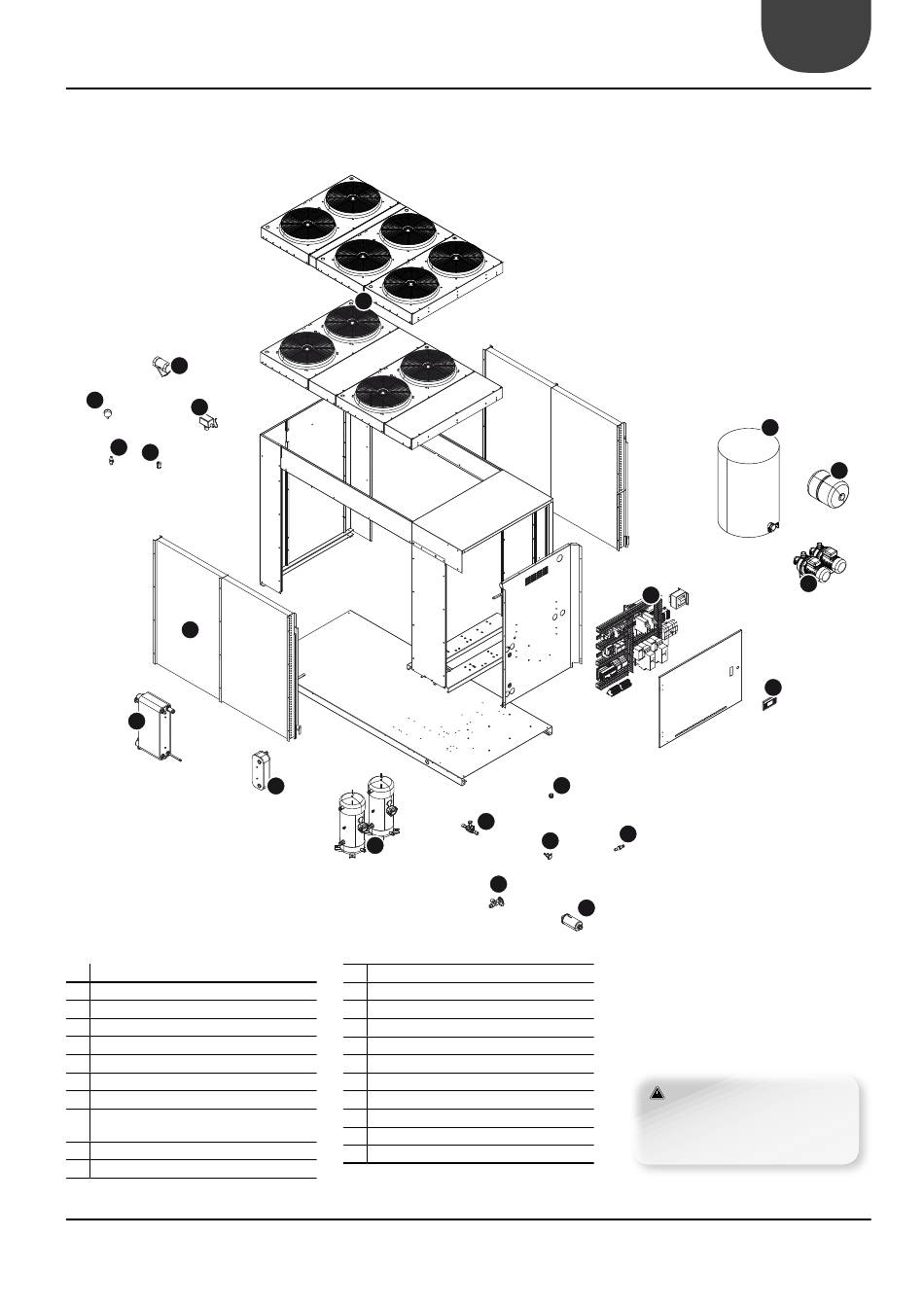

ANL 290-300-340-400 COOLING ONLY
11
16
15
7
17
18
2
LEGEND
1. Compressor
2. Plate heat exchanger
3. Thermostatic expansion valve
4. Filter drier
5. Solenoid valve
6. Hot gas injection valve
7. Safety valve
8. Unidirectional valve only for versions
(02-04 / P2-P4)
9. Liquid sight glass
10. Desuperheater (optional)
18.03. 5719210_03
19
10
1
11. Water filter
12. Pump(s) (optional)
13. Expansion tank (standard with hydronic module)
14. Buffer tank (optional)
15. Flow switch
16. Gauge
17. Air vent
18. Finned condenser coil
19. Fan assembly
20. Electrical panel
21. MODU_CONTROL interface
20
9
5
8
6
3
4
19. Fan assembly:
• ANL 290-300-340 (4 fans).
• ANL 400 (6 fans).
