EN
(fig.1)

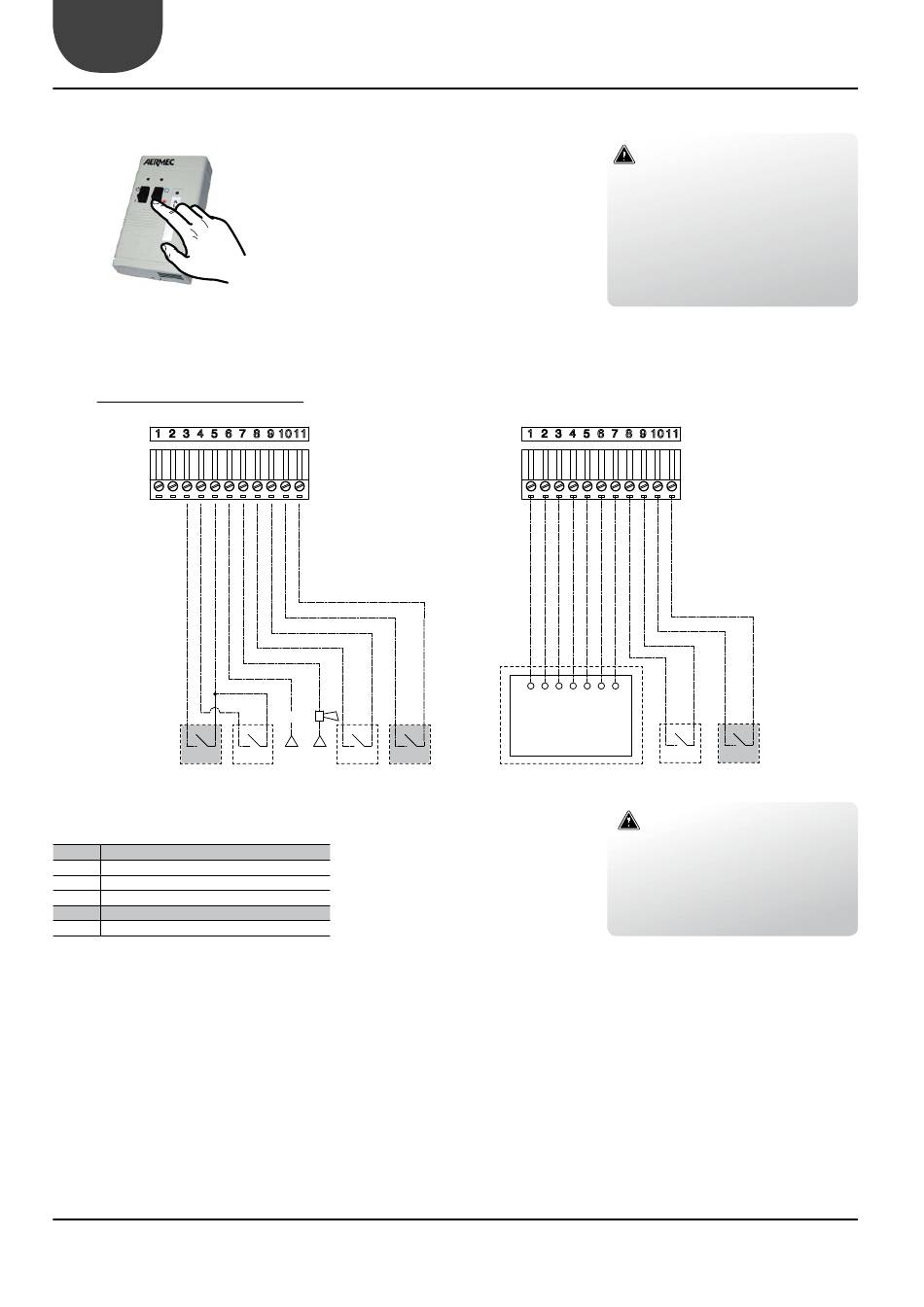

9.4. AUXILIARY CONNECTIONS BY THE
INSTALLER
C/F
LEGEND:
C/F Heat / Cool Control (ANL-H heat pump only)
IA Auxiliary switch
AE External alarm
TRA Ambient thermostat
TWS Domestic hot water thermostat (ANL-H heat pump)
PR3 Remote control panel (Accessory)
20
AE
IA 230V TRA TWS
MAX 1A
WARNING
The first start-up must be made with stand-
ard settings; only after commissioning vary
the operating setpoints.
Before commencing with the start-up power
up the unit for at least 12 hours placing the
circuit breaker and the door interlocked
isolator in the ON position. Ensure that the
control panel is off.
1 2 3 4 5 6 7
PR3
TRA
WARNING
For the installation refer to the electrical wiring
schematics provide with the unit. The electrical
wiring schematic and manuals must be carefully
conserved and made AVAILABLE FOR FUTURE
REFERENCE.
ANL / 290-650
TWS
18.03. 5719210_03
