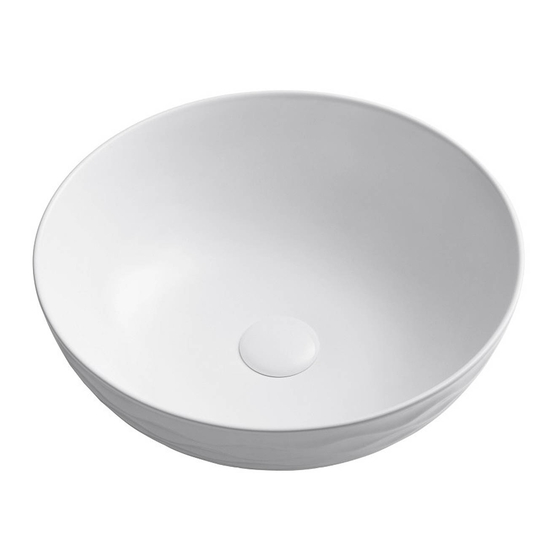

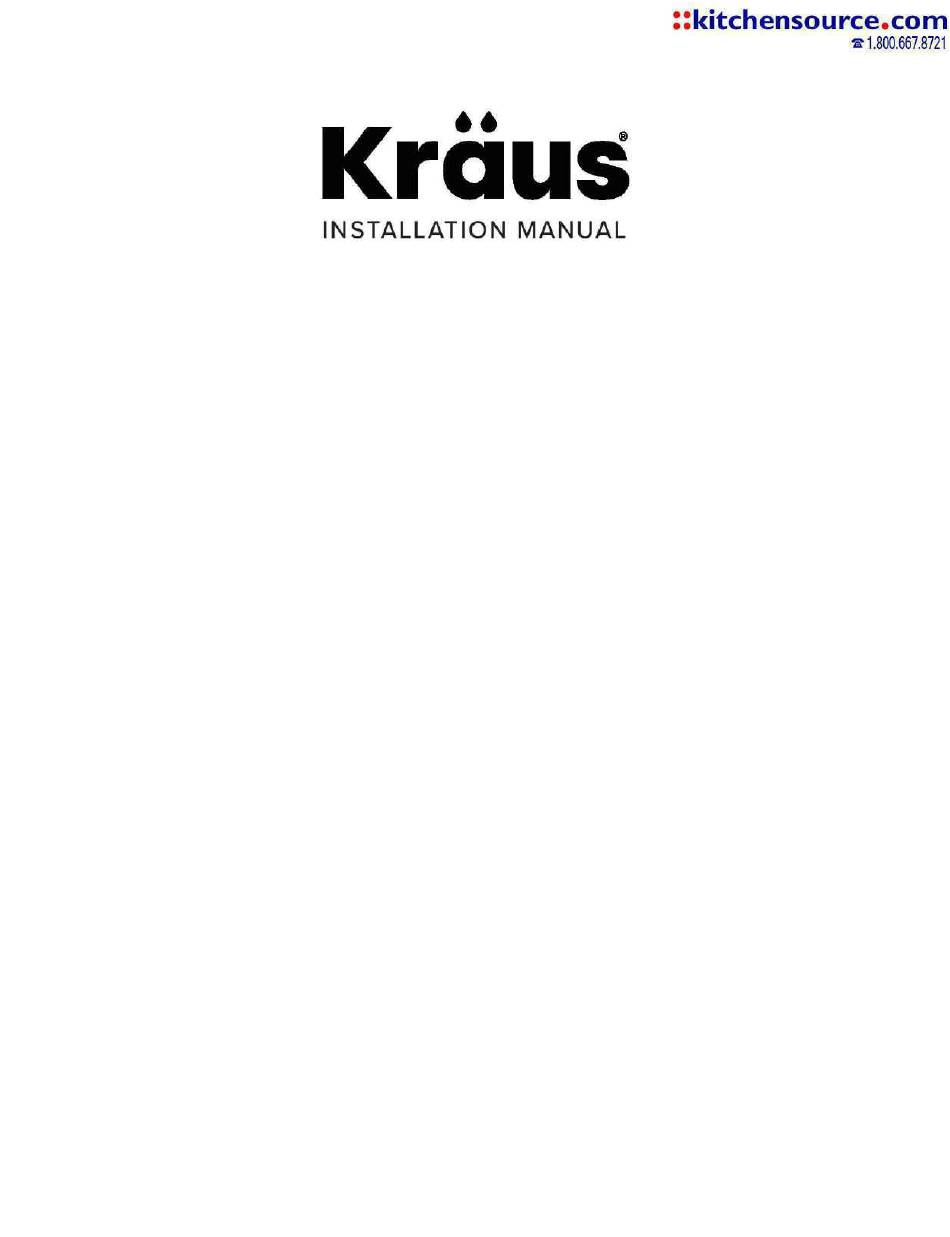

- Page 1 Viva Series Ceramic Vessel Bathroom Sink KCV-200 / KCV-201 / KCV-202 / KCV-203 / KCV-204 / KCV-205...
-
Page 2: Prior To Installation
Please consult with a professional when installing The step-by-step guidelines in the installation instructions are a general reference for installing a Kraus Sink. Should there be any discrepancies, Kraus cannot be held liable. It is recommended to install all Kraus products by hiring a licensed professional. - Page 3 Tools you will need: Safety Goggles Drill Silicone Adhesive 4" Hole Saw Pencil Tape Measure Dimensions 1 3/4" 1 3/4" Ø 16 1/2" Ø 15 3/4" 5 1/2" 4 3/4" KCV-200 KCV-201 16 1/2" x 5 1/2" 15 3/4" x 4 3/4"...
- Page 4 Dimensions 15 5/8" 1 3/4" 1 3/4" 15 5/8" Ø 16 1/2" 5 1/8" 4 3/8" KCV-202 KCV-203 15 5/8" x 15 5/8" x 5 1/8" 16 1/2" x 4 3/8" 1 3/4" 1 3/4" Ø 13" Ø 15 3/4" 4 3/8"...
- Page 5 1. Mark Faucet and Drain Hole Location · Place sink in desired location on countertop and mark drain hole and faucet hole centerline with a pencil. NOTE: Make sure clearance is suitable for backsplash, faucet and sink plumbing NOTE: Please allow a minimum of 3 1/2" from wall to edge of sink for faucet placement clearance 2"...
- Page 6 2. Drill Countertop · Cut the drain opening in the countertop by carefully placing the 4" hole saw on the area marked by pencil. 3. Apply Silicone · Check the alignment of the sink to the opening in the countertop. Use a bead of clear silicone (or preferred adhesive) around the underside of the sink.
- Page 7 4. Install Sink · Carefully place the sink on the countertop, align and press firmly · Allow sealant to set for 30 - 60 minutes NOTE: Use acetone or rubbing alcohol to remove any excess sealant immediately after application 5. Install Plumbing Fixtures ·...
