Summary of Contents for Kraus Oren KPF-2252

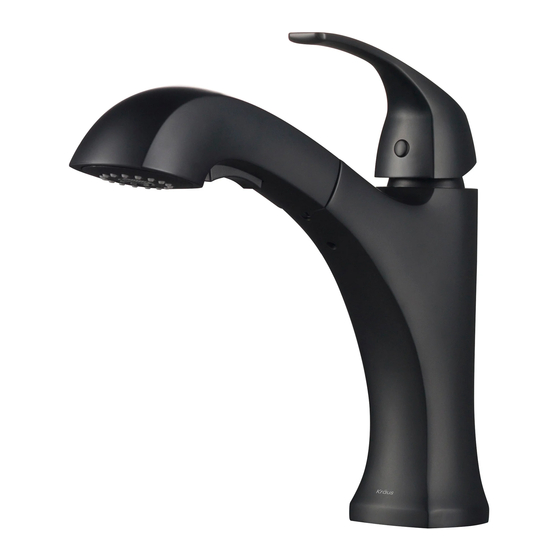

- Page 1 INSTALLATION MANUAL Oren Single Handle Kitchen Faucet KPF-2252 www.kraususa.com Toll Free: 1.800.775.0703 © 2018 Kraus USA Inc. REV. January 9, 2020...
- Page 2 Congratulations on the purchase of your new Kraus plumbing fixture! Please keep the box and packaging materials until your product is completely installed. If you have any questions, require technical assistance or have any problems with your product: STOP DO NOT RETURN TO STORE Please contact our Customer Service Team 1-800-775-0703 / customerservice@kraususa.com...
-
Page 3: Prior To Installation
Prior to Installation: · Make sure you have all necessary parts by checking the diagram and parts list. If any part is missing or damaged, please contact Kraus Customer Service at 800-775-0703 for a replacement. · Turn off the hot and cold water supply at the angle stops and turn on the old faucet to release any built up pressure. - Page 4 Diagram and Parts List 1. Spray Head 2. Faucet Body 3. Mounting Hardware A. Rubber & Metal Washer B. Mounting Nut C. Mounting Screws 4. Quick Connector 5. Hot & Cold Waterlines 6. Spray hose 7. Weight 8. Hex Wrench...
- Page 5 Faucet Dimensions 10 1/4” 262mm 9 1/4” 8 1/8” 207mm 6 1/4” 2 1/4” 2 1/4” 58mm 58mm 1 3/8” ~1 1/2” 35~38mm 3/8" Compression Installer Tip: Shut off main water supply before installing new faucet.
- Page 6 Step 1A. Faucet installation - with deck plate For three-hole installation: Deck plate, base plate (see below), and silicone sealant (optional) are required. Note: optional deck plate not included Step 1B. Faucet installation - without deck plate For single-hole installation: Deck plate, base plate and silicone sealant are NOT required.
- Page 7 Step 2. Install faucet and mounting hardware Insert faucet body (2) into hole in countertop or deck plate assembly. Install mounting hardware (3A, B &C) from underneath the countertop. NOTE: The white dot on the base of the faucet should be facing forward.
- Page 8 Step 4. Attach spray hose and counterweight Connect spray hose (6) to quick connector (4) attached to supply line. Install weight (7) on lowest vertical point on spray hose (6). Step 5. Connect waterlines Connect waterlines (5) to angle stops. Tighten both ends of waterlines with a wrench until snug.
- Page 9 Step 6. Flush spray hose Remove spray head (1) from spray hose (6). Hold tip of spray hose (6). Turn faucet on and let the water run for 60 seconds to flush any debris. Step 7. Check for leaks Check for leaks at the connections.
-
Page 10: Replacement Parts
Replacement Parts Replacement Parts List Finish/Color Part # KP06002 CH,SFS,MB* Metal Handle KP06055 Set Screw KP06030 Handle Button CH,SFS,MB* KP06020 Cartridge Cover CH,SFS,MB* KP06018 Locking Nut KP06100 Cartridge KP06097 Spray Hose CH,SFS,MB* KP06045 Hose Guide KP06090 CH,SFS,MB* Spray Head KP06104 10. -
Page 11: Troubleshooting
Troubleshooting If you have followed the instructions carefully and your faucet still does not work properly, take the following corrective steps: PROBLEM CAUSE ACTION Leakage under faucet handle Locking nut has come loose or Remove button located at top of handle. cartridge needs to be reseated. - Page 12 Maintenance - Cartridge Replacement Step 1: Remove button located at the top of the handle. Loosen the set screw with a hex wrench. Remove the handle and unscrew cartridge cover by hand. Step 2: Unscrew the locking nut with an adjustable wrench. Remove ceramic disc cartridge.
- Page 13 Any product reported to the authorized dealer or to Kraus as being defective within the warranty period will be repaired or replaced with a product of equal value at the option of Kraus. This warranty extends to the original owner or end-user, and is not transferable to a subsequent owner.
- Page 14 This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. KRAUS USA has the right to change, modify, and/or update the warranty policy at any time. For the latest, most up to date comprehensive warranty, go to www.kraususa.com/warranty...
- Page 15 IMPORTANT Register Your Kraus Product Activate Your Warranty Access Premium Customer Support Get Product Information REGISTER TODAY http://www.kraususa.com/registration www.kraususa.com...
