Kraus KPF-1610 Installation Manual

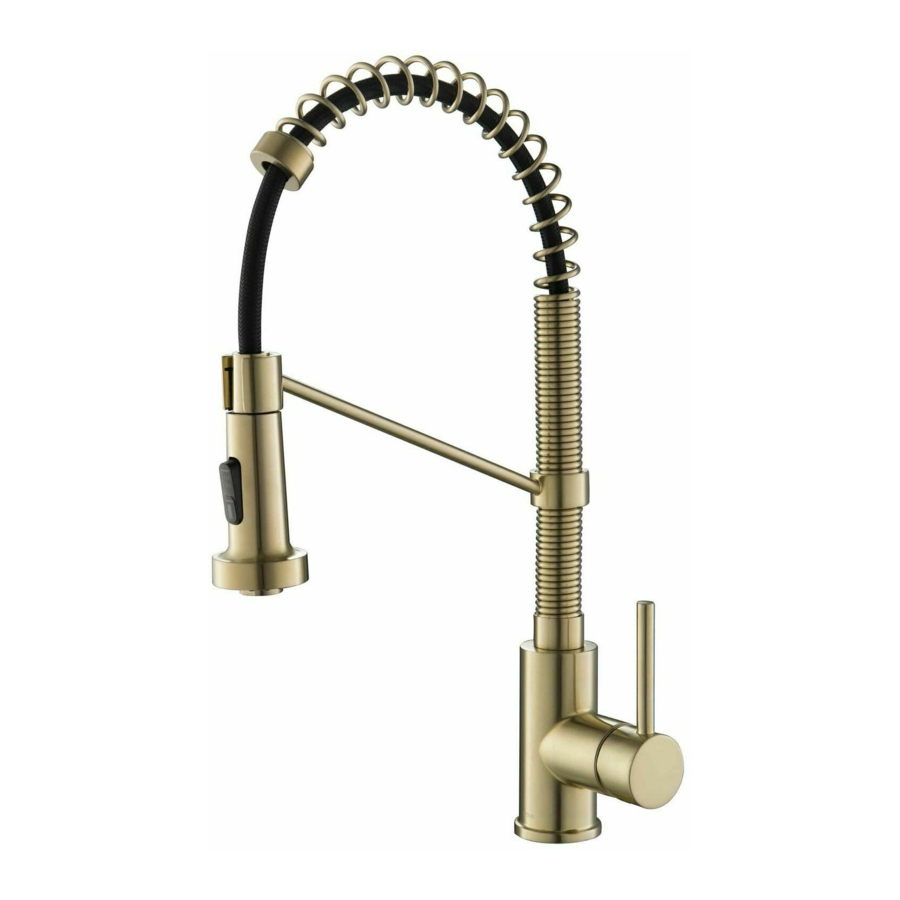

Single handle commercial kitchen faucet
Hide thumbs Also See for KPF-1610:

Advertisement

Quick Links

Download this manual
I N S TA L L AT I O N MA N UA L
Bolden
Single Handle
™
Commercial Kitchen Faucet
KPF-1610
