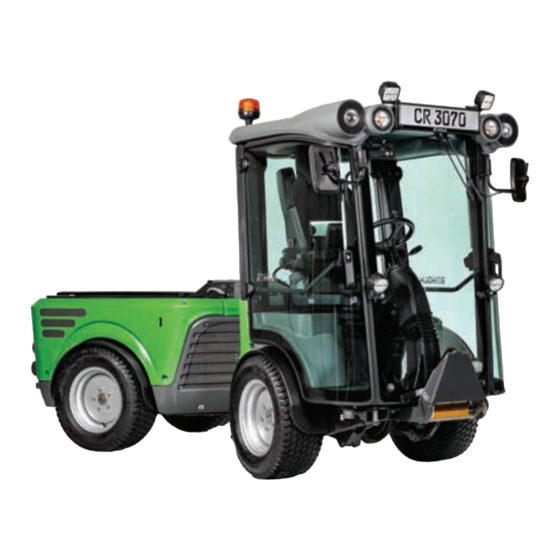

Egholm City Ranger 3070 Operator's Manual
  1. Manuals
  2. Brands
  3. Egholm Manuals
  4. Utility Vehicle
  5. City Ranger 3070
  6. Operator's manual

Egholm City Ranger 3070 Operator's Manual

Basic machine
Hide thumbs Also See for City Ranger 3070:
Table of Contents

Advertisement

Quick Links

Download this manual
Operator´s
manual
Basic machine
City Ranger 3070

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the City Ranger 3070 and is the answer not in the manual?

Questions and answers

Related Manuals for Egholm City Ranger 3070

Summary of Contents for Egholm City Ranger 3070

  • Page 1 Operator´s manual Basic machine City Ranger 3070...
  • Page 2 Failure to do so can result in personal injury and damage to the machine. Safety The City Ranger 3070 is equipped with various devices to ensure optimal operational safety both for the user and their surroundings. We ask you to pay particular attention to section 1.1 Safety.

  • Page 3: Table Of Contents

    3.1 City Ranger 3070 service and maintenance chart ....... . .
  • Page 4 Introduction...

  • Page 5: Introduction

    Further, it provides you with a very fast and easy quick change system, which save you a lot of time. The City Ranger 3070 can be equipped with a full range of tailor made quality attachments - fully integrated and designed to work with the machine - ensuring high performance in every task.
  • Page 6 General information...

  • Page 7: General Information

    Otherwise doors and windows must be opened to allow fresh air inside. Operator’s Manual City Ranger 3070...
  • Page 8 Other hazards There may be other circumstances and situations than those mentioned above where it may be dangerous to use the City Ranger 3070. Take care while handling potentially dangerous products • Do not smoke when filling up. • Do not spill diesel on the engine, the mechanical parts or the vehicle body.
  • Page 9 Operation instructions Cooling fan - Always watch out for the traffic while operating the machine. - The City Ranger 3070 belongs to the category of public work vehicles. This vehicle should not be used for the transport of humans or goods.

  • Page 10: Attachments

    There is an operator’s manual for each attachment. Operation with these attachments must follow the instructions outlined in the relevant operator’s manual. Do not operate the City Ranger 3070 with the attachment unless all instructions have been followed. Operator’s Manual City Ranger 3070...

  • Page 11: Ec Declaration Of Conformity

    Unless otherwise agreed in writing between the operator, customer and Egholm, Egholm is the data originator (data originator) of all data generated by the machine and attachments during use.

  • Page 12: Technical Data

    Wide tyre: Extra comfort 235/60R16 -Tyre pressure 4,75 bar Grass/Turf tyre: Extra comfort & lower ground pressure 27x10.50-15 -Tyre pressure (BKT) Max. 6,4 bar Winter tyre for snow chains: Winter (M+S*) 195/70 R15 -Tyre pressure (Nexen) 4,85 bar Operator’s Manual City Ranger 3070...
  • Page 13 Refer to the engine operator’s manual for further technical data. * If the City Ranger 3070 has to operate in ambient temperatures below -15°C (5°F), you must warm up the machine slowly and change the hydraulic oil. See oil type in the section Service and Maintenance, Hydraulic oil.
  • Page 14 Hydrostatic braking Driving Speed forward Max. 40 km/h (25 mph) Speed rearward Max. 10 km/h (6 mph) Air conditioning Gas R 134a 425 g Oil SP10 * for high/low temperatures the data should be reviewed. Operator’s Manual City Ranger 3070...
  • Page 15 Both seats are approved according Directive 78/764/EEC. Cabin Falling Object Protective Structure - FOPS The City Ranger 3070 and its attachments do not operate when falling objects are a risk. Roll-Over Protective Structure - ROPS Tested according to Regulation (EU) 1322/2014 annex X, and fulfills OECD Code 7.

  • Page 16: Access To Cabin

    Attention Keep the cabin free of loose items that may interfere with safe operation of the machine. Always store items in the storage box. (Picture 4) Internal door handle Storage box (with cooling possibility) Operator’s Manual City Ranger 3070...

  • Page 17: Controls

    In this chapter the controls and their functionalities are described. Arm rest controls Armrest 1. Display. 2. Right joystick. 3. Keypad 1. 4. Direction switch (Forward, Parking, Reverse), (See 1.6 Controls, page 17). 5. Keypad 2. 6. Left joystick. Operator’s Manual City Ranger 3070...
  • Page 18 2. Light switch (see Section 1.8). 3. Steering wheel. 4. Hazard light (see Section 1.8). 5. Ignition key. Floor pedals (Picture 2) (see Section 1.8). 1. Drive pedal. 2. Inch/brake pedal. 2. Inch/brake pedal 1. Drive pedal Operator’s Manual City Ranger 3070...
  • Page 19 4. Windscreen wiper. Rotate one step for interval. Rotate 2 steps for full speed. (Picture 3) Multifunction switch Attention Always ensure that washer fluid tank contains enough to satisfy the need for the trip. Beware that washer fluid does not freeze. Operator’s Manual City Ranger 3070...
  • Page 20 If the operator leaves the machine the engine is automatically stopped after 2 seconds for safety reasons. To disable work hydraulics press the Work Mode button briefly. To disable Work Mode completely press the button for 2 seconds. Operator’s Manual City Ranger 3070...
  • Page 21 3rd level is the fastest. Using a low level renders the drive pedal less sensitive which makes the machine easier to control for low speeds. Only possible in Work Mode. 9. Resume Press to resume cruise control. 10. Option A Depending on the attachment. See attachment manual. Operator’s Manual City Ranger 3070...
  • Page 22 Only disable when the noise is unacceptable and it is safe to disable. 4. Work light rear (Option) Press to turn work light in the rear of the machine. 5. Beacon light (Option) Press to activate beacon light. 6. Loading light (Option) Press to activate loading light. Operator’s Manual City Ranger 3070...
  • Page 23 9. Heat decrease Press to decrease cabin heat. 10. Air condition Press to activate the air condition. If the cabin fan is off before activating the air condition, the cabin will automatically be set to level 1. Operator’s Manual City Ranger 3070...

  • Page 24: Alarm Lights And Monitoring Indicators

    Operation is not recommended if the needle enters the red area. 2. Diesel fuel level. 3. Vechicle speed. 4. Transmission status. F=forward, P=parking and R=reverse. 5. Cabin heat indicator. 6. Time. 7. Engine speed gauge. Operator’s Manual City Ranger 3070...
  • Page 25 3. Information (Picture 4) The information menu contains information about software versions and hours of operation. The timer can be reset. To find more information about the grey, green, and white service selection consult the attachment manuals. Operator’s Manual City Ranger 3070...
  • Page 26 This signal lamp turns on when the engine control unit detects an error. Working must be interrupted immediately and the machine driven to an authorized repair shop. When the amber warning light is turned on, you will hear 1 second beep. Operator’s Manual City Ranger 3070...
  • Page 27 15. Oil pressure alarm Indicates if there is low oil pressure on the engine. If the alarm appears, drive to the side of the road and stop the engine. Call Egholm service technician for help. 16. Steering pressure sensor Indicates if there is no steering pressure. If this alarm appears with the engine ON, the steering is faulty and a Egholm service technician must be called for help.

  • Page 28: Other Controls

    (Picture 3) Attention Test brakes on daily basis. City Ranger 3070 does not freewheel and sudden deacceleration occurs if the drive pedal is released rapidly. Storage box (with cooling possibility)

  • Page 29: Electrical Components

    ACTUATOR ACTUATOR FRONT/REAR FORWARD VCU & DISPLAY & RIGHT TRAILER SUPPLY Turn Signal Timer Relay FUEL PUMP Below seat GR.4 GR.3 Fan low Fan mid Fan high 7,5A GR.3 GR.2 GR.1 GR.2 Cabin power box Operator’s Manual City Ranger 3070...
  • Page 30 Turn Signals Work Light Left Position Light Left Work Light Right Position Light Right Wiper License Plate Sensor (Tachometer, Engine inlet Position Light A & B-frame air filter & Trailer plug switch) ECU Cranking Signal Operator’s Manual City Ranger 3070...
  • Page 31 Stop Light Trailer Fuel Pump VCU & Display Supply Wiper Supply Relay A/C Compressor Actuator Forward Actuator Reverse Actuator Front/Rear Digital Output Rear Wiper Timer Relay Flasher Relay Fan Speed low Fan Speed middle Fan Speed high Operator’s Manual City Ranger 3070...
  • Page 32 Clamp the battery so it is well fixed and put on the terminal protection covers. Access to: Battery compartment MAIN RELAY GROUP 3 Group 1 Group 2 Glow (VALVES) Plugs Main MAIN ECU MAIN RELAY RELAY GROUP 2 100A (LIGHTS) Group 3 Fuses and relays Operator’s Manual City Ranger 3070...
  • Page 33 (Picture 1) Wait min. 60 sec. after the engine is stopped before turning off the main switch. Warning Under no circumstances should the Main Switch main switch be used during normal engine operation. Operator’s Manual City Ranger 3070...

  • Page 34: Driver´s Seat

    Release the handle (5) to adjust the position of the steering column. The foot pedal is used to tilt the steering column for easy access to the City Ranger 3070 (6). (Picture 4) Attention Never drive without fastened seat belt.

  • Page 35: Heating And Air Condition

    NB: To speed up the demisting of the windscreen, ensure that all nozzles located under the roof are fully open and directed at the windscreen. Turn on the AC and heat for fastest demisting nozzles roof front Nozzles roof rear Operator’s Manual City Ranger 3070...

  • Page 36: Trailer (Option)

    General information 1.12 Trailer (Option) When the City Ranger 3070 is equipped with the approved coupling class A50-X,” the following trailers can be connected: • Trailers without brakes max. 750 kg. • Gross vehicle weight with trailers without brake (vehicle + trailer + trailer load) max. 3.000 kg.

  • Page 37: Towing

    General information 1.13 Towing Warning The City Ranger 3070 is a vehicle with a hydrostatic transmission. Avoid towing the machine for long stretches and at slowest possible speed, max.5 km/h (3.1 mph). Warning Front Towing device Release the parking brake before towing.

  • Page 38: Mounting An Attachment

    C-coupling. (Picture 3) Attention With a heavy attachment at the front of the City Ranger 3070 (eg: mower, snow sweeper), always drive carefully and take into account that there is a loss of grip on the rear wheels.
  • Page 39 Operator´s manual...

  • Page 40: Operator's Manual

    The hydrostatic transmission is automatically adjusted to fit working with attachments. If the operator leaves the machine the engine is automatically stopped after 2 seconds for safety reasons. Operator’s Manual City Ranger 3070...

  • Page 41: Manuel Mode

    • A hopper is mounted and selected in display. Manual mode button • The machine is set in parking. • Parking brake is active and without errors. Verify that the parking symbol is shown in the display. Operator’s Manual City Ranger 3070...

  • Page 42: Daily Checks Before Start-Up

    • Check if anything is out of the ordinary. • Greasing points: see 3.7 Lubrication, page 56, greasing recommended at least every 50 hour. Attention Do not start up if the machine fails any of the above checks. Consult authorized service technician. Operator’s Manual City Ranger 3070...

  • Page 43: Cleaning And Checking After Each Use

    • Do not use high pressure washing on the cabin sealings, under the roof and around the doors. Recommendation Clean the machine on a regular/daily basis. Store tools and auto shampoo. Dose auto shampoo as described on the bottle. Operator’s Manual City Ranger 3070...

  • Page 44: Fuel Filling

    • Do not spill diesel oil. • Do not smoke. Fuel level is shown on the fuel gauge in the display. The fuel tank cap is located on the left hand side. Open it using the proper key. (Picture 1) Operator’s Manual City Ranger 3070...

  • Page 45: Start, Drive And Stop

    3070. • Do not drive on a gradient steeper than 20°. • Always drive carefully. • Do not forget that the City Ranger 3070 is a relatively high and narrow vehicle. Turning should therefore be done at a low speed.
  • Page 46 Operator’s manual 2.7 Start, drive and stop - continued Starting and driving the City Ranger 3070 1. Put the Direction switch in the Parking position. If start is attempted in forward or reverse, it is necessary to turn the key to off position and wait for 5 seconds before another attempt is made.
  • Page 47 2.7 Start, drive and stop - continued Turning off the City Ranger 3070 • Put the Direction switch in P-position. • Turn off the City Ranger 3070 by turning the ignition key back to the key-release position (counterclock-wise). • When the key is in key-release position, the key Parking brake can be removed.

  • Page 48: Engine Warm-Up

    2.8 Engine warm-up Warm-up instructions • Do not attempt to start the City Ranger 3070 when the temperature is below -20°C. • Start the engine. • The pumps start up with the diesel engine and must be operated for at least 10 minutes at the engine idling speed in order to ensure self-lubrication.

  • Page 49: Transporting The City Ranger 3070

    Operator’s manual 2.9 Transporting the City Ranger 3070 To transport the vehicle, cross the restraint straps and attach them to the two transport securing rings and the trailer hitch of the vehicle. (Picture 1+2+3+4) Attention • Remember to secure doors, panels etc.
  • Page 50 Service and maintenance...

  • Page 51: Service And Maintenance

    Service and maintenance 3.1 City Ranger 3070 service and maintenance chart We recommend that service and maintenance procedures are carried out by authorised Egholm dealers. t Clean n Lubricate m Check l Replace Operation Service schedule 2000 3000 Daily 50 h 250 h 500 h 1000 h 1500 h yearly See §...
  • Page 52 Service and maintenance 3.1 City Ranger 3070 service and maintenance chart - continued We recommend that service and maintenance procedures are carried out by authorised Egholm dealers. t Clean n Lubricate m Check l Replace Operation Service schedule 2000 3000...

  • Page 53: Engine Oil

    Engine oil check Dipstick 1. Park the City Ranger 3070 on a level surface. 2. Wait for at least 10 minutes after stopping the engine in order to allow the engine oil to return to the oil tank.
  • Page 54 Engine oil filler cap 1. Park the City Ranger 3070 on a level surface. 2. Open the filler cap. (Picture 1) 3. Remove the oil drain plug in order to allow the oil to drain in a drain pan.

  • Page 55: Hydraulic Oil

    (Picture 3) Black line Red line 2. If necessary fill the hydraulic oil tank. Dismount right side cover. Unscrew the cap, and pour in hydraulic oil while observing the level glass. (Picture 2+4) Hydraulic filling cap Operator’s Manual City Ranger 3070...
  • Page 56 Service and maintenance 3.3 Hydraulic oil - continued Change of hydraulic oil 1. Park the City Ranger 3070 on a level/even surface. 2. Remove the oil drain plug in order to allow the oil to drain in a drain pan. (Picture 1+2) 3.

  • Page 57: Coolant

    (Picture 1) 2. An engine coolant alarm appears if the coolant level is too low. (See section 1.17) 3. To adjust the level, unscrew the coolant tank cap and fill up the coolant tank. (Picture 2) Operator’s Manual City Ranger 3070...
  • Page 58 5. Put back the radiator cap. 6. Turn on the engine and let it idle for a few minutes to reach the operating temperature 70- 80°C. If the coolant level alarm appears, top up. Attention Hot water. Operator’s Manual City Ranger 3070...

  • Page 59: Brake Fluid

    • To add windscreen washer liquid, unscrew the cap. • Only use washer liquid that have frost protection properties. Attention Windscreen washer liquid Used Windscreen washer liquid is to be delivered at an approved waste disposal facility or site. (see Section 4.3) Operator’s Manual City Ranger 3070...

  • Page 60: Lubrication

    A grease gun should be stored in near Articulating joint lower From side proximity of the machine in order to minimize From underneath the chance of lubrication being skipped. Articulating joint through hole in rear frame Operator’s Manual City Ranger 3070...

  • Page 61: Filters

    If the primary air cleaner element is damaged, change both elements. Put back the primary air cleaner element that is new or cleaned. Install the air cleaner cover. Secondary air cleaner element Operator’s Manual City Ranger 3070...
  • Page 62 9. Turn the keyswitch to the ON position for 2 minutes in order to prime the fuel system. Turn the keyswitch to OFF position, then turn on again. The engine is primed and ready to start. Operator’s Manual City Ranger 3070...
  • Page 63 4. Unscrew the drain plug located at the base of the fuel filter, and empty the filter. (Picture 1) 5. Remove the container. Remove the fuel decanter filter element. Replace it. (Picture 2) 6. Fill the container and put it back. (Picture 1) Operator’s Manual City Ranger 3070...
  • Page 64 1. Move the driver’s seat to its most forward position. 2. The filter is located behind the seat. (Picture 3+4) 3. Unclick the filter and discard it. 4. Click new filter. Cabin filter behind seat Recirculation filter behind seat Recirculation filter behind seat Operator’s Manual City Ranger 3070...
  • Page 65 1. Clean the fins with compressed air (6 Bar). Radiator If necessary, point the compressed air in the opposite direction of the cooling air. (Picture 4) If not possible to clean: call your Egholm after sales service team. Brush Radiator Air conditioning condenser Operator’s Manual City Ranger 3070...

  • Page 66: Checking Belts

    Check the belt for wear and tear, also check that it is properly tensioned. (Picture 2) Air conditioning belt Alternator belt Check the belt for wear and tear, also check that it is properly tensioned. (Picture 3) Air conditioning belt Operator’s Manual City Ranger 3070...

  • Page 67: Changing A Wheel

    120 Nm. Wheel bolts should not be lubricated. Attention Only use tyre dimension and tyre pressure as specified in section 1.4 page 12. Attention Changing tyres on rims may only be carried out at an authorized workshop. Operator’s Manual City Ranger 3070...

  • Page 68: In Case Of Failure

    It is also advisable to chock the wheels. Call your after-sales service and provide the serial number of your City Ranger 3070. You can read it on the information plate of your vehicle. (Picture 1+2) 3.12 Storage...
  • Page 69 Conditions...

  • Page 70: Conditions

    Conditions 4.1 Warranty The warranty period of this City Ranger 3070 is valid from the date of purchase and mandatory filled out Start-up Warranty form. For more information, take contact to the Regional Sales Manager of Egholm. In case of errors or defects on the machine within the warranty period, the ccs system should be used to report the issues.

  • Page 71: Complaints

    Egholm A/S 4.3 Disposal When, many years from now, your City Ranger 3070 has reached the end of its working life, it should be disposed of in a responsible manner that conforms to relevant disposal regulations. 1. Used hydraulic oil, motor oil, diesel oil, coolant and AC coolant are to be delivered at an approved waste disposal facility or site.
  • Page 72 Wearing parts...

  • Page 73: Wearing Parts

    Wearing parts 5.1 Wearing parts Wearing parts: please contact your local Egholm dealer. Operator’s Manual City Ranger 3070...

  • Page 74: Notes

    Notes Operator’s Manual City Ranger 3070...
  • Page 75 Notes Operator’s Manual City Ranger 3070...
  • Page 76 Egholm A/S Transportvej 27 7620 Lemvig, Denmark T.: +45 97 81 12 05 www.egholm.eu - info@egholm.dk...
