Egholm City Ranger 3070 Operator's Manual

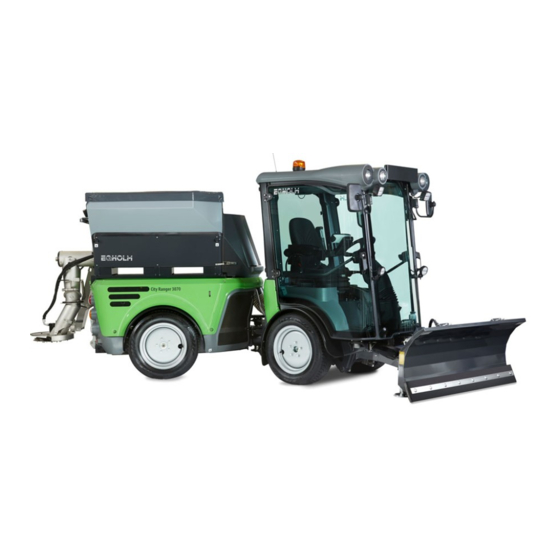

Salt and sand spreader
Hide thumbs Also See for City Ranger 3070:
Table of Contents

Advertisement

Quick Links

Download this manual
Operator´s
manual
Salt and sand spreader
City Ranger 3070

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the City Ranger 3070 and is the answer not in the manual?

Questions and answers

Related Manuals for Egholm City Ranger 3070

Summary of Contents for Egholm City Ranger 3070

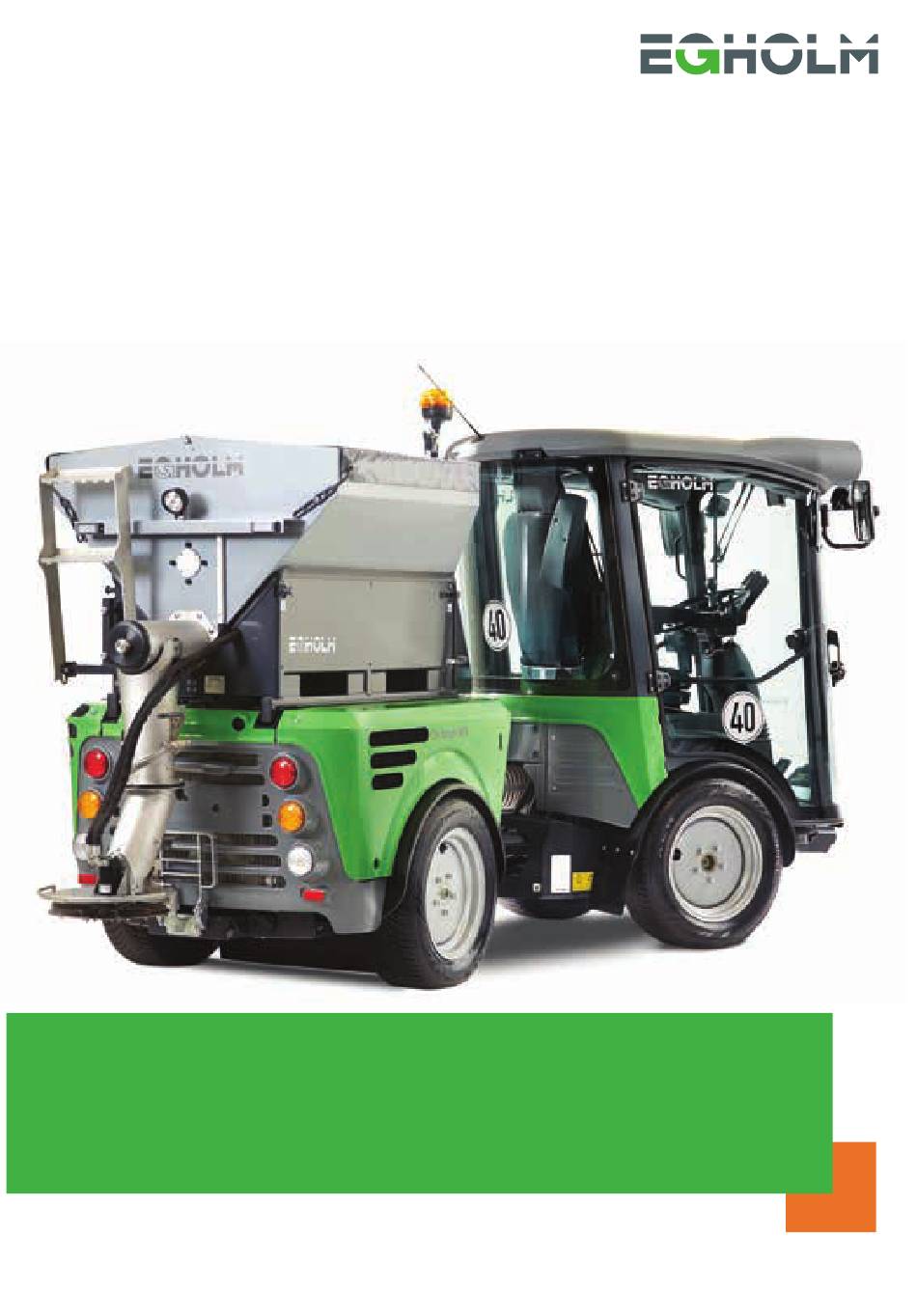

  • Page 1 Operator´s manual Salt and sand spreader City Ranger 3070...
  • Page 2 Dear Customer, Congratulations with your new Egholm product The City Ranger 3070 is a Danish designed and manufactured product, which offers a very flexible way of maintaining outdoor areas. Optimal use of your City Ranger 3070 Salt and sand spreader To ensure optimal performance of your City Ranger 3070 Salt and sand spreader, please read this manual carefully before using the machine.

  • Page 3: Table Of Contents

    5.1 Wearing parts - City Ranger 3070 Salt and sand spreader ......

  • Page 4: General Information

    General information...

  • Page 5: Safety

    Avoid standing close to the machine while it is in use Make sure that no one is near the machine while it is in use as there is a danger of crushing. (Picture 1) Operator’s Manual City Ranger 3070 Salt and sand spreader...
  • Page 6 Wear eye protection when checking the spreading width of the spreader plate. Destruction of the hydraulic hoses by pinching or rubbing against the structural parts When connecting the hydraulic hoses, make sure their installation is kink and abrasion free. Operator’s Manual City Ranger 3070 Salt and sand spreader...
  • Page 7 Regularly check the hydraulic hoses for leaks. They must be replaced at regular intervals, even if no defects are present. (See the Section 3.1 Service and Maintenance chart in the Operator´s manual for the City Ranger 3070 Basic machine). Operator’s Manual City Ranger 3070 Salt and sand spreader...

  • Page 8: Ec Declaration Of Conformity For Machinery

    Unless otherwise agreed in writing between the operator, customer and Egholm, Egholm is the data originator (data originator) of all data generated by the machine and attachments during use.

  • Page 9: Technical Data

    Spreading width 1,5-6 m Material Salt, sand and gravel -Type approval of the machine does not include turf tyres and 15’’ winter tyres with snow chains. Specifications may change without prior notic Operator’s Manual City Ranger 3070 Salt and sand spreader...

  • Page 10: Operator's Manual

    Operator´s manual...
  • Page 11 If using a forklift, there can be material in the Spreader. Ratchet load carrier open position Stand and adaptor Hang up the adaptor on the stand lifting hooks. Operator’s Manual City Ranger 3070 Salt and sand spreader...

  • Page 12: Assembly

    Spreader must not fall directly into the groves. Push the Spreader forward, so it slides in the lock grooves. (Picture 2) 5. Connect the hydraulics, using the hydraulic lock Lower the Spreader handle. (Picture 3) Locking handle Operator’s Manual City Ranger 3070 Salt and sand spreader...

  • Page 13: Alternative Assembly

    3. Push the Spreader forward, so it falls in the lock grooves. The Spreader must not slide directly into the grooves. (Picture 2) 4. Connect the hydraulics, using the hydraulic lock handle. (Picture 3) Pushing the Spreader Locking handle Operator’s Manual City Ranger 3070 Salt and sand spreader...

  • Page 14: Disassembly

    Basic machine away. (Picture 5) Connect the hooks onto the Spreader Move the handle down until locking hook is in the last/lower notch Removing the Spreader or the Basic machine Operator’s Manual City Ranger 3070 Salt and sand spreader...

  • Page 15: Alternative Disassembly

    1. Unlock the hydraulic handle (Picture 1) 2. Using a forklift, lift the Spreader away from the Basic machine. (Picture 2+3) Locking handle Lifting the Spreader Lifting the Spreader away from the Basic machine Operator’s Manual City Ranger 3070 Salt and sand spreader...

  • Page 16: Important Before Start Up - Prepare Spreader

    Flip the lock to the lower spreading unit lower position. (Picture 2+3) Swivel the spreading unit down Working mode Lock for lower spreading unit Spreader in workmode placement Operator’s Manual City Ranger 3070 Salt and sand spreader...
  • Page 17 See section 2.7 for quick emptying. (Picture 3) Attention Always stop the machine and shut off the main switch when working on the salt spreader. Transportation mode Swivel the spreading unit up 6 nuts Operator’s Manual City Ranger 3070 Salt and sand spreader...
  • Page 18 Screw 3 and screw 8 from Hydraulic motor Re-mount the 4 screws in the tank together with the salt stop. Remount the Salt and sand spreader side covers. Stirrer straight side Operator’s Manual City Ranger 3070 Salt and sand spreader...
  • Page 19 If using Position 1 for Split, the result will be more spilt in the right side, in the driving direction. Adjust the slide guide Split and gravel Asymmetric spreading Asymmetric spreading Operator’s Manual City Ranger 3070 Salt and sand spreader...
  • Page 20 Turn the spreding disk if a Asymmetric spreading pattern is needed. Loosen the handle. (Picture 1) Turn the spreding disk to needed position. Loosen the handle (Picture 2+3) Asymmetric spreading Asymmetric spreading Operator’s Manual City Ranger 3070 Salt and sand spreader...
  • Page 21 Attention Ladder only drive with the ladder in stored Lift up ladder and swing it down position. (Picture 4) Ladder in position for looking into the tank Ladder in stored position Operator’s Manual City Ranger 3070 Salt and sand spreader...

  • Page 22: Start-Up

    (Picture 2) 4. Make sure nobody is near the machine 5. To start the Salt and sand spreader push and hold WM button for minimum 3 sec. (Picture 3) WM button Operator’s Manual City Ranger 3070 Salt and sand spreader...
  • Page 23 (Picture 3) 10. After another 5 seconds without action the Salt and sand spreader will stop, and an acoustic alarm can be heard. (Picture 4) Warning Operator’s Manual City Ranger 3070 Salt and sand spreader...

  • Page 24: Service And Maintenance

    Service and maintenance...

  • Page 25: Cleaning

    Avoid high-pressure cleaning of the snap couplings. Wipe snap couplings clean with a cloth on both Salt spreader and Basic machine. (Picture 1+2) Remember to clean the Basic machine thoroughly after use. Operator’s Manual City Ranger 3070 Salt and sand spreader...

  • Page 26: Maintenance

    • Check the screw connections for tightness. • Check the hydraulic hoses and couplings for leaks. • The spreader has no lubricating nipples, all bearings etc. are lifetime lubricated. Remove the front cover Check the belt Operator’s Manual City Ranger 3070 Salt and sand spreader...

  • Page 27: Maintenance And Checking Of The Hydraulics

    Improper storage, mechanical damage and excessive loads are the most common causes of failure.” The Egholm A/S prescribes changing the hydraulic lines of your Basic machine every six years. In addition, they must be annually inspected by a competent person.

  • Page 28: Storage

    When parked outside or transported, use a cover to protect the spreading material against moisture! Road salt must not be stored in the hopper over a long period of time; empty the Salt and sand spreader tank after each use! Operator’s Manual City Ranger 3070 Salt and sand spreader...

  • Page 29: Conditions

    Conditions...

  • Page 30: Warranty

    The warranty period for the materials and manufacture of this Salt and sand spreader is 12 months from the date of purchase. In the case of errors or defects on the machine within the warranty period, Egholm will carry out the necessary repairs without charge for materials and working hours in accordance with the terms and conditions listed below.

  • Page 31: Complaints

    2. Remove all plastic and rubber parts and dispose of. 3. After the parts mentioned have been removed, the machine is ready to be handed over to one of your local approved scrap merchants. Operator’s Manual City Ranger 3070 Salt and sand spreader...

  • Page 32: Wearing Parts

    Wearing parts...

  • Page 33: Wearing Parts - City Ranger 3070 Salt And Sand Spreader

    Wearing parts 5.1 Wearing parts - City Ranger 3070 Salt and sand spreader Auger E50002390 E50002426 Toothed belt Operator’s Manual City Ranger 3070 Salt and sand spreader...

  • Page 34: Notes

    Notes Operator’s Manual City Ranger 3070 Salt and sand spreader...
  • Page 35 Notes Operator’s Manual City Ranger 3070 Salt and sand spreader...
  • Page 36 Egholm A/S Transportvej 27 7620 Lemvig, Denmark T.: +45 97 81 12 05 www.egholm.eu - info@egholm.dk...
