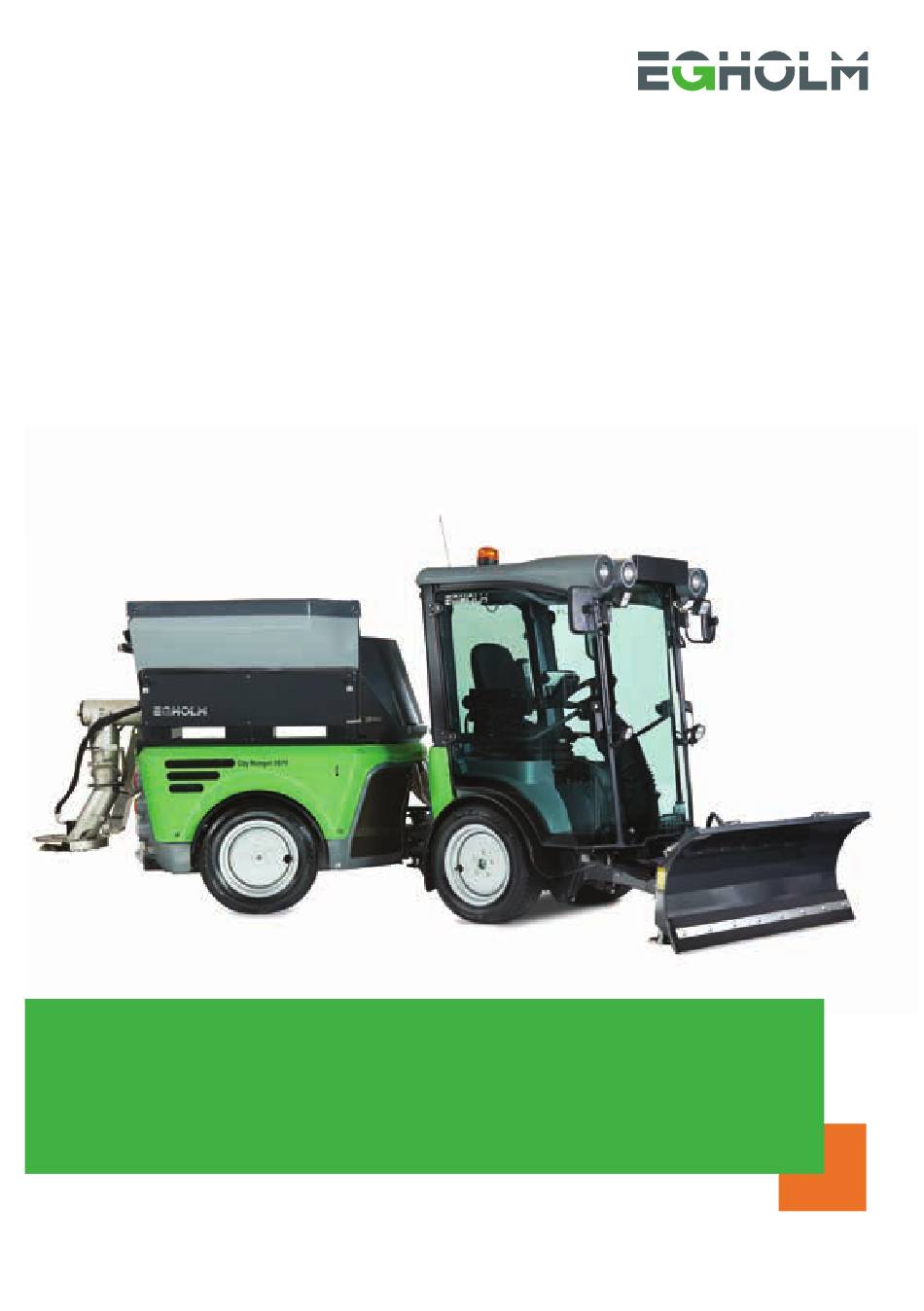

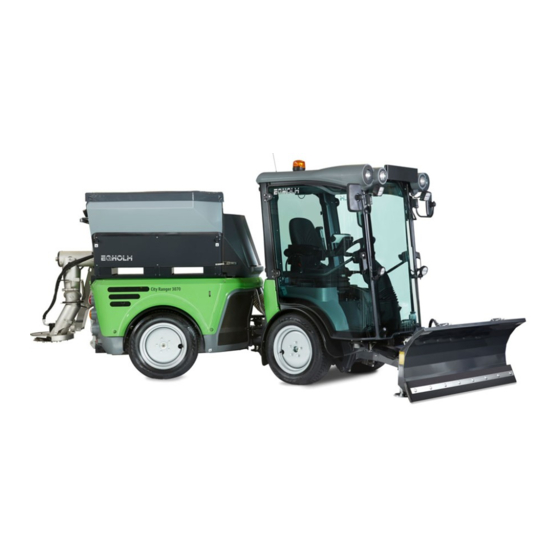

- Page 1 Operator´s manual Snow plough City Ranger 3070...
- Page 2 Introduction Dear Customer Congratulations with your Egholm product The City Ranger 3070 is a Danish designed and manufactured product which offers a very flexible way of maintaining outdoor areas. Optimal use of your City Ranger 3070 Snow plough To ensure the optimal performance of your City Ranger 3070 Snow plough, please read this operator’s manual carefully before starting to use the machine.
-
Page 3: Table Of Contents
5.1 Wearing parts - City Ranger 3070 Snow plough ....... . -
Page 4: General Information
General information... -
Page 5: Safety
The Snow plough swings to the side when the right joystick is moved left or right. Make sure that no one is standing near the machine while it is in use. (Picture 3) Right joystick Operator’s Manual City Ranger 3070 Snow plough... - Page 6 Avoid eye injuries Wear eye protection. Destruction of the hydraulic hoses by pinching or rubbing against the structural parts When connecting the hydraulic hoses, make sure their installation is kink and abrasion free. Operator’s Manual City Ranger 3070 Snow plough...
- Page 7 Regularly check the hydraulic hoses for leaks. They must be replaced at regular intervals, even if no defects are present (See the Section 3.1 Service and Maintenance chart in the Operator´s manual for the City Ranger 3070 Basic machine). Operator’s Manual City Ranger 3070 Snow plough...
-
Page 8: Ec Declaration Of Conformity For Machinery
Unless otherwise agreed in writing between the operator, customer and Egholm, Egholm is the data originator (data originator) of all data generated by the machine and attachments during use. -
Page 9: Technical Data
Adjuster discs per skid: ........... . 7 Type approval of the machine does not include turf tyres and 15’’ winter tyres with snow chains Specifications may be changed without prior notice Operator’s Manual City Ranger 3070 Snow plough... -
Page 10: Operator's Manual
Operator´s manual... -
Page 11: Assembly/Disassembly
Remove the plastic from the Snow plough and pallet. Lift the Snow plough of the pallet - use a crane and the Snow plough lifting point. (Picture 2) Delivered on a pallet Lifting point Operator’s Manual City Ranger 3070 Snow plough... - Page 12 Joystick position. (Picture 3+4) The locking handle may only be engaged when the machine has been stopped and engine switched off. Locking the attachment Handle in locked position. Operator’s Manual City Ranger 3070 Snow plough...
-
Page 13: Important Before Start-Up
Always make sure the right attachment is selected on the selection screen. If a wrong attachment is chosen the attachment may work in a wrong way. The Snow plough and machine are now on the screen Operator’s Manual City Ranger 3070 Snow plough... - Page 14 (VM button). (Picture 1) Activate the button with A frame pictogram (Picture 3) The A frame will lift when the machine is set to reverse. Turning the Snow plough Lifting/lowering the Snow plough Operator’s Manual City Ranger 3070 Snow plough...
-
Page 15: Adjustment
5. Put the locking ring back on the skid. Optional equipment If the Snow plough is mounted with wheels, the adjustment is done by turning the hand wheel. Operator’s Manual City Ranger 3070 Snow plough... -
Page 16: Service And Maintenance
Service and maintenance... -
Page 17: Cleaning
Clean the Snow plough with water when it is no longer required for use. Avoid high pressure cleaning of the quick couplings. Wipe the quick couplings clean with a cloth. (Picture 1) Quick couplings Operator’s Manual City Ranger 3070 Snow plough... -
Page 18: Maintenance
It is recommended that the attachment is greased / sprayed with protective lubricant. Nuts holding the scraper edge Operator’s Manual City Ranger 3070 Snow plough... -
Page 19: Conditions
Conditions... -
Page 20: Warranty
The warranty period for the materials and manufacture of this Snow plough is 12 months from the date of purchase. In case of errors or defects on the machine within the warranty period, Egholm will carry out the necessary repairs at no charge to the customer, including materials and working hours, in accordance with the terms and conditions listed below. -
Page 21: Complaint
1. Used hydraulic oil is to be disposed of at an approved waste disposal facility or site. 2. Remove all plastic and rubber parts and dispose of. 3. After the parts mentioned have been removed, the machine is ready to be handed over to an approved scrap merchant. Operator’s Manual City Ranger 3070 Snow plough... -
Page 22: Wearing Parts
Wearing parts... -
Page 23: Wearing Parts - City Ranger 3070 Snow Plough
Wearing parts 5.1 Wearing parts - City Ranger 3070 Snow plough E50008769 Spring E56000301 Steel edge set E50008720 Wheel E56000305 Rubber scraping edge set E50008784 Skids Operator’s Manual City Ranger 3070 Snow plough... -
Page 24: Notes
Notes Operator’s Manual City Ranger 3070 Snow plough... - Page 25 Notes Operator’s Manual City Ranger 3070 Snow plough...
- Page 26 Notes Operator’s Manual City Ranger 3070 Snow plough...
- Page 27 Notes Operator’s Manual City Ranger 3070 Snow plough...
- Page 28 Egholm A/S Transportvej 27 7620 Lemvig, Denmark T.: +45 97 81 12 05 www.egholm.eu - info@egholm.dk...
