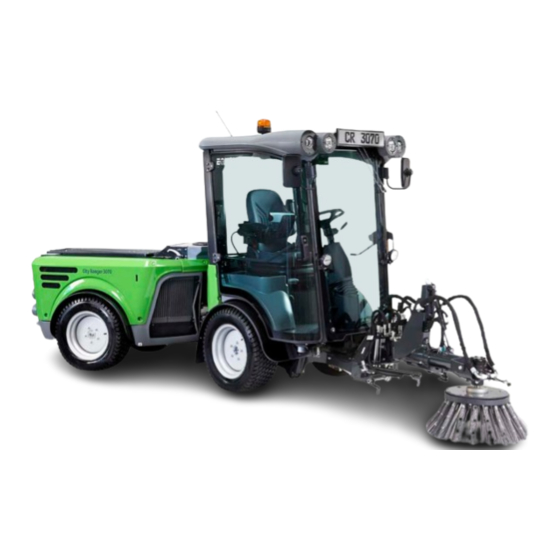

- Page 1 Operator´s manual Weed brush City Ranger 3070...
- Page 2 Introduction Dear Customer Congratulations with your new Egholm product The City Ranger 3070 is a Danish designed and manufactured product, which offers a very flexible way of maintaining outdoor areas. Optimal use of your City Ranger 3070 weed brush To ensure optimal performance of your City Ranger 3070 weed brush, please read this manual carefully before using the machine.
-
Page 3: Table Of Contents
Regular brushing keeps an area areas weed-free, i.e. pavements, paths, weed-free without the use of pesticides. flagstones, asphalt, etc. There isn’t a weed anywhere that can resist the rotating brush as it sweeps over it. Operator’s Manual City Ranger 3070 Weed brush... - Page 4 General information...
-
Page 5: General Information
5°. (Picture 3) When using with hopper Read the safety instructions in the suction sweeper operator’s manual. Joystick Max.5° Do not drive along slopes with an inclination of more than 5° Operator’s Manual City Ranger 3070 Weed brush... - Page 6 Avoid eye injuries Wear eye protection. Destruction of the hydraulic hoses by pinching or rubbing against the structural parts When connecting the hydraulic hoses, make sure their installation is kink and abrasion free. Operator’s Manual City Ranger 3070 Weed brush...
- Page 7 Regularly check the hydraulic hoses for leaks. They must be replaced at regular intervals, even if no defects are present (See the Section 3.1 Service and Maintenance chart in the Operator´s manual for the City Ranger 3070 Basic machine). Operator’s Manual City Ranger 3070 Weed brush...
-
Page 8: Ec Declaration Of Conformity
Unless otherwise agreed in writing between the operator, customer and Egholm, Egholm is the data originator (data originator) of all data generated by the machine and attachments during use. -
Page 9: Technical Data
Ground clearance under vacuum nozzle ....................90 mm Brush diameter ............................675 mm Weed brush weight ............................. 131 kg Typical working speed .......................... 2-4 km/h N.B! Specifications may be changed without prior notice. Operator’s Manual City Ranger 3070 Weed brush... - Page 10 Operator´s manual...
-
Page 11: Operator's Manual
The Weed brush lifting point is located at the top of Weed brush the brush (Picture 3) Use a crane or forklift to lift the Weed brush out of the box. (Picture 4) Lifting point Operator’s Manual City Ranger 3070 Weed brush... - Page 12 If the locking handle is engaged with the engine running the hydraulic couplings may be damaged. Removing Follow the procedure for fitting in the reverse order. Handle in unlocked position Locking the attachment Operator’s Manual City Ranger 3070 Weed brush...
-
Page 13: Before Start-Up
Choose gray / brush menu 3. Choose Weed brush in the gray menu. (Picture 3) 4. When using with hopper Read the safety instructions in the suction sweeper operator’s manual. (Picture 4) Choose Weed brush Choose Hopper Operator’s Manual City Ranger 3070 Weed brush... - Page 14 (Picture 4, d) e) Lifting the brush automatically when reversing (Option). If button (Picture 4, e), is activated (lighted) the brush is lifted from the ground when the CR3070 is in reverse. Operator’s Manual City Ranger 3070 Weed brush...
- Page 15 When turning, the rear of the machine swings out, so there is a risk of crushing or collision. To increase the lifetime of the brushes, Egholm recommends to work with as little brush pressure as possible.
-
Page 16: Sideways Arm Movement
The arm can move from side to side: (Pictures 1+2) Right 1. Move the joystick sideways to move the arm out to the side. (Picture 3) The arm swings in the same direction as the joystick. Left Joystick Operator’s Manual City Ranger 3070 Weed brush... -
Page 17: Forward/Back Brush Adjustment
2.5 Forward/back brush adjustment The brush can tilt forward and back. (Pictures 1+2) Move the joystick back and forth (Picture 3) The brush tilts in the opposite direction as the joystick. Forward Back Joystick Operator’s Manual City Ranger 3070 Weed brush... -
Page 18: Sideways Brush Adjustment
Operator’s manual 2.6 Sideways brush adjustment The brush can tilt from side to side. (Pictures 1+2) Tilt the brush left to right by move the joystick right or left. (Picture 3) Right Left Operator’s Manual City Ranger 3070 Weed brush... -
Page 19: Weed Brush Applications
Operator’s manual 2.7 Weed Brush applications The Egholm weed brush design makes it extremely flexible. Three applications 1. Scouring weeds horizontally. (Picture 1) 2. Scouring weeds vertically on left side. (Picture 2) 3. Scouring weeds vertically on right side. (Picture 3) N.B! -
Page 20: Change Between Vertical And Horizontal Brushing
(Picture 3) Positioning the brush completely vertically requires extra adjustment using the joystick. (See Section 2.7) 3. Vertical left – 1. Horizontal– 2. Vertical right Free/continue turning Operator’s Manual City Ranger 3070 Weed brush... -
Page 21: Keeps Areas Weed-Free By Collecting
Repeat the process in reverse order to detach vacuum nozzle. Tips! Fitting the vacuum nozzle When the vacuum nozzle is not in use, it can be stored away, preventing the rubber guard from being warped. Vacuum nozzle fitted Operator’s Manual City Ranger 3070 Weed brush... -
Page 22: Guard Use
2. The guard can be raised if it gets in the way. (Picture 2) 3. If the guard needs to be lowered again, pull the button and push guard down manually. (Picture 3) Raised Release button Operator’s Manual City Ranger 3070 Weed brush... - Page 23 Service and maintenance...
-
Page 24: Service And Maintenance
1. Place the brush flat on the ground. 2. Loosen the three bolts. (Picture 4) Parallel 3. Adjust the guard so that it is parallel to the surface. 4. Tighten the bolts. Loosen the bolts. Guard parallel with surface Operator’s Manual City Ranger 3070 Weed brush... -
Page 25: Lubrication / Storage
Make sure no one is under the brush when the bolts are removed. The brush is abrasive. Use protective gloves. A new brush can be ordered from an authorised Egholm dealer. Three nuts Operator’s Manual City Ranger 3070 Weed brush... -
Page 26: Guard Maintenance
2. Remove rubber profile. (Picture 2) 3. Fit new rubber profile and tighten screws. Changing a wheel Nuts 1. Remove the bolt and wheel. (Picture 3) 2. Fit new wheel. 3. Tighten bolt. Remove rubber profile Remove nut Operator’s Manual City Ranger 3070 Weed brush... -
Page 27: Maintenance
Same for front and backside rubber. Backside rubber New rubber sleeves can be ordered from your unscrew all bolts, change the rubber authorised Egholm dealer. Front rubber unscrew all bolts and change the rubber Operator’s Manual City Ranger 3070 Weed brush... - Page 28 Conditions...
-
Page 29: Conditions
The warranty period for the materials and manufacture of this weed brush is 24 months from the date of purchase. In case of errors or defects on the machine within the warranty period, Egholm will carry out the necessary repairs without charge for materials and working hours in accordance with the terms and conditions listed below. -
Page 30: Complaints
2. Remove all plastic and rubber parts and dispose of. 3. After the parts mentioned have been removed, the machine is ready to be handed over to one of your local approved scrap merchants. Operator’s Manual City Ranger 3070 Weed brush... -
Page 31: Notes
Notes Operator’s Manual City Ranger 3070 Weed brush... - Page 32 Egholm A/S Transportvej 27 7620 Lemvig, Denmark T.: +45 97 81 12 05 www.egholm.eu - info@egholm.dk...
