INSTALLATION
INSTRUCTIONS
Attachment Kit...................................................................................................................................................... 1
Adapter Kit ........................................................................................................................................................... 2
BUS cable 2 port (sold separately) ...................................................................................................................... 2
Customer Information .......................................................................................................................................... 3
Wire Harness Routing Precautions...................................................................................................................... 3
.................................................................................................................................................................. 6
............................................................................................................................................................... 19

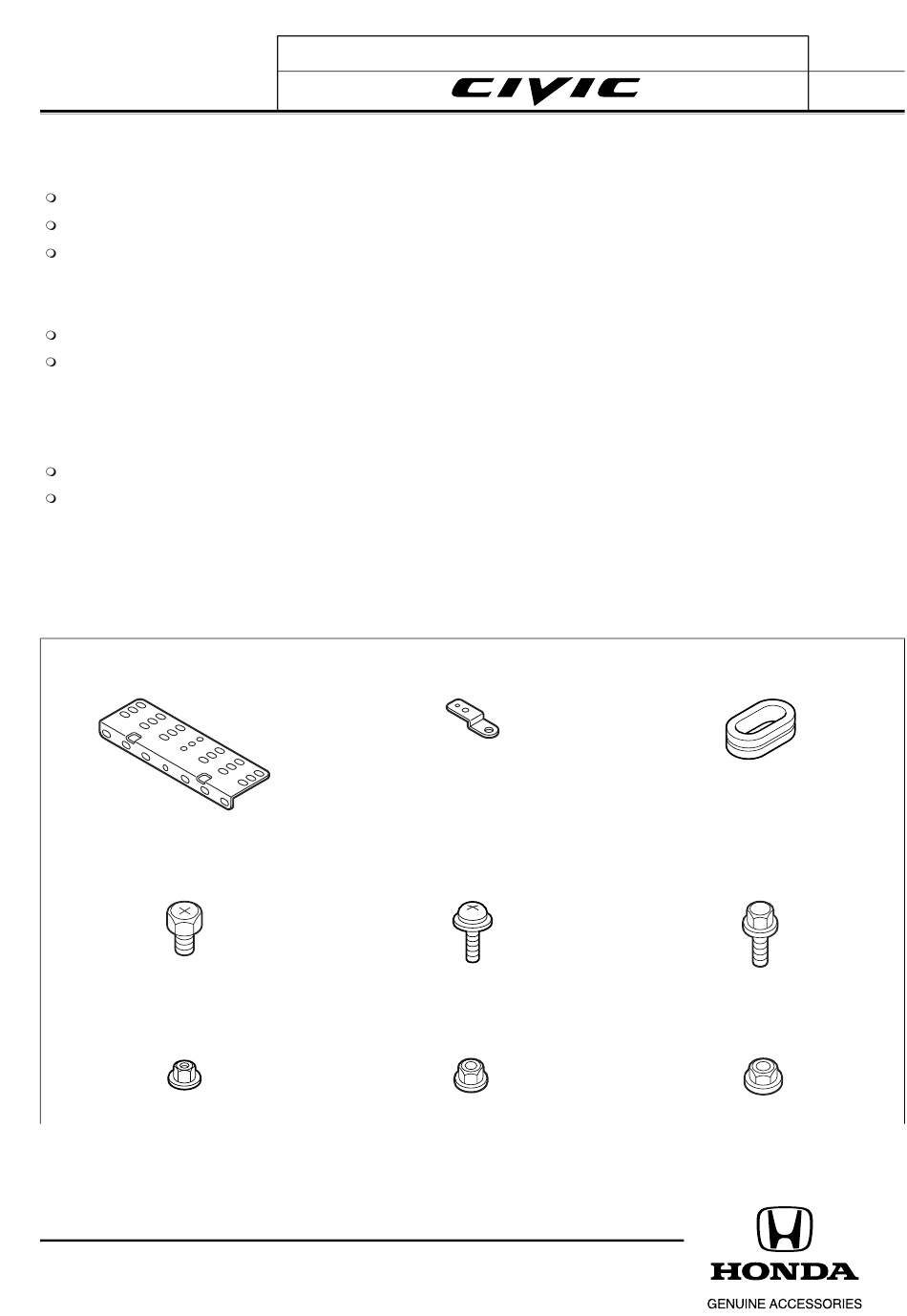

Parts List
Attachment Kit P/N:08A28-0J6-800
Adapter bracket A
5 x 8 mm Bolts (2)
4 mm Flange nuts (2)
© Honda Access Corp. 2006
®
iPod
is a trademark of Apple
Computer, Inc., registered in the U.S.
and other countries.
............................................................................................................................ 2
..................................................................................................................................... 32
Adapter brackets B (2)
5 x 16 mm Washer-screws (2)
5 mm Flange nuts (2)
08B28-SMR-6001-96
Adapter for iPod
INDEX
............................................................... 4
.............................................................. 5
Grommet
6 x 12 mm Flange bolts (2)
6 mm Flange nuts (2)
NOV. 2006
1 / 32

Advertisement

loading

  Related Manuals for Honda 08A28-0J6-800

  Summary of Contents for Honda 08A28-0J6-800

  • Page 1: Table Of Contents

    5 x 16 mm Washer-screws (2) 6 x 12 mm Flange bolts (2) 4 mm Flange nuts (2) 5 mm Flange nuts (2) 6 mm Flange nuts (2) © Honda Access Corp. 2006 08B28-SMR-6001-96 1 / 32 ® iPod is a trademark of Apple Computer, Inc., registered in the U.S.
  • Page 2: Adapter Kit

    4 mm Screw caps (2) 4mm Screws (2) Wire ties with clip (2) Wire ties (8) Urethanes (2) Cushion tapes (2) 5mm Plain washers (4) Adapter Kit Adapter unit ® Owner’s Manual iPod harness BUS cable 2 port (sold separately) P/N:08A31-0H6-000 BUS cable 2 port EPT sealer Tools and Supplies Required...
  • Page 3: Before You Begin Customer Information

    Before You Begin Customer Information • Write down the customer’s radio station presets; the radio memory will be erased when you disconnect the battery. • Make sure you have the anti-theft code for the radio, then write down the frequencies for the preset buttons. •...
  • Page 4: Illustration Of The Ipod® Adapter Installed On The Vehicle (Lhd)

    ® Illustration of the iPod Adapter Installed on the Vehicle (LHD) <Car without a navigation system> ADAPTER ® iPod HARNESS 6802020B <Car with a navigation system> ADAPTER ® iPod HARNESS 6802030B ® 4 / 32 08B28-SMR-6001-96 iPod is a trademark of Apple Computer, Inc., registered in the U.S.
  • Page 5: Illustration Of The Ipod® Adapter Installed On The Vehicle (Rhd)

    ® Illustration of the iPod Adapter Installed on the Vehicle (RHD) <Car without a navigation system> ADAPTER ® iPod HARNESS 6802040B <Car with a navigation system> ADAPTER ® iPod HARNESS 6802050B ® iPod is a trademark of Apple 08B28-SMR-6001-96 5 / 32 Computer, Inc., registered in the U.S.
  • Page 6: Installation

    Installation RETAINING <LHD> CLIPS (5) Remove the driver’s dashboard side cover by releasing the five retaining clips. DRIVER’S DASHBOARD SIDE COVER 5513020S Remove the self-tapping screw. Pull down the HARNESS CLIP driver’s dashboard under cover to release the (if equipped) nine retaining clips.
  • Page 7 With the shift boot: Remove the change knob by rotating counter- TRIM RING clockwise. CHANGE KNOB Keep rotating the boot nut counterclockwise until the boot nut gets free from the change lever. BOOT NUT Open the lid. Gently pry up on the front of the trim ring to release the four clips, and remove the trim ring.
  • Page 8 13. Remove the dashboard center upper lid by releasing the seven retaining clips with a trim RETAINING CLIPS (7) tool. TRIM TOOL • Attach duct tape to the part shown not to damage during removal/installation of the vehicle parts. DASHBOARD CENTER UPPER LID DUCT...
  • Page 9 15. Pull the center panel toward you to free its six HAZARD FLASHER retaining clips, Unplug all the vehicle connec- HARNESS CLIPS (2) SWITCH tors from the center panel, then detach two harness clips to remove the center panel. VEHICLE CONNECTOR for hazard flasher switch VEHICLE CONNECTOR VEHICLE...
  • Page 10 17. Remove the passenger’s dashboard under cover (if equipped) by releasing the four retain- ing clips. PASSENGER’S DASHBOARD RETAINING UNDER COVER CLIPS (4) (if equipped) 6311030S 18. Remove the two self-tapping screws from the bottom and the bolt from the rear of the glove GLOVE BOX box.
  • Page 11 In case of a car without a navigation system, start Cut on the extension of the rib. the work from step 21. In case of a car with a naviga- UTILITY KNIFE tion system, start the work from step 32. <Car without a navigation system>...
  • Page 12 26. Prick the two marked positions with a pushpin. GLOVE Use an electric drill to drill holes with 3 mm Marks made in step 25. diameter at the two marked positions, and then widen the holes with 5 mm drill bits. •...
  • Page 13 30. Clean the urethane attachment surface with contact cleaner. Attach one piece of urethane to the adapter unit. GLOVE BOX 31. Clean the cushion tape attachment surface with contact cleaner. Route the adapter unit CUSHION ® harness and the iPod harness as shown and TAPES (3) secure them with three cushion tapes to the...
  • Page 14 34. Secure the adapter with two 5 x 16 mm washer-screws to the 6 mm holes of the glove box. ADAPTER UNIT • Take care to use the correct holes for GLOVE BOX securing the adapter unit. ADAPTER UNIT Positions for securing the 5 x 16 mm washer-screws.
  • Page 15 38. Move the glove box close to the car. Pass the ILLUMINATION <Car with a navigation system> adapter unit harness from the glove box open- BULB ADAPTER CENTER PANEL ® ing to the center panel opening and the iPod UNIT OPENING HARNESS harness through the front console opening.
  • Page 16 ® 41. Mark the iPod harness at the indicated dimen- ® CENTER PANEL iPod HARNESS sion with tape. OPENING CLIP TAPE ® iPod HARNESS 450 mm 6706380Y 42. Arrange the 14-pin connector of the adapter ADAPTER UNIT CENTER PANEL unit harness with the 17-pin vehicle connector WIRE HARNESS WIRE...
  • Page 17 46. Mark the two dimension positions with a felt-tip FRONT CONSOLE MARK FELT-TIP PEN pen on the front console. 10 mm From the rounding end. 15 mm 15 mm From the rounding end. FRONT CONSOLE 6706410Y 47. Prick the two marked positions with a pushpin. HOLE SAW UTILITY KNIFE ELECTRIC DRILL...
  • Page 18 ® Pass the iPod harness connector through the grommet. GROMMET 50. Move the front console close to the car. Pass ® the iPod harness connector through the cut hole and install the grommet in the cut hole. ® iPod HARNESS CONNECTOR FRONT CONSOLE...
  • Page 19: Rhd

    <RHD> RETAINING Remove the driver’s dashboard side cover by CLIPS (5) releasing the five retaining clips. DRIVER’S DASHBOARD SIDE COVER 5511180S Remove the self-tapping screw. Pull down the HARNESS CLIP driver’s dashboard under cover to release the VEHICLE (if equipped) CONNECTOR nine retaining clips.
  • Page 20 With the shift boot: Remove the change knob by rotating counter- TRIM RING clockwise. Keep rotating the boot nut counterclockwise until the boot nut gets free from the change CHANGE KNOB lever. Open the lid. Gently pry up on the front of the BOOT NUT trim ring to release the four clips, and remove the trim ring.
  • Page 21 13. Remove the dashboard center upper lid by releasing the seven retaining clips with a trim RETAINING CLIPS (7) tool. • Attach duct tape to the part shown not to TRIM TOOL damage during removal/installation of the vehicle parts. DASHBOARD CENTER UPPER LID DUCT...
  • Page 22 15. Pull the center panel toward you to free its six retaining clips, Unplug all the vehicle connec- HARNESS CLIPS (2) tors from the center panel, then detach two VEHICLE CONNECTOR harness clips to remove the center panel. for hazard flasher switch VEHICLE CONNECTOR HAZARD...
  • Page 23 17. Remove the passenger’s dashboard under cover (if equipped) by releasing the four retain- ing clips. PASSENGER’S RETAINING DASHBOARD CLIPS (4) UNDER COVER 6306130S 18. Remove the two self-tapping screws from the bottom and the bolt from the rear of the glove GLOVE BOX box.
  • Page 24 In case of a car without a navigation system, start Cut on the extension of the rib. UTILITY KNIFE the work from step 21. In case of a car with a naviga- tion system, start the work from step 32. <Car without a navigation system>...
  • Page 25 26. Prick the two marked positions with a pushpin. Use an electric drill to drill holes with 3 mm Marks made in step 25. diameter at the two marked positions, and then GLOVE widen the holes with 5 mm drill bits. •...
  • Page 26 30. Clean the urethane attachment surface with contact cleaner. Attach one piece of urethane to the adapter unit. GLOVE BOX 31. Clean the cushion tape attachment surface with contact cleaner. Route the adapter unit ® harness and the iPod harness as shown and CUSHION TAPES (3) secure them with three cushion tapes to the...
  • Page 27 34. Secure the adapter with two 5 x 16 mm washer-screws to the 6 mm holes of the glove box. ADAPTER GLOVE BOX • Take care to use the correct holes for UNIT securing the adapter unit. ADAPTER UNIT Positions for securing the 5 x 16 mm washer-screws.
  • Page 28 38. Move the glove box close to the car. Pass the <Car with a navigation system> adapter unit harness from the glove box open- ADAPTER UNIT CENTER PANEL ® ing to the center panel opening and the iPod HARNESS ILLUMINATION OPENING BULB harness through the front console opening.
  • Page 29 ® 41. Mark the iPod harness at the indicated dimen- ® iPod sion with tape. HARNESS CENTER PANEL OPENING CLIP TAPE ® iPod HARNESS 450 mm 6706250Y 42. Arrange the 14-pin connector of the adapter WIRE ADAPTER UNIT unit harness with the 17-pin vehicle connector CENTER PANEL WIRE HARNESS...
  • Page 30 46. Mark the two dimension positions with a felt-tip FRONT CONSOLE MARK FELT-TIP PEN pen on the front console. 10 mm from the rounding 15 mm 15 mm from the rounding end FRONT CONSOLE 6706190Y 47. Prick the two marked positions with a pushpin. HOLE SAW ELECTRIC DRILL UTILITY KNIFE...
  • Page 31 ® Pass the iPod harness connector through the grommet. GROMMET 50. Move the front console close to the car. Pass ® the iPod harness connector through the cut hole and install the grommet in the cut hole. ® iPod HARNESS CONNECTOR FRONT CONSOLE...
  • Page 32: Check After Installation

    Check After Installation Check the operation of the ipod adapter according to the provided Owner’s Manual. Check that all wire harnesses are routed properly and all connectors are plugged in. Reinstall all removed parts. Reconnect the negative (-) cable to the negative terminal of the battery. Turn the radio unit ON.
