INSTALLATION
INSTRUCTIONS

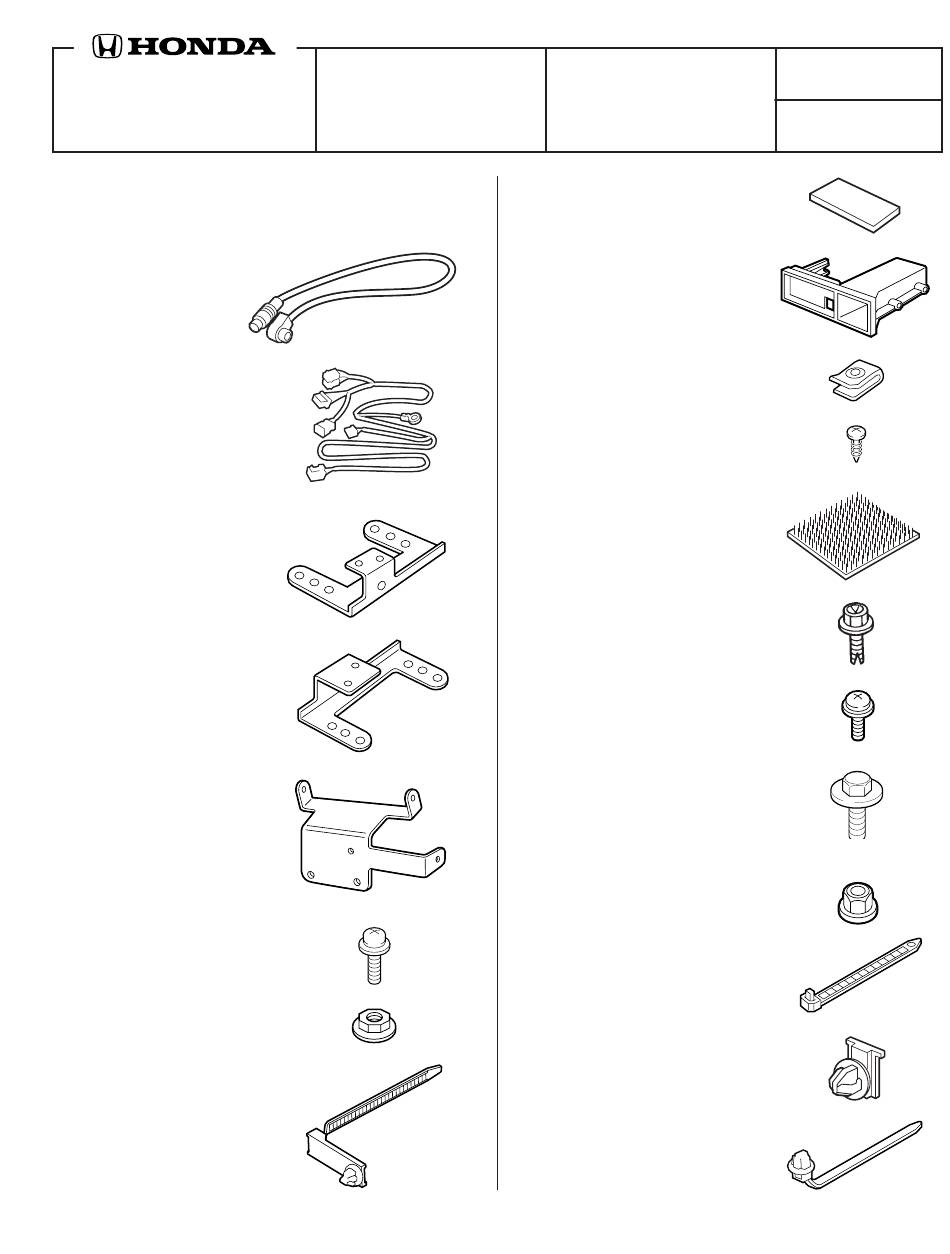

PARTS LIST
XM Radio Attachment Kit (sold separately):
P/N 08B15-SDN-100
DIN cable
XM radio harness
Upper bracket
Lower bracket
Modulator bracket
2 Washer-screws, 5 x 10 mm
2 Flange nuts, 5 mm
3 Off-set wire ties with clip
© 2004 American Honda Motor Co., Inc - All Rights Reserved.
Accessory
XM RADIO SYSTEM
Double-sided adhesive tape
Display unit pocket
Clip nut
3 Self-tapping screws
Fastener
Ground bolt (gold)
6 Washer-screws, 4 x 8 mm
2 Washer-bolts, 6 x 12 mm
4 Flange nuts, 4 mm
30 Wire ties
Connector clip
8 Wire tie with clips (two not used)
AII 27573 (0410)
Application
2005 ACCORD 2-DOOR
(LX/EX L4, LX V6)
Publications No.
AII 27573
Issue Date
OCT 2004
1 of 22
08B15-SDA-1001-91
Advertisement
Related Manuals for Honda 08B15-SDN-100
Summary of Contents for Honda 08B15-SDN-100
- Page 1 30 Wire ties 2 Flange nuts, 5 mm Connector clip 3 Off-set wire ties with clip 8 Wire tie with clips (two not used) 1 of 22 © 2004 American Honda Motor Co., Inc - All Rights Reserved. AII 27573 (0410) 08B15-SDA-1001-91...
- Page 2 P/N 08A15-1E1- 000 Player base-bracket Display unit Player panel FM modulator unit Receiver unit Pocket Owner's Manual BUS cable (Used on vehicles without Navigation) 2 of 22 AII 27573 (0410) © 2004 American Honda Motor Co., Inc - All Rights Reserved.
- Page 3 Push pin Vinyl tape Drill 3 mm and 10 mm Drill bits Touch-up paint Eye protection (face shield, safety goggles, etc.) Masking tape 3 of 22 © 2004 American Honda Motor Co., Inc - All Rights Reserved. AII 27573 (0410)
-
Page 4: Installation
(if equipped), and remove the trim ring. 2206032K SHIFT BOOT RETAINING RETAINING CLIPS (2) CLIPS (4) TRIM RING SEAT HEATER CONNECTOR (if equipped) 2206112K 4 of 22 AII 27573 (0410) © 2004 American Honda Motor Co., Inc - All Rights Reserved. - Page 5 CLIP ILLUMINATION BULB LEFT INNER COVER RETAINING RIGHT INNER CLIPS (2) COVER 2730010K POCKET CIGARETTE OPENING LIGHTER VEHICLE HOOK HARNESS CONNECTOR CONNECTOR 2226010K 5 of 22 © 2004 American Honda Motor Co., Inc - All Rights Reserved. AII 27573 (0410)
- Page 6 Position the left and right 2306021T player brackets on the display module pocket and RIGHT PLAYER pocket, and install five self-tapping screws. SUBBRACKET 6 of 22 AII 27573 (0410) © 2004 American Honda Motor Co., Inc - All Rights Reserved.
- Page 7 Position the left and right player brackets on the display module pocket and player, and reinstall the four washer-screws. Install the three self-tapping screws to secure the display module pocket. 7 of 22 © 2004 American Honda Motor Co., Inc - All Rights Reserved. AII 27573 (0410)
- Page 8 (supplied with audio DISPLAY DISPLAY attachment kit) UNIT UNIT POCKET AUDIO CABLE AUDIO 2N28110M SUBHARNESS SUBHARNESS CABLE CABLE CONNECTOR CONNECTOR 200 mm 2306061T 8 of 22 AII 27573 (0410) © 2004 American Honda Motor Co., Inc - All Rights Reserved.
- Page 9 Routing the XM Radio Harness 20. Remove the beverage holder (pull up to release the six retaining clips). RETAINING RETAINING CLIPS (2) CLIPS (4) BEVERAGE HOLDER 2206050K 9 of 22 © 2004 American Honda Motor Co., Inc - All Rights Reserved. AII 27573 (0410)
- Page 10 23. If equipped, remove the driver’s dashboard under cover (release the three retaining clips, one pin, and one holder). HOLDER DRIVER’S DASHBOARD RETAINING 2205020T UNDER COVER CLIPS (3) 10 of 22 AII 27573 (0410) © 2004 American Honda Motor Co., Inc - All Rights Reserved.
- Page 11 26. Attach the fuse labels to the fuse cases on the 29. Loosely attach the XM radio harness to the XM radio harness. vehicle harness with three wire ties. 11 of 22 © 2004 American Honda Motor Co., Inc - All Rights Reserved. AII 27573 (0410)
- Page 12 WASHER- BRACKET SCREW MASKING 4 x 8 mm TAPE WASHER- SCREW HOLE OF THE MODULATOR PLAYER BASE BRACKET BRACKET 2506010T 3605071M CONNECTOR CLIP 12 of 22 AII 27573 (0410) © 2004 American Honda Motor Co., Inc - All Rights Reserved.
- Page 13 FM modulator, and secure the excess cable to the vehicle harness with two wire ties. FM MODULATOR UNIT HARNESS CONNECTOR 3609041M XM RADIO HARNESS 13 of 22 © 2004 American Honda Motor Co., Inc - All Rights Reserved. AII 27573 (0410)
- Page 14 2306131T GROMMET SCREW studs from the left and right player subbrackets, and install the 6 mm flange nuts. Tighten the flange nuts securely. 14 of 22 AII 27573 (0410) © 2004 American Honda Motor Co., Inc - All Rights Reserved.
- Page 15 13. Remove the LEFT REAR SEAT CUSHION masking tape. CLIP LATCH PLAYER PANEL SELF- TAPPING SCREW 2306141T (Reuse.) 2527030T RIGHT REAR SEAT BACK 15 of 22 © 2004 American Honda Motor Co., Inc - All Rights Reserved. AII 27573 (0410)
- Page 16 (Remove.) SELF-TAPPING HOOKS (3) 2527061T 2527073T 58. Remove the right side trunk liner (three self- tapping hooks, one threaded hook and one clip). 16 of 22 AII 27573 (0410) © 2004 American Honda Motor Co., Inc - All Rights Reserved.
- Page 17 XM radio harness and the DIN cable to the vehicle harness with two wire ties in the areas shown. XM RADIO HARNESS AND DIN CABLE WIRE TIE 3609010M 17 of 22 © 2004 American Honda Motor Co., Inc - All Rights Reserved. AII 27573 (0410)
- Page 18 Clean the edge of the rear shelf, and attach one cushion tape to the edge of the rear shelf. REAR SHELF CUSHION TAPE ANTENNA ANTENNA CABLE HIGH-MOUNT BRAKELIGHT 3619111M OPENING 18 of 22 AII 27573 (0410) © 2004 American Honda Motor Co., Inc - All Rights Reserved.
- Page 19 Remove any burrs from the edges of the groove. BRAKELIGHT CASE Cut. 5 mm ANTENNA CABLE 3620050M VEHICLE HARNESS CLIP 3619071M 19 of 22 © 2004 American Honda Motor Co., Inc - All Rights Reserved. AII 27573 (0410)
- Page 20 73. Using isopropyl alcohol on a shop towel, clean the bonding surface on the panel edge, attach one EPT sealer to the panel edge in the area shown. 20 of 22 AII 27573 (0410) © 2004 American Honda Motor Co., Inc - All Rights Reserved.
- Page 21 ANTENNA CABLE CABLE 6 x 12 mm 6 x 12 mm XM RADIO WASHER- WASHER- RECEIVER HARNESS BOLT BOLTS (2) UNIT 3619080M 3619092M 21 of 22 © 2004 American Honda Motor Co., Inc - All Rights Reserved. AII 27573 (0410)
- Page 22 Pull up on the driver’s window switch to close the window completely, and hold the switch for 2 seconds or more. • Test the window AUTO up function. 2219080T 22 of 22 AII 27573 (0410) © 2004 American Honda Motor Co., Inc - All Rights Reserved.
