Kramer DIP-20 Quick Start Manual

Scan for full manual
Step 1: Check what's in the box

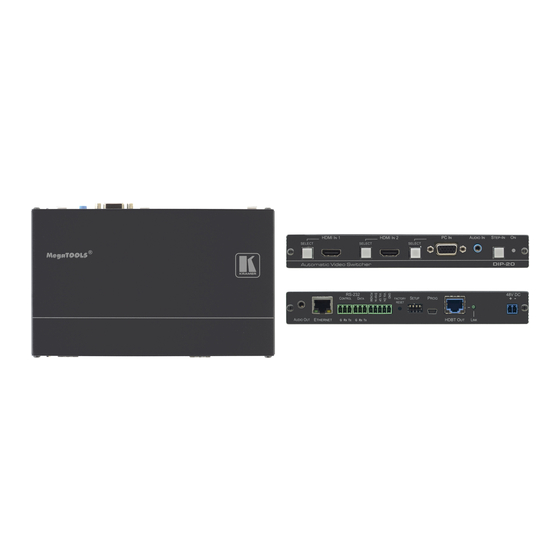

DIP-20 Automatic Video Switcher
1 Power adapter (48V)
Step 2: Mount DIP-20
Install DIP-20 using one of the following methods:
•
Attach the rubber feet and place the unit on a flat surface.
•
Fasten a bracket (included) on each side of the unit and attach it to a flat surface
www.kramerav.com/downloads/DIP-20
(see
•
Mount the unit in a rack using the recommended rack adapter
www.kramerav.com/product/DIP-20
(see
Step 3: Connect inputs and outputs
Always switch OFF the power on each device before connecting it to your DIP-20. For best results, we recommend that you
always use Kramer high-performance cables to connect AV equipment to the DIP-20.
DIP-20 Quick Start
DIP-20 Quick Start Guide
This guide helps you install and use your
Go to www.kramerav.com/downloads/DIP-20
upgrades are available.
).
).
DIP-20 for the first time.
to download the latest user manual and check if firmware
1 Bracket set
1 Quick start guide
• Ensure that the environment (e.g., maximum ambient temperature &
air flow) is compatible for the device.
• Avoid uneven mechanical loading.
• Appropriate consideration of equipment nameplate ratings should be
used for avoiding overloading of the circuits.
• Reliable earthing of rack-mounted equipment should be maintained.
• Maximum mounting height for the device is 2 meters.
P/N: 2 9 0 0 - 3 0 1 0 7 1 QS
4 Rubber feet
Rev: 9
