4. OPERATION

The StackMaster TX12 normally requires no intervention beyond
occasionally monitoring the Power and Status LEDs.

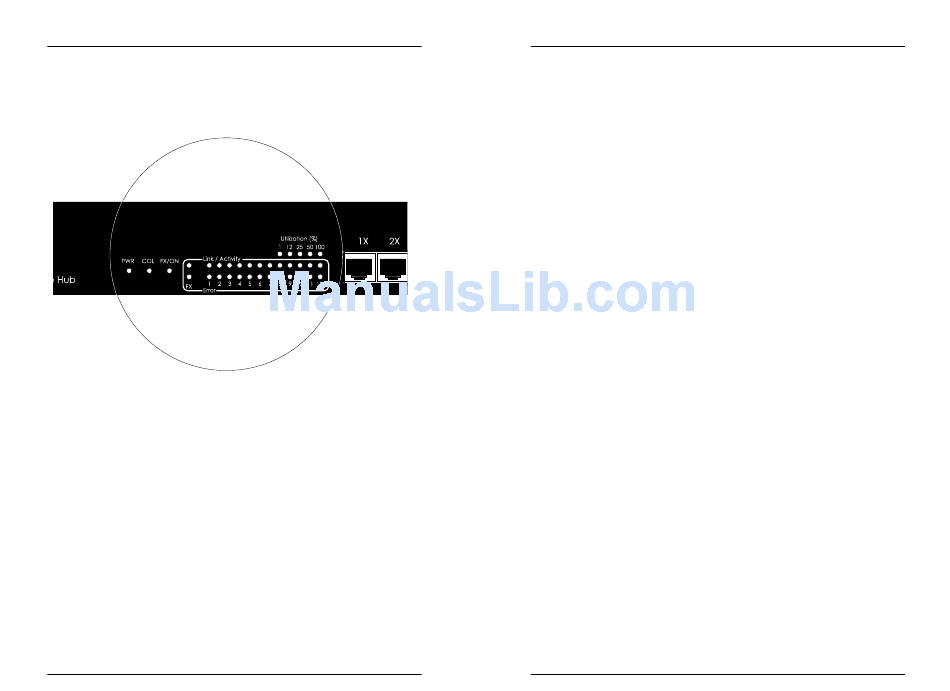

Status LEDs
Status LEDs are located at the front of the StackMaster TX12.
P Illuminated green: Hub powered ON.
OWER
U Iilluminated green 1%, 8%, 16%, 32%, or 64%
TILIZATION
network activity
C Illuminated amber: Collision detected during
OLLISION
data transmission on ANY port.
L /A Illuminated green: Port link established.
INK CTIVITY
Flashing green: Data being received.
E Flashing yellow: Error detected on port. OR
RROR
port partitioned and isolated.
11 StackMaster™ TX12

2. SITE CONSIDERATIONS

The site for the StackMaster TX12 hub must provide:
• AC power outlet for each hub
• Adequate ventilation
• Standard environmental conditions
• Isolation from electrical noise, including radio transmitters
and broadband amplifiers, motors, high power electrical
lines, or fluorescent light fixtures.
Additionally:
• The twisted pair cables should not run in the same conduit
with power line cables
• Phone lines should be separated from data cables
• Flat or "silver satin" wires should not be used.
And:
• Since the StackMaster TX12 functions as an Ethernet
Repeater, the entire installation should comply with the IEEE
Ethernet 802.3 specification.
100BASE-TX 12-Port Stackable Hub 4
