COMPLIANCE INFORMATION

UL Listed
C-UL Listed (Canada)
CISPR/EN55022 Class A
FCC Regulations
This equipment has been tested and found to comply with the limits for a class A digital device, pursuant
to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference, in which case the user will be
required to correct the interference at the user's own expense.
Canadian Regulations
This digital apparatus does not exceed the Class A limits for radio noise for digital apparatus set out on
the radio interference regulations of the Canadian Department of Communications.
Le présent appareil numérique n'émet pas de bruits radioélectriques dépassant les limites applicables
aux appareils numériques de la class A prescrites dans le Règlement sur le brouillage radioélectrique
édicté par le ministère des Communications du Canada.
European Regulations
Warning
This is a Class A product. In a domestic environment this product may cause radio interference in which
case the user may be required to take adequate measures.
Achtung !
Dieses ist ein Gerät der Funkstörgrenzwertklasse A. In Wohnbereichen können bei Betrieb dieses Gerätes
Rundfunkstörungen auftreten, in weichen Fällen der Benutzer für entsprechende Gegenmaßnahmen
werantwortlich ist.
Attention !
Ceci est un produit de Classe A. Dans un environment domestique, ce produit risque de créer des
interférences radioélectriques, il appartiendra alors à l'utilsateur de prende les measures spécifiques
appropriées
VCCI Class 1 Compliance
This equipment is in the 1st Class category (information equipment to be used in commercial and/or
industrial areas) and conforms to the standards set by the Voluntary Control Council For Interference by
Data Processing Equipment and Electronic Office Machines aimed at preventing radio interference in
commercial and/or industrial areas. When used in a residential area or in an adjacent area thereto,
interference may be caused to radio and TV receivers, etc. Read the instructions for correct handling.
CAUTION: RJ connectors are NOT INTENDED FOR CONNECTION TO THE
PUBLIC TELEPHONE NETWORK. Failure to observe this caution could result in
damage to the public telephone network.
Der Anschluss dieses Gerätes an ein öffentlickes Telekommunikationsnetz in den EG-Mitgliedstaaten
verstösst gegen die jeweligen einzelstaatlichen Gesetze zur Anwendung der Richtlinie 91/263/EWG zur
Angleichung der Rechtsvorschriften der Mitgliedstaaten über Telekommunikationsendeinrichtungen
einschliesslich der gegenseitigen Anerkennung ihrer Konformität.
Trademark Notice
All registered trademarks and trademarks are the property of their respective owners.
Copyright Restrictions
© 1999 TRANSITION Networks.
All rights reserved. No part of this work may be reproduced or used in any form or by any means –
graphic, electronic, or mechanical – without written permission from TRANSITION Networks.
Printed in the U.S.A.

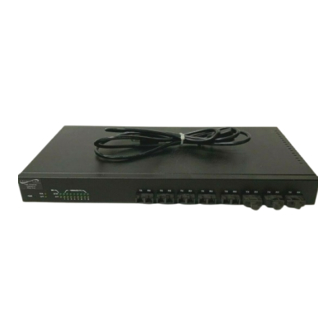

Unmanaged Fiber Hub with AUI, BNC or Fiber Uplink
The rack-mountable E-FL-HB-0800 and E-FL-HB-0400 series unmanaged
Ethernet™ fiber hubs allow the network administrator to set up network
workgroups connected over fiber and to install an OPTIONAL backbone
uplink adapter connection to the workgroups through 10BASE-5 AUI,
10BASE-2 BNC OR 10BASE-FL ST fiber connectors.
E-FL-HB-0800, E-FL-HB-0800(SC)
BB
PWR
STAT
COL
ACT
1
The E-FL-HB-0800 hub provides eight (8) Ethernet™ ST OR SC fiber
connections to terminal devices plus space at the back for an optional
backbone uplink adapter.
E-FL-HB-0400, E-FL-HB-0400(SC)
10BASE-FL
BB
PWR
STAT
COL
ACT
1
The E-FL-HB-0400 hub provides four (4) Ethernet™ ST OR SC fiber
connections to terminal devices plus space at the back for an optional
backbone uplink adapter.
BACKBONE UPLINK ADAPTERS Optional devices ordered separately that, when
installed, provide one of the following Ethernet
MA0A
MA0B
MA0F
33160.A
Ethernet
10BASE-FL
E-FL-HB-0800, E-FL-HB-0400
USER'S GUIDE
10BASE-FL
1
2
3
2
3
4
5
6
7
8
2
3
4
backbone uplink connections:
AUI connector to transceiver or to 10BASE-5 "thick-net" coaxial cable
BNC connector to 10BASE-2 "thin-net" coaxial cable
ST connector to multimode fiber
E-FL-HB-0x00 in the Network . . . . .2
Installation . . . . . . . . . . . . . . . . . . . .4
Operation . . . . . . . . . . . . . . . . . . . .11
Fault Isolation and Correction . . . .12
Cable Specifications . . . . . . . . . . . .14
Technical Specifications . . . . . . . . .15
Compliance Information . . . . . . . . .16
Minneapolis, MN 55344 USA
4
5
6
7
8
1
2
3
4

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the E-FL-HB-0400 and is the answer not in the manual?

Questions and answers

Summary of Contents for Transition Networks E-FL-HB-0400

  • Page 1: Compliance Information

    E-FL-HB-0400, E-FL-HB-0400(SC) 10BASE-FL STAT The E-FL-HB-0400 hub provides four (4) Ethernet™ ST OR SC fiber connections to terminal devices plus space at the back for an optional backbone uplink adapter. BACKBONE UPLINK ADAPTERS Optional devices ordered separately that, when...
  • Page 2: Technical Specifications

    E-FL-HB-0400(SC) Regulation: EMC Directive 89/336/EEC Purpose: To declare that the E-FL-HB-0800 or E-FL-HB-0400 to which this declaration refers is in conformity with the following standards. EMC-CISPR 22: 1985 Class A; EN 55022: 1988 Class A; EN 50082-1:1992; EN 60950 A4:1997; IEC 801.2, IEC 801.3, and IEC 801.4; IEC 950 I, the undersigned, hereby declare that the equipment specified above conforms to the above Directive(s) and Standard(s).
  • Page 3: Cable Specifications

    CABLE SPECIFICATIONS 10BASE-2 Cable Specifications 10BASE-2 CABLE CHARACTERISTICS: Cable type: Stranded Coaxial RG58 (ThinNet) Impedance: Mutual Capacitance: 24 pF/ft ±20% @ 10 MHz Maximum Cable Length: 185 meters (610 feet) Maximum number network connections: Minimum distance between connections: 0.5 meters (1.6 feet) Terminate 10BASE-2 cable at one end using a 50 ohm terminator and at the other end using a 50 ohm terminator grounded to earth ground.
  • Page 4: Installation

    INSTALLATION Optionally Install Backbone Uplink Adapter WARNING: Remove AC line cord from power source before installing backbone uplink adaptor in E-FL-HB-0x00. Failure to observe this warning could result in personal injury or death. CAUTION: Wear a grounding device and observe electrostatic discharge precautions when installing backbone uplink adaptor in the E-FL-HB-0x00.
  • Page 5: Fault Isolation And Correction

    FAULT ISOLATION and CORRECTION If the E-FL-HB-0x00 fails, isolate and correct the fault by determining the answers to the following questions and then taking the indicated action: Is the P(o)W(e)R LED on the E-FL-HB-0x00 illuminated? • Is the power cord properly installed in the E-FL-HB-0x00 and in the grounded AC outlet? •...
  • Page 6: Operation

    Optionally Connect to Backplane THROUGH AUI UPLINK NOTE: Refer to 5-4-3 rule (page 3) to keep network configuration within acceptable bounds. Earth Ground 50 Terminator 10BASE-FL STAT USING TRANSCEIVER NOTE: Refer to transceiver documentation for detailed specifications and instructions. Locate AUI uplink adapter installed at E-FL-HB-0x00 back. (See page 4.) Locate IEEE 802.3 compliant transceiver with male AUI connector and with required network media connector.
  • Page 7 Power the E-FL-HB-0x00 NOTE: When the hub is connected to an AC outlet supplying 100-240VAC at 50-60 Hz, the hub automatically powers ON To power ON the E-FL-HB-0x00: Locate power receptacle at back of E-FL-HB-0x00. Plug unit end (female) of power cord into E-FL-HB-0x00 power receptacle.
  • Page 8 Connect male TX and RX cable connectors at other end of cable to RX and TX connectors, respectively, on 802.3 compliant 10BASE-FL network device. Set SWITCH 1 (located on the 10BASE-FL uplink adapter) to enable or to disable the LinkALERT™ function. (UP) Enables the LinkALERT SWITCH Enables standard Link Integrity Test.
