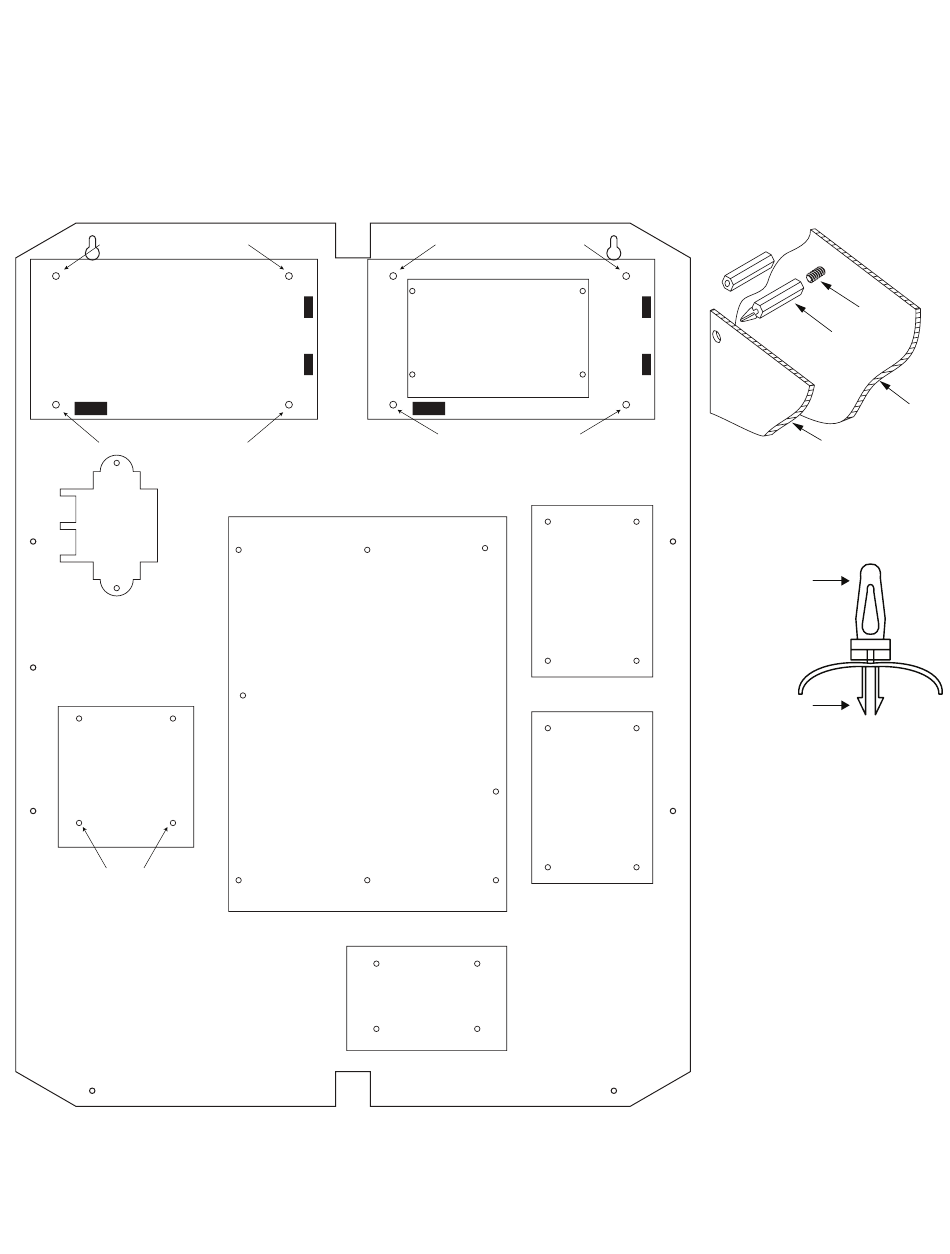

Fig. 2 - Altronix Trove Series Installation Manual

1. Fasten metal and snap on standoffs (provided) to pems which match the hole pattern for Altronix Power Supply/Chargers or Altronix
Sub-Assembly boards (Fig. 2, 2a, pg. 2). Note: Please fasten metal and snap on standoffs in the proper locations (Fig. 2, pg. 2).
2. Mount boards to standoffs utilizing 5/16" pan head screws (provided) (Fig. 2, pg. 2).
3. Mount Altronix T16100 transformer to backplane using two locking nuts (Fig. 2, pg. 2).
4. Mount appropriate Keyscan boards into the correct positions (Fig. 2, pg. 2) by postioning standoffs over appropriate holes on the
backplane and depress down on board to secure standoff to the backplane (Fig. 2b, pg. 2).
5. Fasten backplane to Trove2 enclosure utilizing pan head screws (provided).

Fig. 2

Snap on Standoff Placement
Altronix
Power Supply
Metal Standoff Placement
Altronix
T16100
Keyscan
DPS15
Locknut
- 2 -
TKA2: Configuration of Altronix Power Supply
and/or Sub-Assembly Boards and Keyscan Boards
Keyscan
CA250B,
CA4500B
CA8500B
Keyscan
CIM
Snap on Standoff Placement
Altronix
Power Supply or
Sub-Assembly
Metal Standoff Placement
Keyscan
OCB8
Keyscan
OCB8
Pem
Snap on or
Metal
Standoff
Backplane
Sub-Assembly
Plastic Standoff
pre-mounted into
Keyscan modules
Insert into
TKA2 backplane
Fig. 2a
Fig. 2b
Trove2KA2
