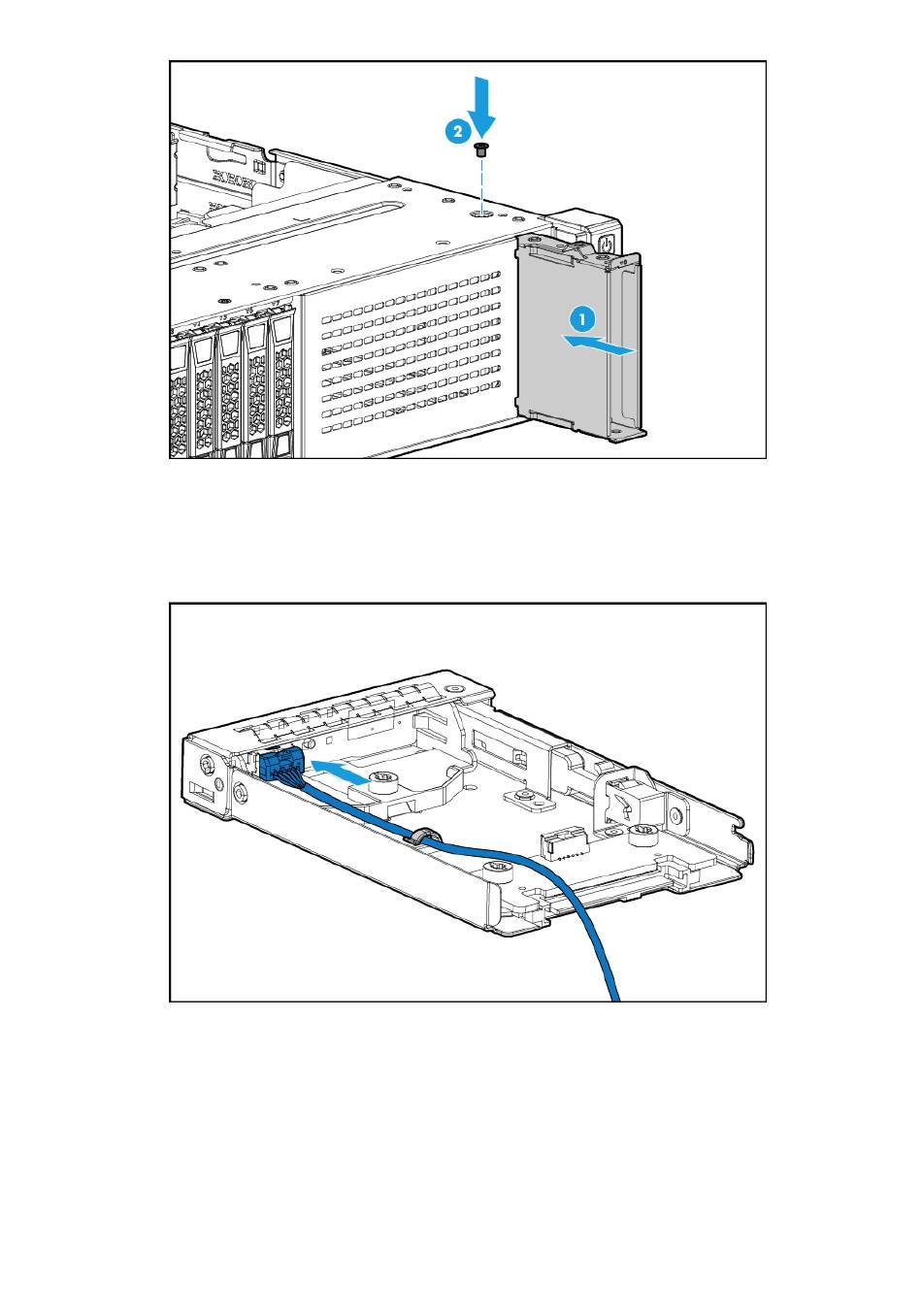

Figure 99 Installing the 1SFF cage
Install the diagnostic panel:
8.
a. Connect the diagnostic panel cable (P/N 0404A0T1) to the diagnostic panel, as shown
in
Figure
100.
Figure 100 Connecting the diagnostic panel cable
b. Push the diagnostic panel into the slot until it snaps into place, as shown in
81
Figure
101.
