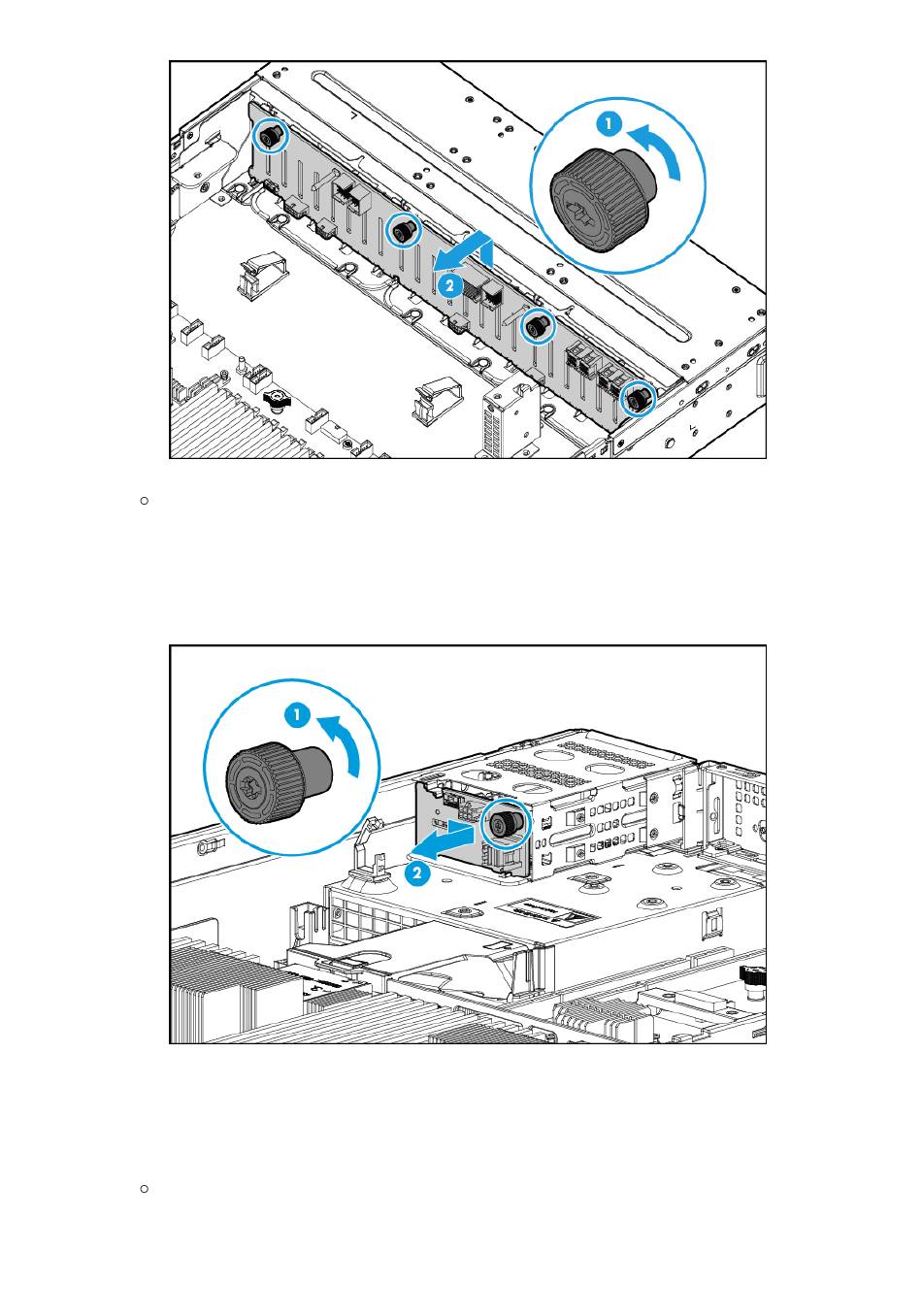

Figure 176 Removing a front 25SFF drive backplane
To remove the rear drive backplane, loosen the captive screw on the backplane, slide the
backplane rightward, and then pull the backplane out of the chassis, as shown in Figure
177.
The removal procedure is the same for the rear 2SFF, 4SFF, 2LFF, and 4LFF drive
backplanes. This procedure uses the rear 2SFF drive backplane.
Figure 177 Removing a rear 2SFF drive backplane

Installing drive backplanes

Install drive backplanes:
1.
To install a front drive backplane, press the backplane against the drive bay, and then fasten
the captive screws, as shown in Figure 178.
The installation procedure is the same for the available front drive backplanes. This
procedure uses the front 25SFF drive backplane.
