H3C UniServer R4900 G3 User Manual page 25

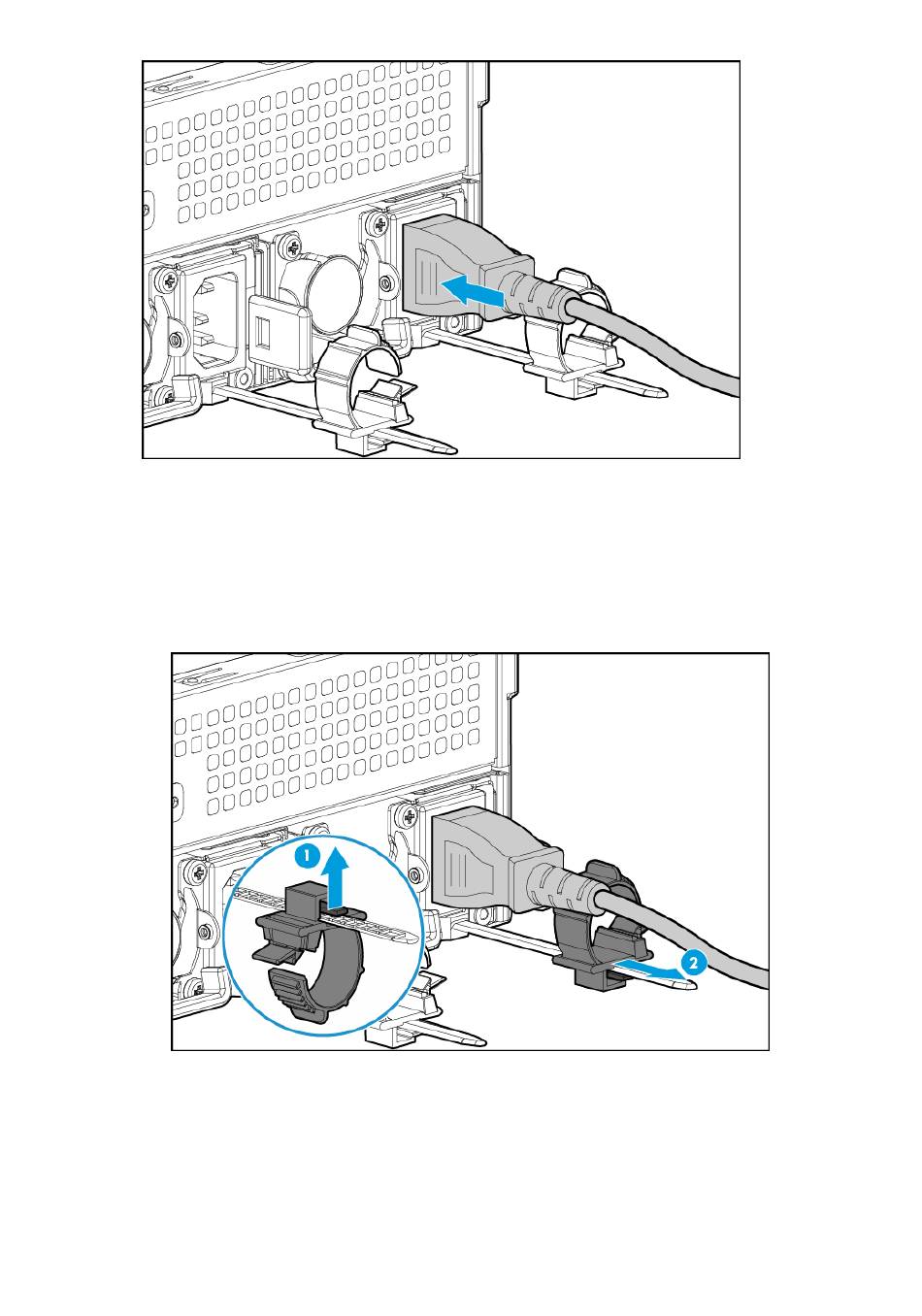

Figure 9 Connecting the AC power cord
Connect the other end of the power cord to the power source, for example, the power strip on
2.
the rack.
Secure the power cord to avoid unexpected disconnection of the power cord.
3.
a. (Optional.) If the cable clamp is positioned too near the power cord that it blocks the power
cord plug connection, press down the tab on the cable mount and slide the clip backward.
Figure 10 Sliding the cable clamp backward
b. Open the cable clamp, place the power cord through the opening in the cable clamp, and
then close the cable clamp, as shown by callouts 1, 2, 3, and 4 in
16
Figure 11.
