Connecting internal cables

Properly route the internal cables and make sure they are not squeezed.

Connecting drive cables

For more information about storage controller configurations, see "Drive configurations and
numbering."

8SFF server

Front 8SFF SAS/SATA drive cabling
Use Table 15
controller depending on the type of the storage controller.
Table 15 8SFF SAS/SATA drive cabling methods
Storage controller
Embedded RSTe RAID controller
Mezzanine storage controller
Standard storage controller

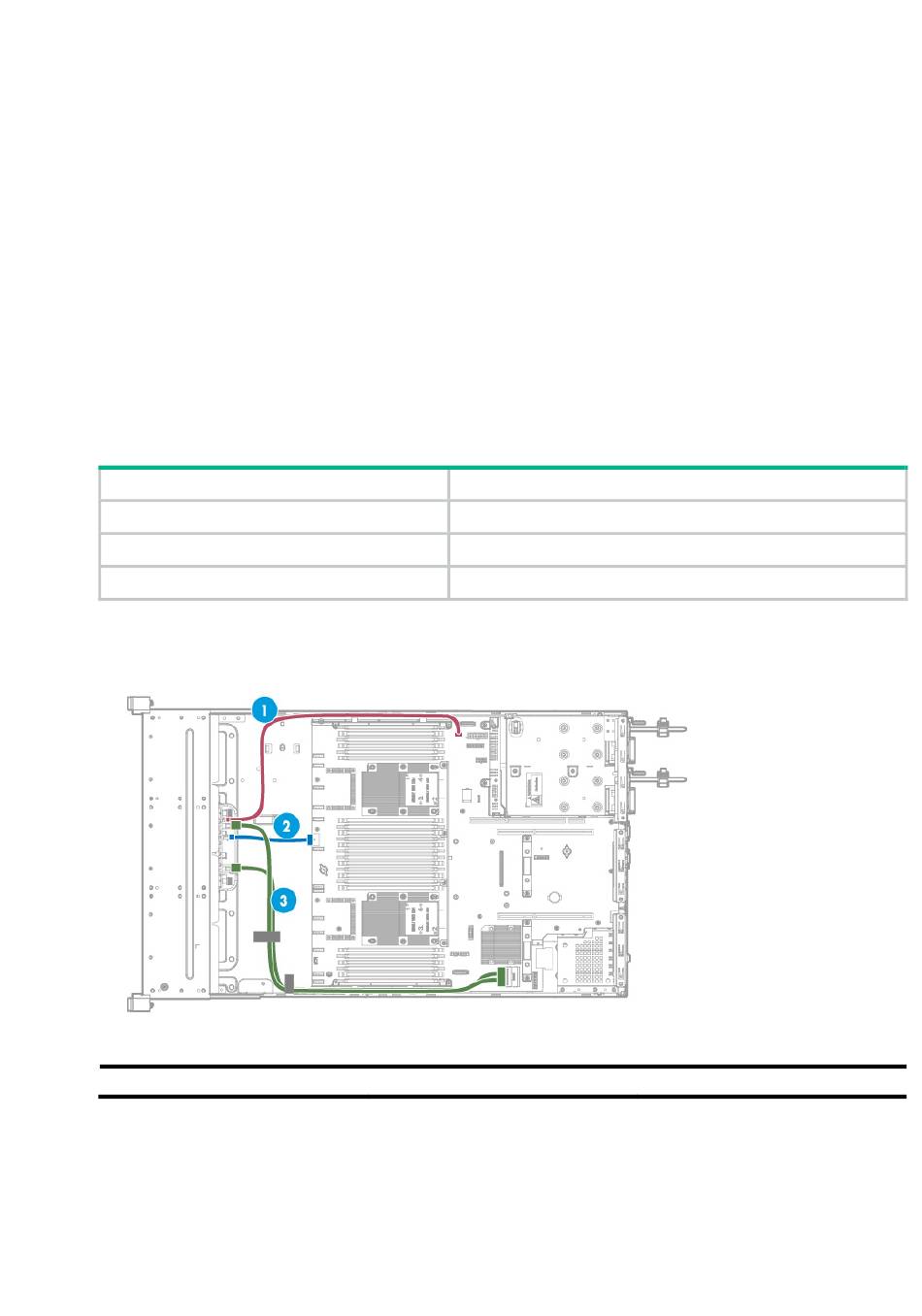

Figure 190 8SFF SATA drive connected to the embedded RSTe RAID controller
(1) AUX signal cable
to select the method for connecting the 8SFF SAS/SATA drive backplane to a storage
(2) Power cord
Cabling method
See Figure 190.
See Figure 191.
See Figure 192.
153
(3) SATA data cable
