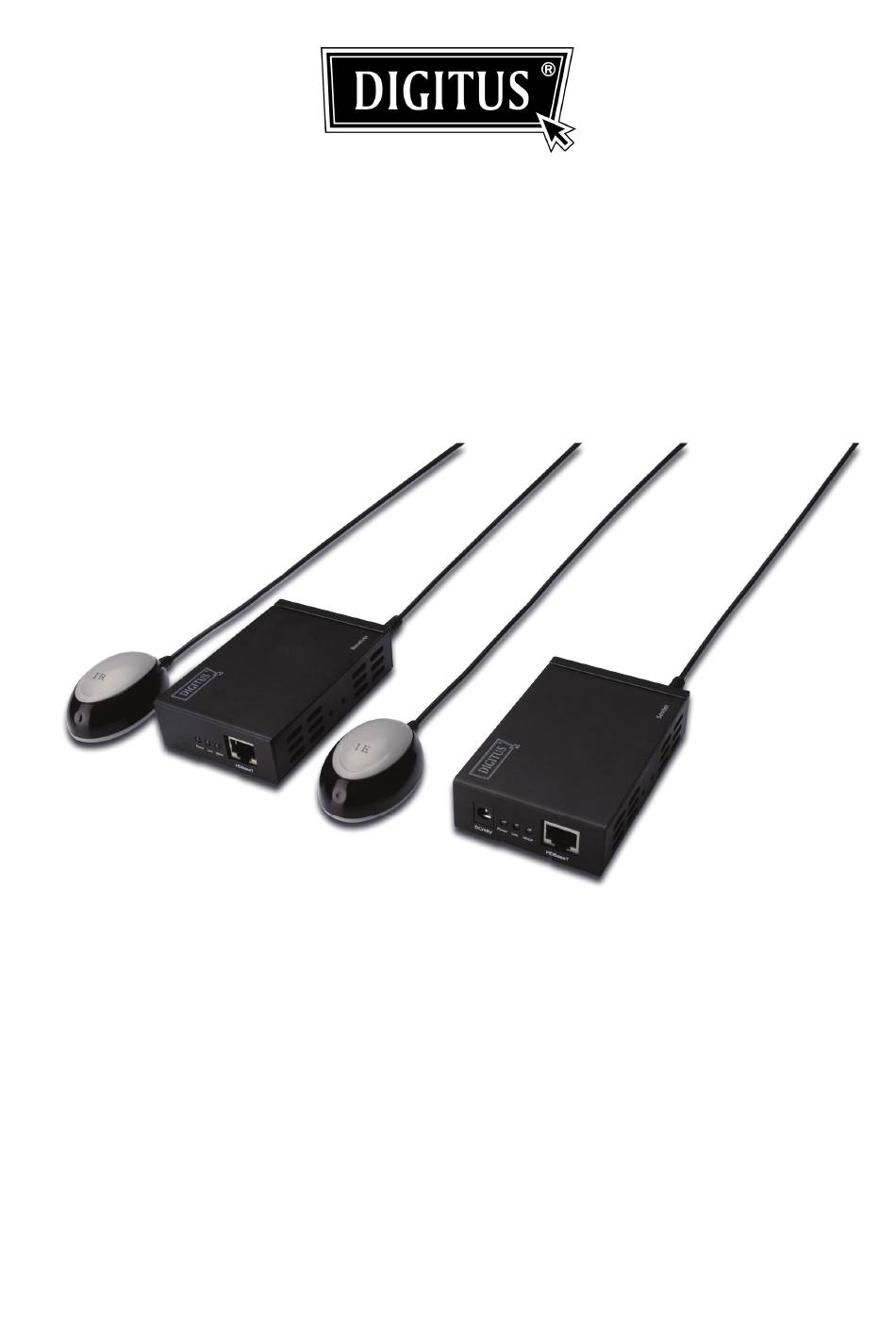

- Page 1 HDMI VIDEO EXTENDER Quick Installation Guide DS-55400...
- Page 2 1. First check product packaging, including: main unit Sender, main unit Receiver, one power adapter (48V 1A), IE, IR, User’s manual; other devices should be prepared: Hi-Def source, HDTV, two HDMI Cables, one Hi-Q Cat5e/6 Cable with Shielding. 2. Connect a Hi-Def source to the Sender with a user-supplied HDMI cable. Connect the HDTV to the Receiver.
- Page 3 5. Connect a cat5e/6 network Cable to the Sender and connect the opposite end of the network cable to the Receiver. 6. Put the plug of the power strip into the wall socket and then plug the other side of the power adapter to the Sender (the Receiver doesn’t need power supply).
