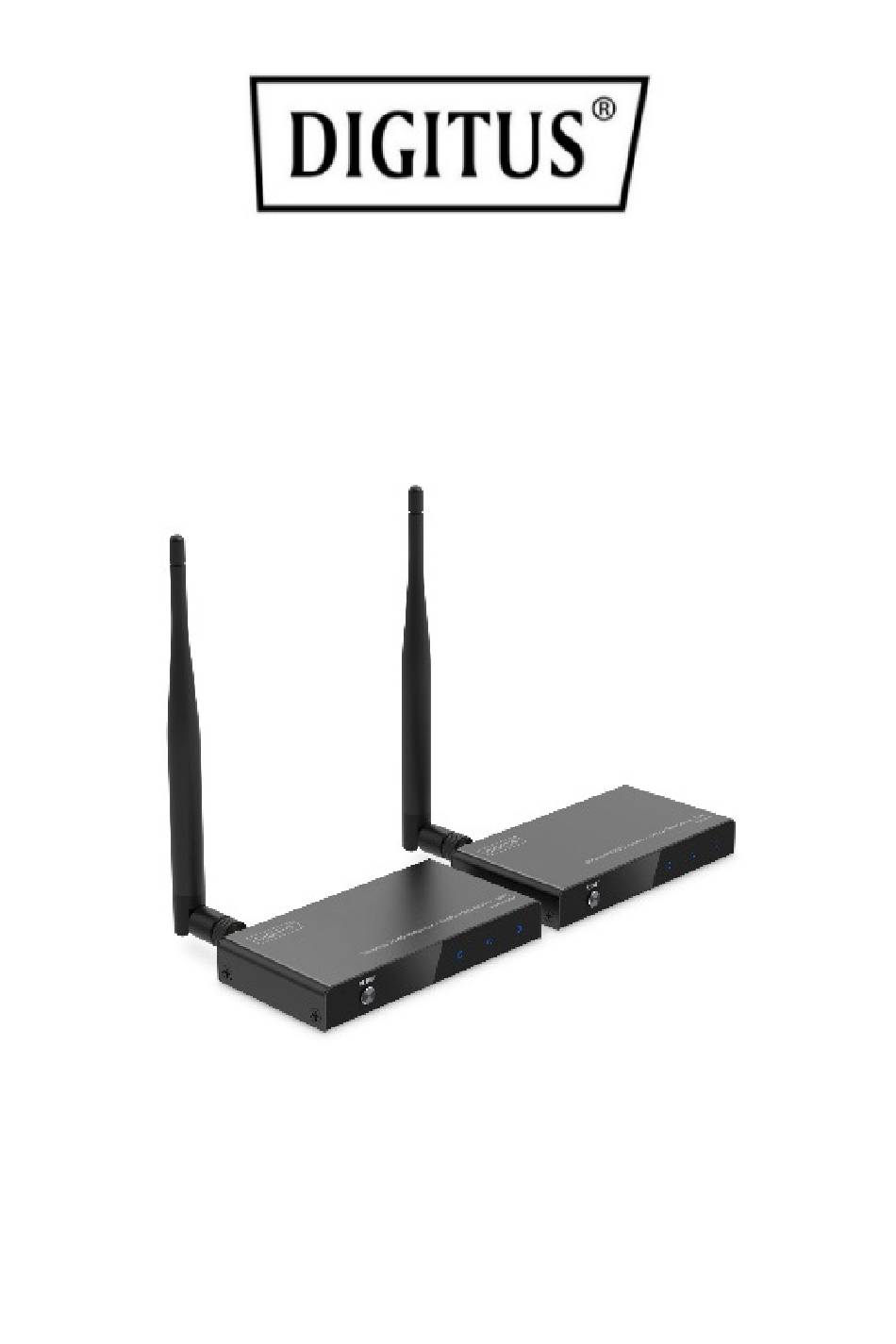

- Page 1 Wireless HDMI Extender / Splitter Set (100 m, 1x4) Quick Installation Guide DS-55346...
-
Page 2: Main Features
1. Introduction Experience ultimate flexibility and performance for the transfer of your Full HD AV signals with our wireless transfer system, which offers a range of up to 100 meters in a 1:1 connection with unobstructed view. Our system supports both Point-to-Point and Multicast (Point-to-Multipoint) transfers, which allows you the freedom of transferring your AV signal to multiple displays at the same time or connecting a single source with various target devices. -
Page 3: Package Content
3. Package Content • 1x Transmitter unit • 1x Receiver unit • 2x Antenna • 2x Power adapter, cable length: 1.2 m • 2 x IR connection cable, 1.2 m • 1x User manual 4. Technical Features Input Port HDMI x 1 Output Port HDMI x 1，LOOP OUT x 1 Wireless Extendsion Distance... -
Page 4: Panel Description
Power Consumption (Max) TX: 3W, RX: 1.5W Dimension(LxWxH) 115x60x18mm Net Weight TX:172g, RX:170g Material Metal 5. Panel Description... - Page 5 INPUT: HDMI Input OUTPUT: HDMI Output DC/5V: DC 5V Input Loop out: HDMI Loop Out Port for Local View Reset: Long Press 10 Seconds to Reset, Short Click to Match the Sender and Receiver IR IN: IR Signal Input Port IR OUT: IR Signal Output Port Power LED Link...
- Page 6 6. Supported formats • Simple Plug and Play, no software installation required • Support 5GHz single frequency wireless A/V transmission • Wireless extension of HDMI up to 100 meters (330 feet) with no obstruction • Compliant with HDCP1.3 • Support highest video resolution 1080p •...
-
Page 7: Connection Diagram
7. Connection Diagram... - Page 8 8. How to set up 1 to 4 connections: The factory setting of Sender and Receiver have matched the signal already, you can connect the input and output devices with this item directly. If the customer wants to connect 2, 3 or 4 receivers, please see below: Step 1: Install antennas for Sender &...
- Page 9 Step 2: By pressing "RESET" button first, the Sender will be connected with power until the Status Led flashes frequently. Then it will take approximately 7s from power on to enter matching mode. The 1.2.3 or 4 Receivers follow the same steps as the Sender. Step 3: When the Status Led of the Receiver (1,2,3,4) flashes frequently, it means it entered the matching mode.
- Page 10 Step 4: Open HDMI male to male cable (Not Included) to match the signal. Step 5: Connect “HDMI IN” of the Sender and “HDMI OUT” of the Receiver (1,2,3,4) with HDMI cable.
- Page 11 Step 6: When the Status Led of the Receiver (1,2,3,4) is permanently on, it means the signal matching is successfully. Step 7: Make sure the Sender and Receiver (1,2,3,4) are not powered.
- Page 12 Step 8: Connect power of the Sender and Receiver (1,2,3,4), then connect HDMI cable to the “INPUT” of the Sender to HDMI sourcing device and the “OUTPUT” of Sender (1,2,3,4) to the display or TV. Step 9: The display or TV will show “Searching TX” about 5s to 35s.
-
Page 13: Troubleshooting
Step 10: Matching successfully. 9. Troubleshooting Problems Causes Solutions No picture after Maybe the sender Follow the matching correct connection and receiver have steps to match the at one room not yet matched signal of the Sender the connection and Receiver No picture after The distance can`t When passing through... - Page 14 The picture is not There may be Please move the stable or the some sources of device closer to the distance is shorter interference in the location where than the same frequency sources of description band at 5GHz that interference with the affect the signal same frequency band transmission of...
