Now a dialog will be pop up. In the dialog, you should Enable QOS, set high priority and
low priority and select a priority class in the list box. For more details, please refer to help
file.
5. Broadcast Storm Control
When the Broadcast Storm Control is enabled, it will be valid. Click main menu->
Config-> Broadcast Control and you can configure the Broadcast Storm Control. For
more details, please read help file.
6. Static MAC Bind
Static MAC Bind can help you control the security of network more efficiently. When it
takes effect, the ports will not learn any new MAC Address. The switch can bind 128
MAC addresses at most. One port can bind several MAC Addresses, but one MAC
address only can be bound by one port. Click main menu->Config->Static MAC Bind,
Remote Smart Switch User Guide

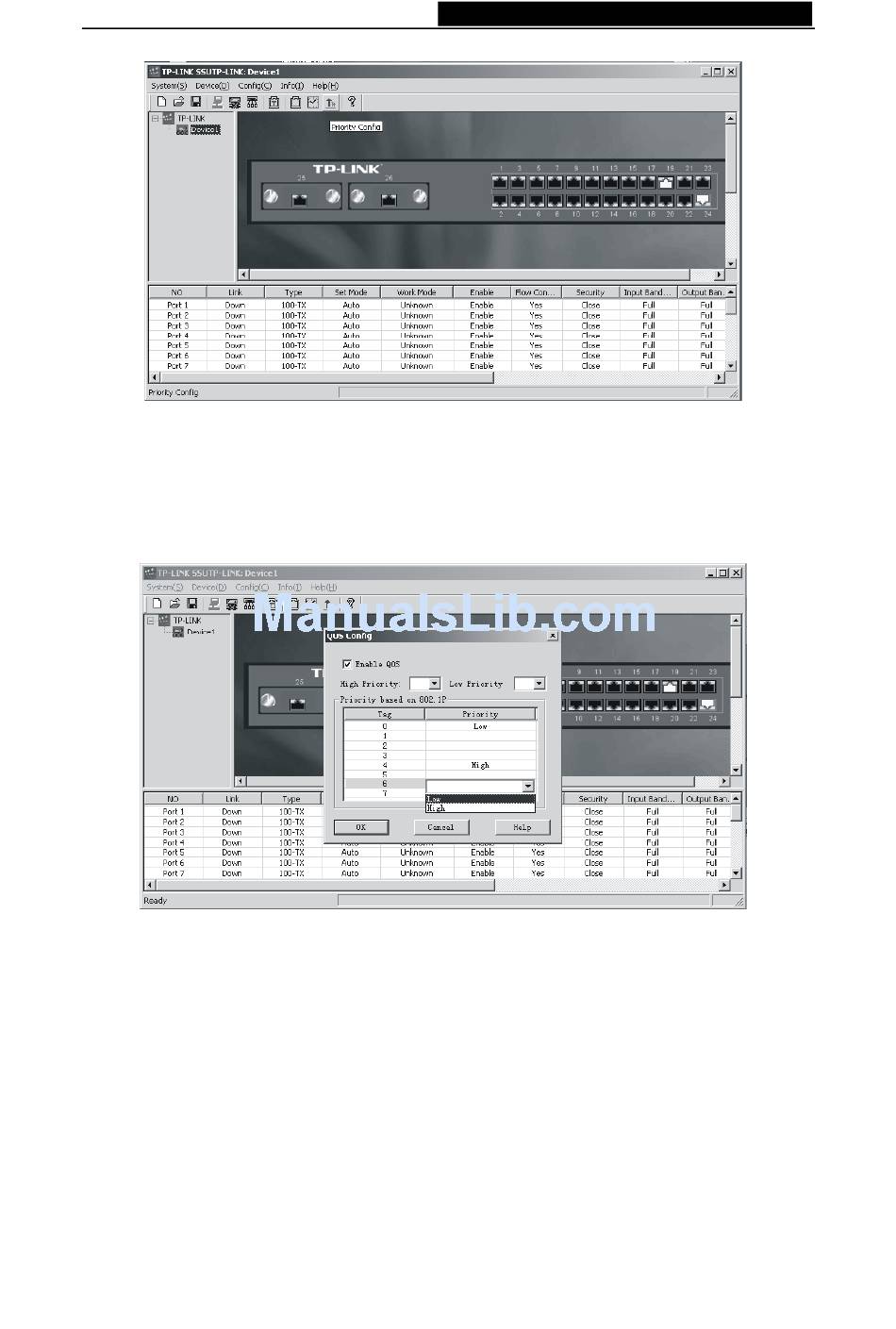

Figure 5-17
Figure 5-18
