TP-Link 24+2/24+2G User Manual page 34

TL-SF2226P+/TL-SL2226P+

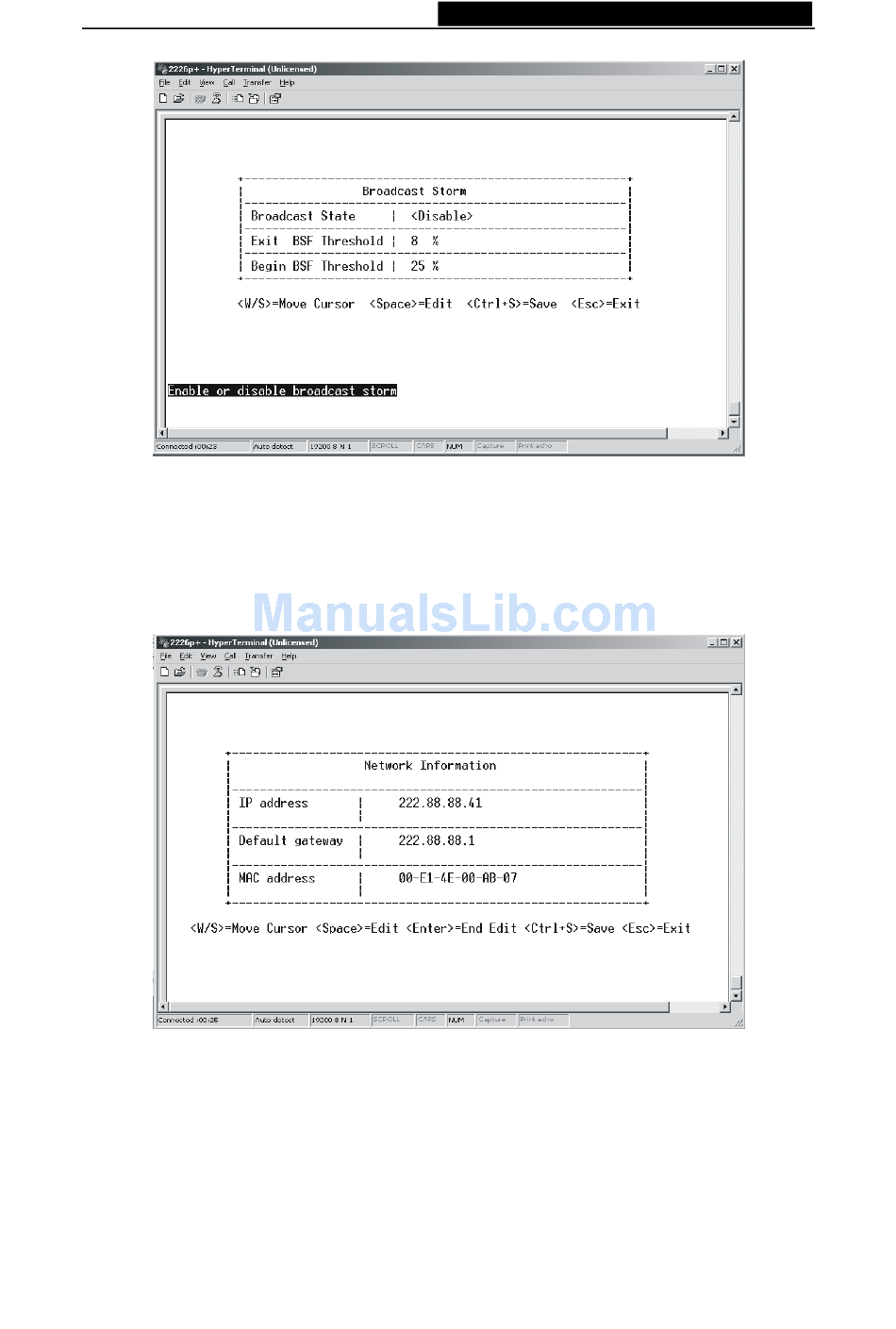

2) Network Config
Network Config interface is as follows, you can change the switch's IP, gateway, you can
not change the switch's MAC address.
Press w or s key to move cursor, press space to edit the switch's IP address, Default
gateway. Input the new IP address and gateway, press enter. If you input a valid IP or
gateway, you will get an error message. If you want to save the configuration, press ctrl +
s and the switch will restart.
Make sure that the network configuration is correct before you save it. If you don't want to
save it, press Esc to quit.
Remote Smart Switch User Guide
Figure 6-16
Figure 6-17
- 31 -
