TL-SF2226P+/TL-SL2226P+
help file.
Now go back to main menu->Config->TRUNK Config->Config Effect.
Only execute this step, the Configuration will be valid. If the TRUNK is not changed, this
menu can't be seen.
3.
Port Config
Click main menu->Config->Port Config or double click a port in the port list box. As
figure 5-16.
Now you can configure each parameter of the port except port priority.
1)
Mode: 10Base-T/100Base-TX Ports
Auto (default): auto-test the speed and negotiate the duplex mode with the
other end.
Remote Smart Switch User Guide

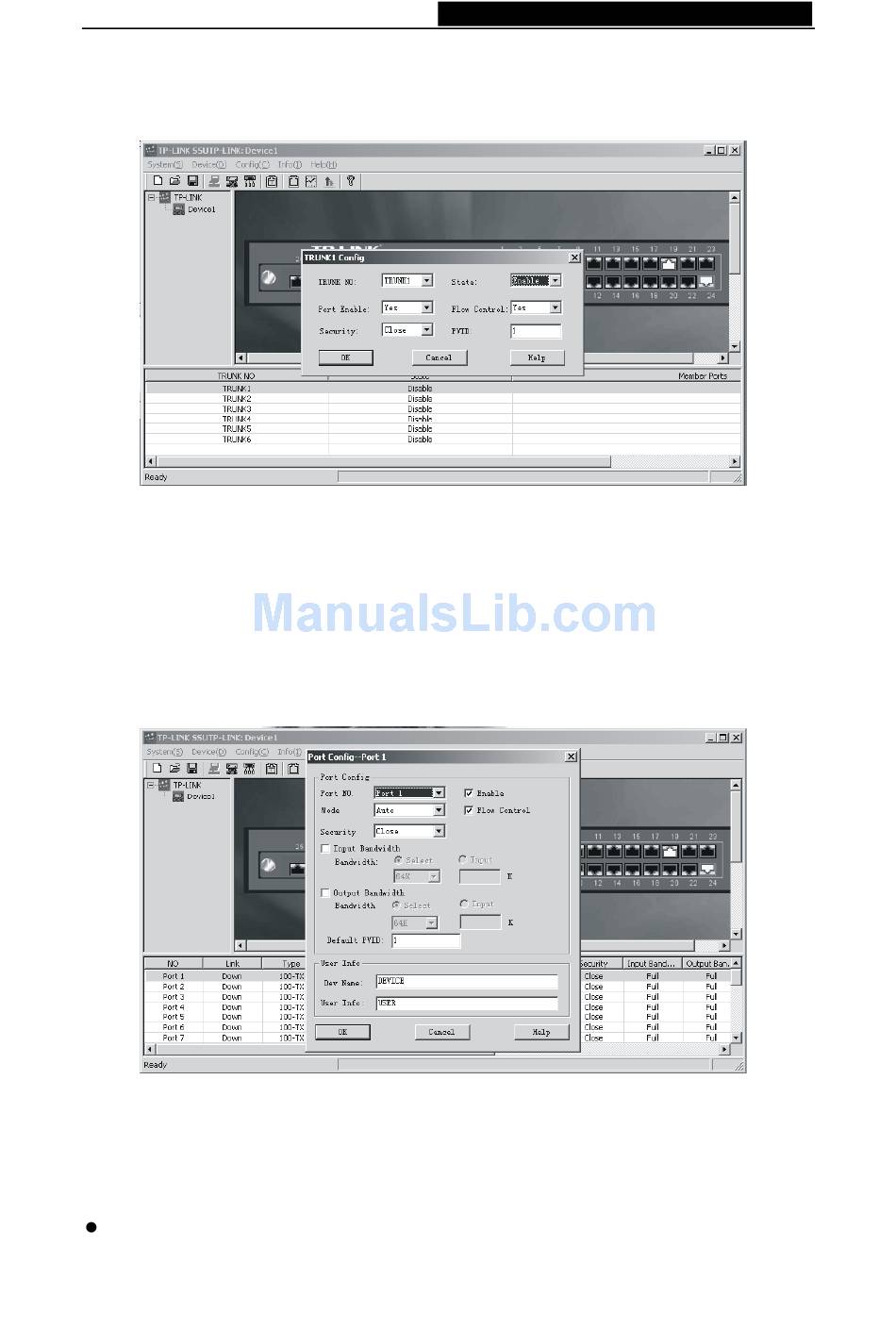

Figure 5-15
Figure 5-16
- 17 -
