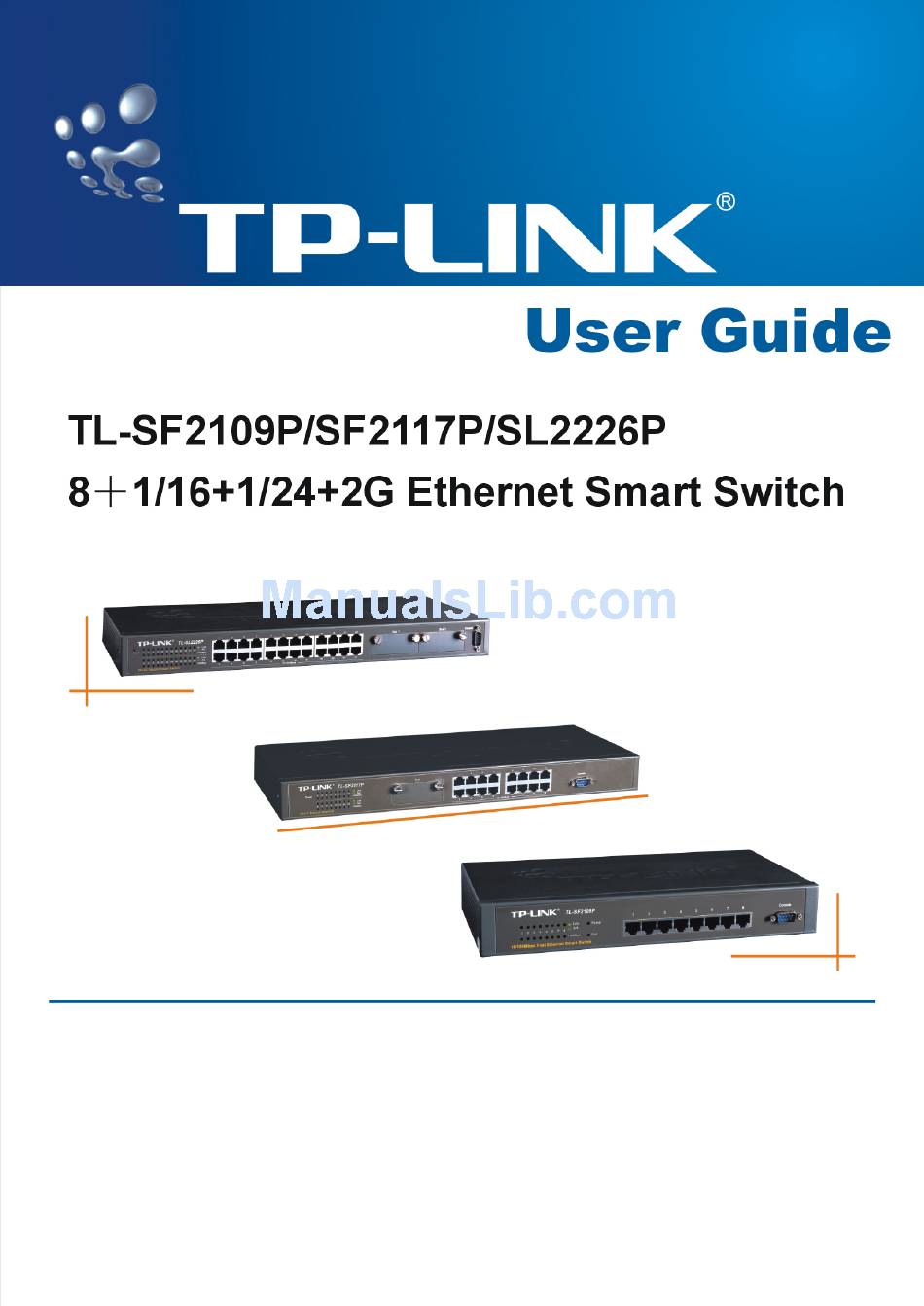

TP-Link TL-SF2109P User Manual

Tp-link ethernet smart switch user guide
Hide thumbs

Advertisement

Quick Links

Advertisement

loading

  Related Manuals for TP-Link TL-SF2109P

  Summary of Contents for TP-Link TL-SF2109P

  • Page 2 Specifications are subject to change without notice. is a registered trademark of TP-LINK Technologies Co., Ltd. Other brands and product names are trademarks or registered trademarks of their respective holders. No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from TP-LINK Technologies Co., Ltd.
  • Page 3: Table Of Contents

    4.6 Priority... 20 4.7 MAC Address Age Time ... 21 4.8 Config effect... 22 4.9 “Save”, “Open” Configuration file ... 23 Appendix A: TL-SF2109P Technical Specification ... 25 General ... 25 Environmental and Physical... 25 Appendix B: TL-SF2117P Technical Specification ... 26 General ...
  • Page 4: Package Contents

    Rack-mount kit for installing the switch in a 19-inch rack Note: If any of the above contents is damaged or missing, please contact the retailer from whom you purchased the TL-SF2109P/TL-SF2117P/TL-SL2226P Ethernet Smart Switch for assistance. Ethernet Smart Switch User Guide...
  • Page 5: Chapter 1: Introduction Of The Product

    TL-SF2109P/TL-SF2117P/TL-SL2226P Chapter 1: Introduction of the Product This chapter simply describes the features of the model of the TL-SF2109/TL-SF2117P /TL-SL2226P smart Switch and back-knowledge of Fast Ethernet Switch. 1.1 Virtual Local Area Network (VLAN) Virtual Local Area Network breaks down the constraint of environment, you can move the workstation freely in the group without change the connection.
  • Page 6 VLAN ( for TL-SF2117P) and 26 Port VLAN ( for TL-SL2226P) Supports Port Mirror (only for TL-SF2117P) Supports Port Trunk, up to 1 Trunk group (for TL-SF2109P) and 8 Trunk group (for TL-SL2226P) Supports Static Priority, TOS and 802.1p Class of Service with 2-level priority...
  • Page 7: Chapter 2: Installation

    TL-SF2109P/TL-SF2117P/TL-SL2226P Chapter 2: Installation 2.1 Mounting the Switch on a Desk Before place the Switch on a desk, attach four rubber footpads to the flutes on the Switch bottom, then lay the Switch on the desktop, where can be have as much as 5kg placed on top.
  • Page 8: Power On

    Ethernet Smart Switch User Guide TL-SF2109P/TL-SF2117P/TL-SL2226P Figure 2-2 Fasten the Switch in the rack 2.3 Power on The Switch is powered by AC power supply. Powering on the Switch, it will automatically initialize and its LED indicators should respond as follows: 1) All of the LED indicators will flash momentarily for one second, which represent a resetting of the system.
  • Page 9: Chapter 3: Identifying External Components

    Chapter 3: Identifying External Components This Chapter describes the front panel, rear panel and LED indicators of the Switch. Cautions: All the pictures are based on the TL-SF2109P in the manual. The others are similar with the TL-SF2109P. 3.1 Front Panel The front panel of the TL- SF2109P consists of switch LED indicators, 8 10/100Mbps RJ-45 ports, and 1 serial port Connect the female of the power cord head here.
  • Page 10: Led Indicators

    LEDs will be flicker with green. Slot: When inserted a UTP/fiber module card, LED is green. If it is turned off, check the connection of the card. (The LED is only in TL-SF2109P) 3.4 Optional Slot Module TL-SL2226P supports the TL-SM201/TL-SM301 serials module cards. TL-SF2109P and TL-SF2117P supply the TL-SM201 serial module cards.
  • Page 11: Chapter 4: Installation And Usage Of The Configuration Software

    4.1 Installation of the SSC All the views in the manual are base on TL-SF2109P, the other switches’ interface will be not the same, only the function is supported, the corresponding icons will be light. The configuration program runs in the window OS (95/98/2000/NT). The software configs the switch by the serial port of the PC.
  • Page 12 TL-SF2109P/TL-SF2117P/TL-SL2226P Input your new path, such as “D:\ Switch\TP-LINK\SSC”, and then press Enter. Click the “Next” button. Ethernet Smart Switch User Guide - 9 -...
  • Page 13 TL-SF2109P/TL-SF2117P/TL-SL2226P Click the “Next” button. Click the “Finish” to finish the installation. Ethernet Smart Switch User Guide - 10 -...
  • Page 14: Usage Of The Ssc

    Escape More details is following: After installation, click Start – Program – TP-LINK – Smart Switch Configuration – Smart Switch Configuration, the desktop display the initialized interface. Assure the power is on. Click the “connect” or the icon of “Link to Switch”.
  • Page 15 Ethernet Smart Switch User Guide TL-SF2109P/TL-SF2117P/TL-SL2226P If the connection is failure, check the power or the serial cable. The program display the follow message. - 12 -...
  • Page 16: Port Status Setting

    TL-SF2109P/TL-SF2117P/TL-SL2226P After connection, the software will read the current configuration of the switch, and display the switch name (TL-SF2109P) automatically, and the connect status is “connected” Cautions:At the time, the “off line” icon will be light, or else it is gray. There are six icons on the right of it.
  • Page 17 Ethernet Smart Switch User Guide TL-SF2109P/TL-SF2117P/TL-SL2226P Every port has its own parameters to be configed. You can only select the lighten choice, not the grey choice. - 14 -...
  • Page 18 In full duplex mode, translating and receiving data can be working at the same time. Default Setting: 100 Base-Tx Full duplex (for TL-SF2109P), Auto negotiation (for TL-SF2117P and TL-SL2226P) Broadcast Storm Filtering: Click it to start the broadcast storm filtering, when the function is enabled, the port will drop the broadcast frames after received 64 continuous broadcast frames.
  • Page 19: Trunk

    TL-SF2109P/TL-SF2117P/TL-SL2226P switch use collision-based back pressure flow control. You can turn off the function, thus there is no flow control. Default Setting: Enable Priority: Priority is a high feature of the switch, the switch with the function can support that the important application can transfer firstly. Port-based priority means every port can set its own priority.
  • Page 20: Vlan

    Ethernet Smart Switch User Guide TL-SF2109P/TL-SF2117P/TL-SL2226P Cautions:When setting TRUNK, the system will set the ports in a TRUNK to 100M full duplex. 4.5 VLAN VLAN is composed of a group of workstations’ multicast domain, which can build up the logic group without change the current topology.
  • Page 21 TL-SF2109P/TL-SF2117P/TL-SL2226P TL-SF2109 supports two methods of VLAN: Port-based VLAN and Tag-based VLAN. TL-SF2117P and TL-SL2226P support only port-based VLAN. Default Setting: All ports in VLAN 1. Port-based VLAN Setting: Click the “VLAN” in menu, or the “VLAN setting” icon; Select VLAN mode to Port VLAN;...
  • Page 22 TL-SF2109P/TL-SF2117P/TL-SL2226P Cautions:Ports in VLAN can exist in other VLANs, and VLAN can have one port, and the port will not communicate to the others. The ports you clicked now are in the same VLAN, you also can delete some ports from the VLAN with click the ports again, such as P4.
  • Page 23: Priority

    TL-SF2109P/TL-SF2117P/TL-SL2226P Setting parameter, pick the PVID and emigration rule in combo box. 4.6 Priority Click the priority button in setting menu, or the “Priority over ToS and VLAN Tag” icon. The Switch support only port-based priority, there are two level priority: Low and High, you can set it in Port Status.
  • Page 24: Mac Address Age Time

    TL-SF2109P/TL-SF2117P/TL-SL2226P means that high priority is first always. 4.7 MAC Address Age Time The MAC Address will auto age out after 5 minutes if it is not updated in MAC address table, this time is aging time. TL-SF2109’s aging time is 300s. TL-SF2117P’s is 0s to 1,048,575s.
  • Page 25: Config Effect

    TL-SF2109P/TL-SF2117P/TL-SL2226P You can select as follows. 4.8 Config effect Write to Switch After finishing setting above, click “write to Switch”, the switch will restart and reserve the results having been configed. Restore factory setting Click the “Recover Factory Configuration” in menu, and it will restore the parameters to default value and restart the switch.
  • Page 26: Save", "Open" Configuration File

    TL-SF2109P/TL-SF2117P/TL-SL2226P 4.9 “Save”, “Open” Configuration file “Save” configuration is that save the result of current configuration to a file. “Open” configuration is that open the last saved file. Ethernet Smart Switch User Guide - 23 -...
  • Page 27 Ethernet Smart Switch User Guide TL-SF2109P/TL-SF2117P/TL-SL2226P - 24 -...
  • Page 28: Appendix A: Tl-Sf2109P Technical Specification

    TL-SF2109P/TL-SF2117P/TL-SL2226P Appendix A: TL-SF2109P Technical Specification General Standards IEEE802.3 10BASE-T IEEE802.3u 100BASE-TX/FX Topology Star Protocol CSMA/CD Ports 8 10/100M Auto-Negotiation RJ45 Ports (Auto MDI/MDIX) 1 Independent Expansion Slot 1 Console (RS232 DB9 Male) Data Transfer Rate Ethernet: 10Mbps (Half Duplex), 20Mbps (Full Duplex);...
  • Page 29: Appendix B: Tl-Sf2117P Technical Specification

    TL-SF2109P/TL-SF2117P/TL-SL2226P Appendix B: TL-SF2117P Technical Specification General Standards IEEE802.3 10BASE-T IEEE802.3u 100BASE-TX/FX Topology Star Protocol CSMA/CD Ports 16 10/100M Auto-Negotiation RJ45 Ports (Auto MDI/MDIX) 1 Independent Expansion Slot 1 Console (RS232 DB9 Male) Data Transfer Rate Ethernet: 10Mbps (Half Duplex), 20Mbps (Full Duplex);...
  • Page 30: Appendix C: Tl-Sl2226P Technical Specification

    TL-SF2109P/TL-SF2117P/TL-SL2226P Appendix C: TL-SL2226P Technical Specification General Standards IEEE802.3 10BASE-T IEEE802.3u 100BASE-TX/FX IEEE802.3ab 1000BASE-T IEEE802.3Z 1000BASE-SX/LX Topology Star Protocol CSMA/CD Ports 8 10/100M Auto-Negotiation RJ45 Ports (Auto MDI/MDIX) 1 Independent Expansion Slot 1 Console (RS232 DB9 Male) Data Transfer Rate Ethernet: 10Mbps (Half Duplex), 20Mbps (Full Duplex);...
  • Page 31: Environmental And Physical

    TL-SF2109P/TL-SF2117P/TL-SL2226P TL-SM301GB Environmental and Physical Dimensions(W×D×H) 17×7.1×1.7in. (440×180×44mm) Operating 0℃~40℃ (32℉~104℉) Temperature Storage Temperature -40~70℃ (-40℉~158℉) Operating Humidity 10%~90% non-condensing Storage humidity 5%~95% non-condensing Ethernet Smart Switch User Guide 1000Base-LX or 1000Base-SX GBIC module - 28 -...
  • Page 32: Appendix D: Contact Information

    Ethernet Smart Switch User Guide TL-SF2109P/TL-SF2117P/TL-SL2226P Appendix D: Contact Information For help with the installation or operation of the TP-LINK TL-SF2109P/2117P or TL-SL2226P Smart Switch, please contact us. support@tp-link.com E-mail: http://www.tp-link.com Website: - 29 -...
