Summary of Contents for TP-Link TL-SE2106
- Page 1 Machine Translated by Google Enterprise Networking Solution Installation Manual 2.5G cloud management switch TL-SE2106 TL- SE2109 TL- SE2420 TL- SE2226 TP-LINK commercial network TP-LINK Business Cloud APP...
-
Page 2: Table Of Contents
Machine Translated by Google Table of contents Chapter 1 Product Introduction—————————————— 01 Product Introduction........01 1.2 Cloud Management............01 Local management..........02 1.4 Product appearance............02 Chapter 2 Product Installation———————————— 08 2.1 List of items..........08 2.2 Installation precautions..........08 2.3 Product installation.......... -
Page 3: Chapter 1 Product Introduction
Cloud APP and TP-LINK Business Cloud Platform, making it easier to use. *The product-related illustrations in this manual are for illustration only. Please refer to the actual model. If there is no explanation, the TL-SE2106 will be used as an example. -
Page 4: Local Management

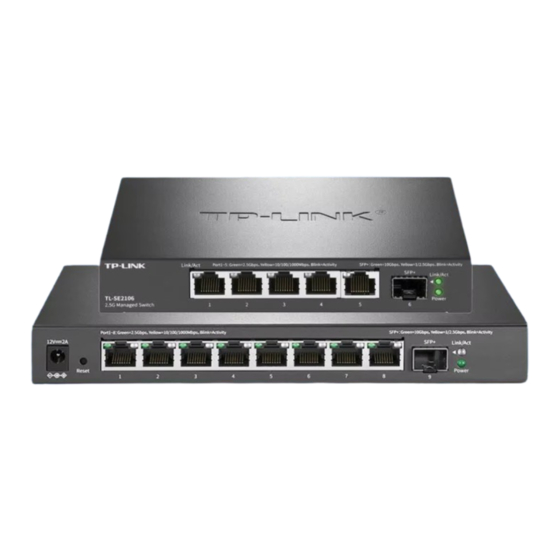

3. Set the user name and password, and click "OK" to log in to the local management interface of the switch. noodle. 1.4 Product appearance ÿ TL-SE2106 The front panel of TL-SE2106 is shown in Figure 1-2. Port1~5: Green=2.5Gbps, Yellow=10/100/1000Mbps, Blink=Activity SFP+: Green=10Gbps, Yellow=1/2.5Gbps, Blink=Activity Link/Act... - Page 5 Machine Translated by Google Cloud Management Switch Installation Manual The rear panel of TL-SE2106 is shown in Figure 1-3. Power interface Reset button 2 Figure 1-3 Schematic diagram of the rear panel of TL-SE2106 ÿ TL-SE2109 The front panel of TL-SE2109 is shown in Figure 1-4.
- Page 6 Machine Translated by Google Cloud Management Switch Installation Manual The side panel of TL-SE2109 is shown in Figure 1-6. 7 anti-theft lock holes Figure 1-6TL-SE2109 side panel diagram ÿ TL-SE2420 The front panel of TL-SE2420 is shown in Figure 1-7. 1 indicator light 16 2.5Gbps RJ45 ports 4 10Gbps SFP+ ports...
- Page 7 Machine Translated by Google Cloud Management Switch Installation Manual ÿ TL-SE2226 The front panel of TL-SE2226 is shown in Figure 1-9. 1 indicator light 4 24 2.5Gbps RJ45 ports 2 10Gbps SFP+ ports 1 USB port Figure 1-9TL-SE2226 front panel diagram The rear panel of TL-SE2226 is shown in Figure 1-10.
- Page 8 SE2109 each contain 1 10G SFP+ port, TL-SE2420 contains 4 10G SFP+ ports, and TL-SE2226 contains 2 10G SFP+ ports. The 10G SFP+ port supports 10G optical modules and is backward compatible with 2.5G/1G optical modules. It is recommended to use TP-LINK’s 10G optical modules TL-SM512LS-10KM and TL-SM512LM-300m.
- Page 9 Cloud Management Switch Installation Manual 4 2.5Gbps RJ45 ports TL-SE2106 contains 5 2.5G RJ45 ports, TL-SE2109 contains 8 2.5G RJ45 ports, TL-SE2420 contains 16 2.5G RJ45 ports, TL- SE2226 contains 24 2.5G RJ45 ports, supporting up to 2.5Gbps connection rate .
-
Page 10: List Of Items
Machine Translated by Google Cloud Management Switch Installation Manual Chapter 2 Product Installation 2.1 Item list TL-SE2106/TL-SE2109: ÿ Switch (1) ÿ Power adapter (1) ÿ Installation manual (1) ÿ Foot pads (4) TL-SE2420/TL-SE2226: ÿ Switch (1 unit) ÿ Power cord (1 piece) ÿ... -
Page 11: Chapter 2 Product Installation
Machine Translated by Google Cloud Management Switch Installation Manual ÿ The switch can work normally only with the correct power supply. Please confirm the power supply voltage and switch The voltage marked on the machine matches; ÿ Before powering on the switch, please confirm that it will not overload the power circuit to avoid affecting the switching The machine may not work properly or even cause unnecessary damage;... - Page 12 Machine Translated by Google Cloud Management Switch Installation Manual ÿ Installed on 19-inch standard rack The TL-SE2420/TL-SE2226 switch is designed according to the size of a 19-inch standard rack and can be easily installed on the rack. The specific installation steps are as follows: 1.
-
Page 13: Appendix A Common Troubleshooting
Machine Translated by Google Cloud Management Switch Installation Manual Appendix A Common Troubleshooting Problem 1. Forgot the switch username and password (how to restore factory settings). Press and hold the Reset button until all port indicators turn on and off. After releasing it, the switch will restart and restore to factory default settings. -
Page 14: Appendix B Technical Parameters
Machine Translated by Google Cloud Management Switch Installation Manual Appendix B Technical Parameters and Specifications TL-SE2106 TL-SE2109 TL-SE2420 TL-SE2226 model Technical Standard IEEE 802.3: Ethernet Media Access Control (MAC) Protocol IEEE 802.3i:10BASE-T Ethernet IEEE 802.3u:100BASE-X Fast Ethernet (twisted pair or fiber optic) IEEE 802.3ab:1000BASE-T Gigabit Ethernet... - Page 15 Machine Translated by Google Cloud Management Switch Installation Manual TL-SE2106 TL-SE2109 TL-SE2420 TL-SE2226 model 0ÿ~40ÿ Operating temperature -40ÿ~70ÿ storage temperature 10%~90%RH no condensation Working humidity 5%~90%RH no condensation Storage humidity Technical Parameters Specifications 13...
-
Page 16: Appendix C Declaration Of Toxic And Hazardous Substances
Machine Translated by Google Cloud Management Switch Installation Manual Appendix C Toxic and Hazardous Substances Statement 14 Toxic and Hazardous Substances Statement... -
Page 17: Appendix D Product Warranty Card
Before you send the product for repair, please call our company's technical support hotline: 400-8863-400 to confirm the product failure. You can also send an email to fae@tp-link.com.cn for technical support. At the same time, we will publish the developed product drivers and the latest version upgrade software on our official website: www.tp-link.com.cn as soon as possible for your free download. - Page 18 Machine Translated by Google Cloud Management Switch Installation Manual Marks, broken legs, severe deformation, damaged power cords, broken wires, bare cores, etc. are not guaranteed to be replaced. Users can Purchase separately. ÿ Warranty and replacement are limited to the host machine, not packaging and accessories such as various connections, software products, and technical information. Covered by warranty.
- Page 19 Machine Translated by Google...
- Page 20 Related documents In addition to this installation manual, we also provide electronic versions such as the "User Manual" and "Lightning Protection Installation Manual". For the latest product information, please log in to http://www.tp-link. com.cn. Company address: 1st floor, 3-5 floors in the south section of Building 24, Industrial Factory...
