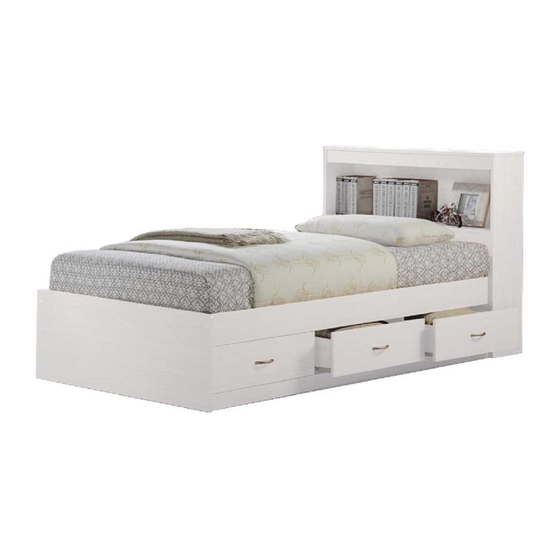

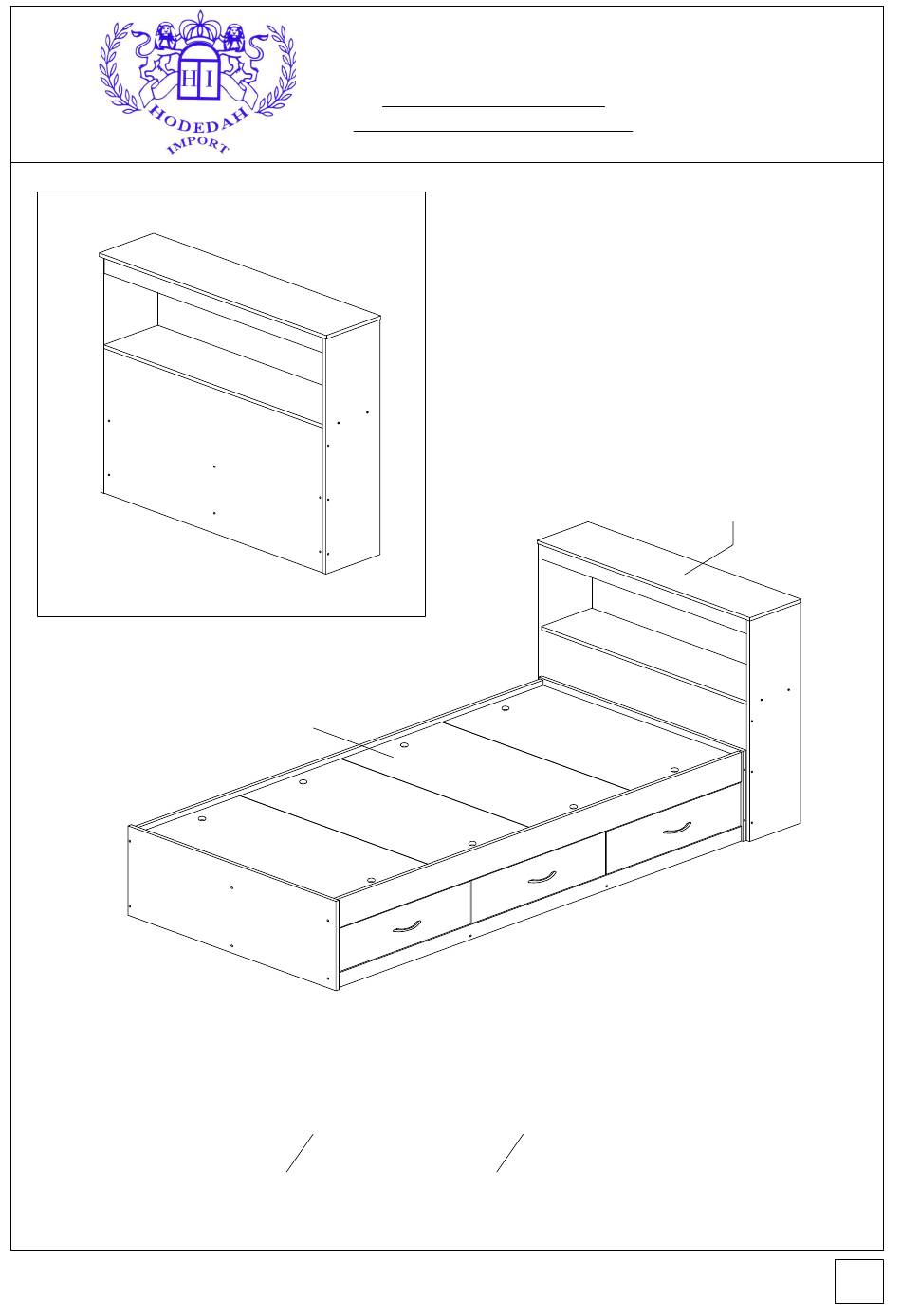

- Page 1 Hodedah www.hodedah.com support @hodedah.com HIBT70-HB HIBT70-FB & SR HIBT 70 - HB '' X D84 '' X H35'' (M/S - 39" X 75")
- Page 2 Hodedah www.hodedah.com support @hodedah.com PART & HARDWARE LIST PLASTIC DOWEL M8 X 25MM ALLEN KEY POWER NAIL 6/8 PLASTIC PIN MINIFIX 5654 CSK CAP M6 X 40MM CB SCREW M4 X 30MM...
- Page 3 Hodedah www.hodedah.com support @hodedah.com - This product contains small components, please ensure that they are kept away from small children. - THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE. DO NOT RETURN PRODUCT TO THE STORE.
- Page 4 - Never push, drag or pull your furniture (especially on carpet). Warranty Information Hodedah warrants this product to be free from defects in material and workmanship agrees to remedy any such defect. This warranty covers one year from the date of original purchase. This is solely limited to be repair or replacement of defective parts and no assembly labor is included.
- Page 5 Hodedah www.hodedah.com support @hodedah.com STEP 1 PLASTIC DOWEL M8 X 25MM PLASTIC PIN PLASTIC PIN MINIFIX 5654 BOTTOM VIEW - Insert 22 x Plastic dowel (A) into Panels (1), (2) (3), (4), (5) & (6) using a plastic hammer. - Knock 6 x Plastic pin (C) into panels (1), (2) & (6) base by using a plastic hammer.
- Page 6 Hodedah www.hodedah.com support @hodedah.com STEP 2 CSK CAP M6 X 40MM ALLEN KEY MINIFIX 5654 BACK VIEW BACK VIEW - Attach Panel (4) & (5) into Panel (2). - Attach Panel (1) & (3) into Panel (2). Insert 4 x Csk Cap M6 x 40 (D), tighten with Allen key (F). Insert 4 x Cap (E).
- Page 7 Hodedah www.hodedah.com support @hodedah.com STEP 3 POWER NAIL " CB SCREW M4 X 30MM CB SCREW M4 X 30MM HIBT70-FB & SR SIDE RAIL SIDE RAIL - Attach Panel (8) into Panel (1), (2) & (6). Use 28 x Power nail (B) for fix it. Knock by using a Hammer.
