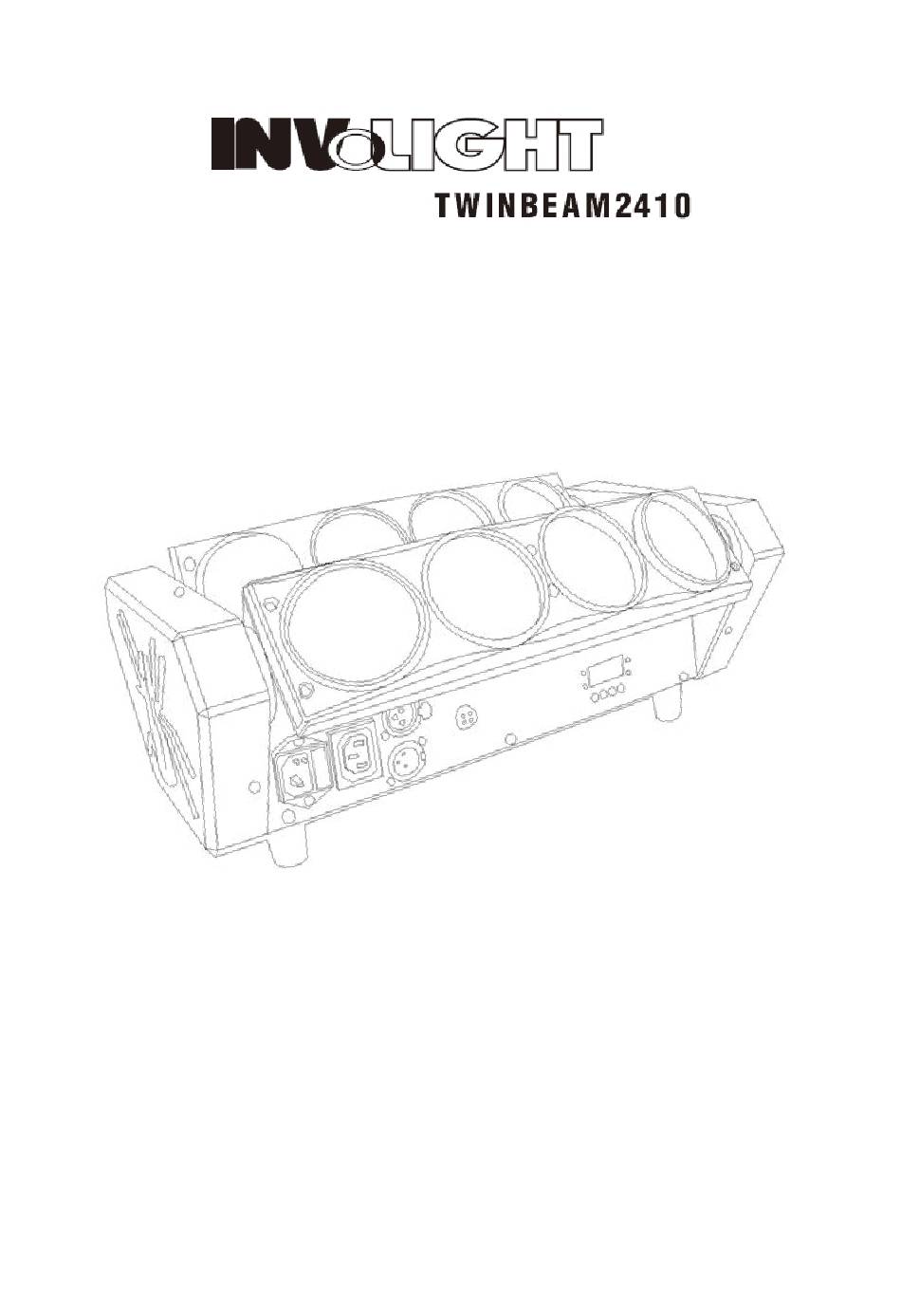

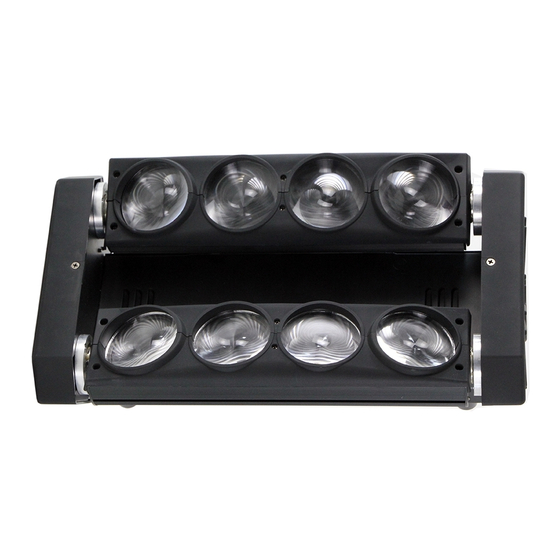

- Page 1 8*10W White LED Twin Beam Quad User Manual Please read this manual carefully before use!
- Page 2 Thank you for your patronage. We are confident that our excellent products and service can satisfy you. For your own safety, please read this user manual carefully before installing the device. In order to install , operate, and maintain the lighting safety and correctly. We suggest that the installation and operation should be done by the verified technician and follow the instruction strictly.
-
Page 3: Description Of The Device
1. Description of the Device ●8*10W high power white LED ●16/18 channels. ●Average of 50,000 hours of super-long LED life, low energy consumption, energy conservation and environmental protection LED; ●The static constant current drive mode, high precision of constant current;R, G, B, W dimming separately, and the class of 256 brightness, flicker-free. -
Page 4: General Guidelines
►Please cut off the power if don't use the fixture or want to clean, maintenance. Please be aware that damages caused by manual modifications to the device are not subject to warranty. Keep away from non-professionals. General Guidelines ►This device is a lighting effect for professional use on stages, in discotheques, theaters, etc., the device was designed for indoor use only. -
Page 5: Installation Instruction
3. Installation Instruction CAUTION! Please consider the GB7000.15/EN60598-2-17 and the other respective national norms during The installation. The installation must only be carried out by a qualified person. ►The applicable temperature for the lighting is between -25°C to 45°C. Do not use the lighting under or above the temperature. -
Page 6: Led Display
DMX-512 connection with DMX terminator For installations where has it has too much lines or lights environment it is recommended to use a DMX terminator. This helps in preventing corruption of the digital control signal by electrical noise. The DMX terminator is simply an XLR plug with a 120 Ω resistor connected between pins 2 and 3,which is then plugged into the output XLR socket of the last fixture in the chain. - Page 7 d001 001-512 Add.setting Chxx 16 CH 18 CH Mode Dmx control Fast Quick running mode Slow Slow running mode Soud Sound Sens 0-99 Adjust sensitivity Til1 X1 motor forward X1 motor reverse Til2 X2 motor forward X2 motor reverse rdoF rdoF Positive display rdon...
- Page 8 0-255 Dimmer 0-255 Strobe from slow to fast 0-255 Bar2-1 dimmer 0-255 Bar2-2 dimmer 0-255 Bar2-3 dimmer 0-255 Bar2-4 dimmer 18 channels Channel Value Function 0-10 Other channels work 11-120 Effect 1 121-243 Effect 2 245-255 Sound effect 0-255 Built-in effect speed adjustment 0-10 Other channels works 11-127...
- Page 9 Spectral wavelength analysis system Spectral wavelength analysis system Sample Item: Sample Number: 4 Environment Temperature: 25.0 ºC TWINBEAM2410 Testing Date: Aug.20,2014 Testing Time: 08:36:22 Environment Humidity: 15.0% Color Technical Parameter 567.9nm Peak Wavelength: 590nm Peak Wide: 137.4 nm Main Wavelength: Color Coordinate XY: (.3483.3705)
-
Page 10: Cleaning And Maintenance
Cleaning and maintenance The operator has to make sure that safety-relating and machine-technical installations are inspected by an expert after every four years in the course of an acceptance test. The operator has to make sure that safety-relating and machine-technical installations are inspected by a skilled person once a year.
