Operation
Attachments

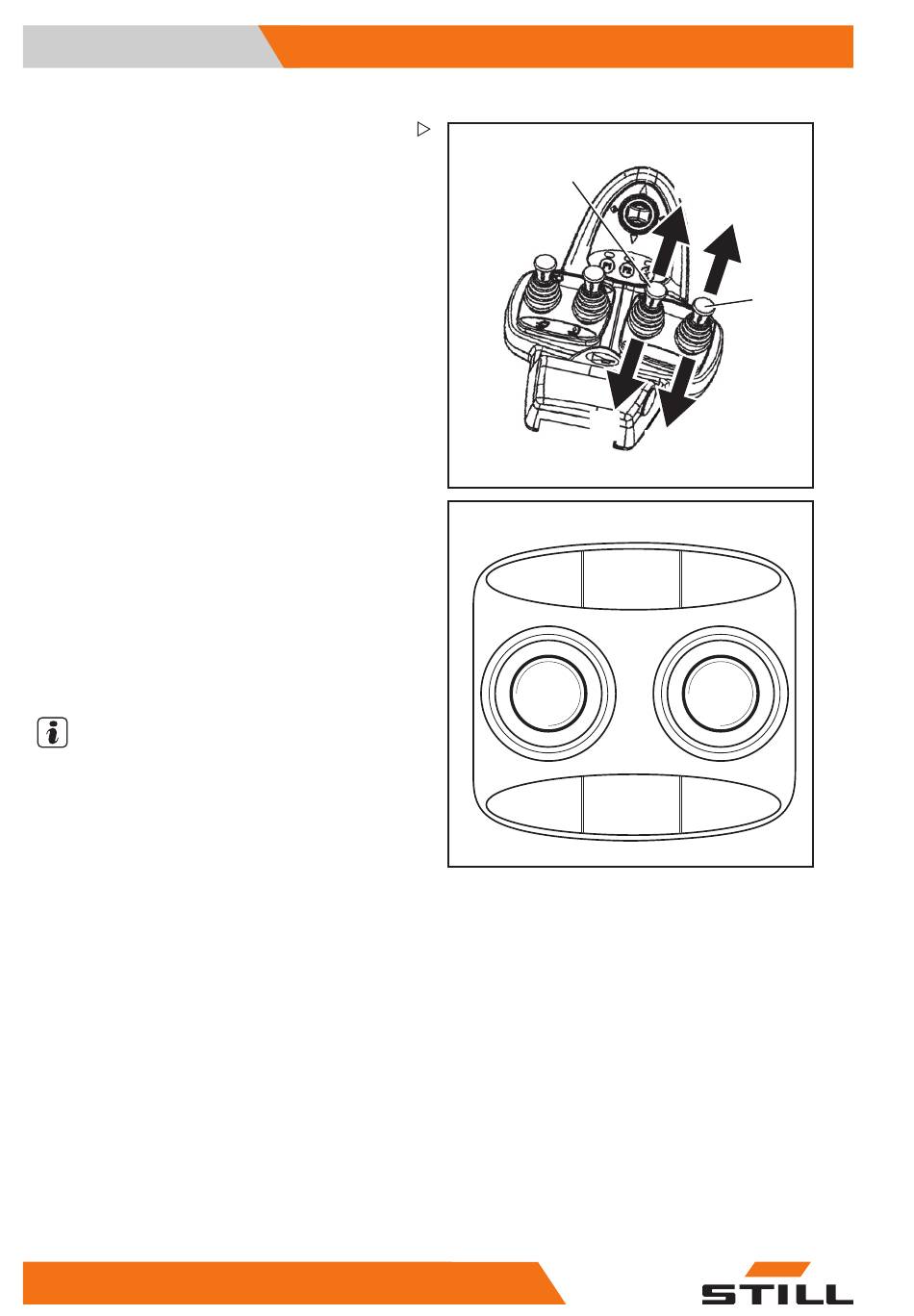

Controlling attachments using a
quadruple mini-lever
1
A
The attachments (variant) are controlled in
C
this version using operating levers (1) and (2).
The pictograms on the operating levers show
the respective function that is activated by
these levers.
2
This essentially involves the following:
– Move the operating lever (1) towards (A)
The attachment moves in the direction shown
in pictogram (A).
B
D
– Move the operating lever (1) towards (B)
The attachment moves in the direction shown
7325_003-041
in pictogram (B).
– Move the operating lever (2) towards (C)
The attachment moves in the direction shown
A C
in pictogram (C).
– Move the operating lever (2) towards (D)
The attachment moves in the direction shown
in pictogram (D).
NOTE
The pictograms are attached depending
on the pre-assembled attachment. If an
B
D
attachment with other functions is fitted, the
pictograms must be checked for the correct
representation and changed if necessary.
5060_003-109_V2
– Contact the authorised service centre if
required.
