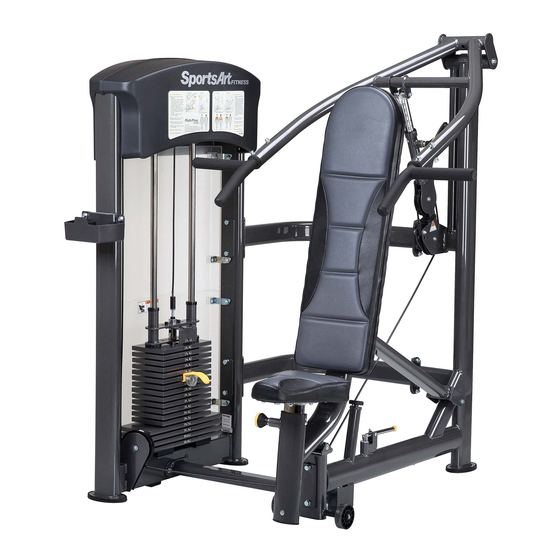

SportsArt Fitness DF-108 Manual
  1. Manuals
  2. Brands
  3. SportsArt Fitness Manuals
  4. Fitness Equipment
  5. DF-108
  6. Manual

SportsArt Fitness DF-108 Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
－
Safety Instructions....................................................................................
1.1 Safety Precautions................................................................................................
－
Instructions..............................................................................................
2.1 Dimensions..........................................................................................................
2.2 Part List for Box A................................................................................................
2.3 Part List for Box B................................................................................................
2.4 Part List for Box C................................................................................................
2.5 Components in the Hardware Kit..........................................................................
2.6 Components on the Product..................................................................................
－
Assembly Instructions...............................................................................
STEP 1 Connector Installation....................................................................................
STEP 2 Weight Plate Installation................................................................................
STEP 3 Application Weight Stack Sticker...................................................................
STEP 4 Press Handle Installation..............................................................................
STEP 5 Seat Frame Installation.................................................................................
STEP 6 Seat Back Cushion Installation.....................................................................
STEP 7 Seat Frame (24) Leveling Test......................................................................
STEP 8 Support Tube Stopper Adjustment...............................................................
STEP 9 Cable Installation..........................................................................................
STEP 10 Adjust Cable Tightness...............................................................................
STEP 11 Cable Adjustment If Too Close....................................................................
STEP 12 Tower Back Cover Installation....................................................................
STEP 13 Front Top Cover Installation.......................................................................
STEP 14 Rear Top Cover..........................................................................................
STEP 15 Install Water Bottle Holders........................................................................
STEP 16 Insert the Stack Fork.................................................................................
－
Operating Instructions.............................................................................
4.1 Operating the Product..........................................................................................
4.2 Testing..................................................................................................................
4.3 Maintenance.........................................................................................................

TABLE OF CONTENTS

1
1
2
2
3
4
5
5
6
7
7
9
17
19
20
23
24
25
26
29
30
31
33
34
35
36
37
37
40
41

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DF-108 and is the answer not in the manual?

Questions and answers

Related Manuals for SportsArt Fitness DF-108

Summary of Contents for SportsArt Fitness DF-108

  • Page 1: Table Of Contents

    TABLE OF CONTENTS － Chapter 1 Safety Instructions..................1.1 Safety Precautions....................－ Chapter 2 Instructions....................2.1 Dimensions......................2.2 Part List for Box A....................2.3 Part List for Box B....................2.4 Part List for Box C....................2.5 Components in the Hardware Kit................2.6 Components on the Product..................

  • Page 2: Chapter 1 － Safety Instructions

    － CHAPTER 1 SAFETY PRECAUTIONS 1.1 SAFETY PRECAUTIONS ● Read and follow all cautionary messages and warnings in this manual. Obtain instructions on the proper user of this machine prior to exercising. Use appropriate body positioning and controlled movements. ● Assemble and operate this product on a solid, level surface.

  • Page 3: Chapter 2 Instructions

    － CHAPTER 2 INSTRUCTIONS 2.1 DIMENSIONS...

  • Page 4: Part List For Box A

    2.2 Part List for Box A Description Qty No. Description Upper back cover 5 kg weight plate 7.5 kg weight plate Lower back cover Weight plate sticker (10kg~60kg) Top front cover Weight plate sticker (65kg~100kg) Rear top cover Main frame...

  • Page 5: Part List For Box B

    2.3 Part List for Box B Description Qty No. Description Connector B Cup holder Secondary frame Press handle Seat back cushion Seat frame Connector A...

  • Page 6: Part List For Box C

    2.4 Part List for Box C Description Qty No. Description 5 Kg Weight Plate 2.5 Components in the Hardware Kit A hardware kit is provided in the packaging of this product. Please inspect the hardware kit for the following items. Description Tool Needed Specification...

  • Page 7: Components On The Product

    2.6 Components on the Product Some components are installed on the product. These items will be needed for product assembly. Tool Needed Specification Description Hex bolt M10*L75 Spring washer ψ ψ Washer 10.2 Connector D Lock nut Connector set Hex bolt M10*L30 Upper stack carriage set Hex bolt and PU tube...

  • Page 8: Chapter 3 Assembly Instructions

    － CHAPTER 3 ASSEMBLY INSTRUCTIONS Connector Installation STEP 1...
  • Page 9 1-1. Use connector tubes (25,26) to connect the main frame (5) to the secondary frame (27). Then use connectors (66 and 64) and hardware (61,62,63,65,67) to loosely secure these pieces. Do not tighten screws yet. 1-2. Set the unit flat on the floor. First secure hardware (61,62,63,65) on the main frame (5).

  • Page 10: Step 2 Weight Plate Installation

    Weight Plate Installation STEP 2...
  • Page 11 2-1. Hold upper stack carriage (68) and cut the zip tie. Gently lower the upper stack carriage (68) into place as shown. -10-...
  • Page 12 2-2. Remove hardware (69,70,71). Guide the guide rods (72) downward as shown. -11-...
  • Page 13 2-3. Tilt the guide rods (72) backward. Then lift the upper stack carriage (68) off the guide rods as shown. Carefully set the upper stack carriage aside. -12-...
  • Page 14 2-4. Insert and lower the four large (7.5 kg) weight plates into place on the guide rods one at a time (7). NOTE: The convex side faces up. -13-...
  • Page 15 2-5. Insert and lower the 13 small (5 kg) weight plates (6) into place one at a time. NOTE: The convex side faces up. 2-6. Insert and lower the upper stack carriage (68) into place. Note: the stack fork (73) points toward the front.
  • Page 16 2-7. Tilt the guide rods (72) back into place. -15-...
  • Page 17 2-8. Lift the guide rods (72) up into their mounting station. Then secure them with hardware (69,70,71). -16-...

  • Page 18: Step 3 Application Weight Stack Sticker

    Application Weight Stack Sticker STEP 3 -17-...
  • Page 19 Before applying weight plate stickers, please wipe the area clean, and clean your hands before proceeding to the next step. 3-1. Align and tape the cardboard to the upper left corner of the weight stack (6,7). 3-2. Peel off the top half of the weight sticker (8) backing. Note: leave the clear outside margin in place on the sticker.

  • Page 20: Step 4 Press Handle Installation

    Press Handle Installation STEP 4 4-1. First, remove axle (84,88) and hardware (77,83,85,86,87) from the press handle (22) and the secondary frame (27). Place this hardware aside in a safe place. 4-2. Attach the press handle (22) to the secondary frame (27) via the axle (84). Then secure these pieces with hardware (85,86,87).

  • Page 21: Step 5 Seat Frame Installation

    Seat Frame Installation STEP 5 -20-...
  • Page 22 5-1. First, remove the sleeve (90) and hardware (77,89). Then remove hardware (63,65) from the seat frame (24) and connector (66). Set aside these parts for use in the next step. -21-...
  • Page 23 5-2. Use the connector (66) and hardware (63,65) to secure the seat frame (24) to the secondary frame (27). 5-3. Raise connector C on the secondary frame (27) to match holes in the seat frame (24). Then secure these parts via sleeve (90) and hardware (77,89). Then secure all parts in this step.

  • Page 24: Step 6 Seat Back Cushion Installation

    Seat Back Cushion Installation STEP 6 6-1. First, remove hardware (86,92,70) from the seat back cushion (23). 6-2. Then, use hardware (86,92,70) to secure the seat back cushion (23) onto the seat frame (24). -23-...

  • Page 25: Step 7 Seat Frame (24) Leveling Test

    Seat Frame Leveling Test STEP 7 7-1. Place the unit where it will be used. 7-2. Loosen screws in area B on the seat frame (24). Press the seat frame (24) to the shortest position, making the wheels touch the ground. Fully secure the screws in area B.

  • Page 26: Step 8 Support Tube Stopper Adjustment

    Support Tube Stopper Adjustment STEP 8 8-1. First, test seat back operation. Press your foot on the adjustment lever. Then adjust the seat back to position G until you see sticker C on the extension tube and area H clicks into place. Then inspect whether the adjustment rod and stopper meet in area D.

  • Page 27: Step 9 Cable Installation

    Cable Installation STEP 9 -26-...
  • Page 28 9-1. Before installing the cable, first remove the cover (75,76,77,78,79) in area A and the pulley wheel (77,78,79,80,93) in area B and cover plate (76,77,78,79) in area C as shown. Note: Keep pulley wheel A (74) on the product. Set hardware aside in a safe place for later use.
  • Page 29 9-2. Cut the zip tie in area C. 9-3. Thread the cable through pulley wheel A (74) as shown. Secure the cover (75,76, 77,78,79). Thread the cable under pulley B (80). Push the pulley onto its mount. Secure it with hardware (77,78,79,94). Thread the cable as indicated through the upper pulley A (74).

  • Page 30: Step 10 Adjust Cable Tightness

    Adjust Cable Tightness STEP 10 Insert the stack fork into the gap under the lowest weight plate. Then adjust the large nut at area D. Adjust until the upper stack carriage moves slightly. To adjust the cable, first insert an open end wrench into (Z) hole. Loosen (Y) nut. Then adjust (X) nut.

  • Page 31: Step 11 Cable Adjustment If Too Close

    Cable Adjustment if too Loose STEP 11 If there is no way to adjust area C, please rotate area C out 30mm (about 1 inch). Remove the bushing (95), axle (81), washer (77), nut (83), and soft cap (91) from hole E in area D.

  • Page 32: Step 12 Tower Back Cover Installation

    Tower Back Cover Installation STEP 12 12-1. Before installing the upper and lower rear covers, first separate A and B (41,42) set brackets by side. (Set brackets are side specific.) Use screws (43) to secure the set brackets into the back covers (1,2). Note: back cover (1) is short;...
  • Page 33 12-3. Hang back cover A (1) onto screws (89). Simultaneously, hook back cover A (1) into back cover (2). -32-...

  • Page 34: Step 13 Front Top Cover Installation

    Front Top Cover Installation STEP 13 13-1. Use screws (43) to secure the front top cover onto the stack tower. -33-...

  • Page 35: Step 14 Rear Top Cover

    Rear Top Cover Installation STEP 14 14-1. Before starting installation of the rear top cover, press the screw sockets (44) into place on the frame where shown. 14-2. Then use screws (43) to secure the rear top cover bracket (45) onto the frame as shown.

  • Page 36: Step 15 Install Water Bottle Holders

    Install Water Bottle Holders STEP 15 15-1. Remove screws (79) from the frame. 15-2. Remove hardware (77,83,79) from the bottle holder (21). 15-3. Secure the bottle holder plate (94) in place with screws (79). Put the bottle holder (21) in place. Secure it with hardware (77,83,79) as shown. -35-...

  • Page 37: Step 16 Insert The Stack Fork

    Insert the Stack Fork STEP 16 16-1. Insert the stack fork to make sure that every weight plate can be engaged easily. -36-...

  • Page 38: Chapter 4 Operating Instructions

    － CHAPTER 4 OPERATING INSTRUCTIONS 4.1 Operating the Product To raise the seat bottom, simply pull it upward. To lower the seat bottom, pull the adjustment knob outward and lower the seat bottom. -37-...
  • Page 39 To adjust the seat back position, press the adjustment lever with your foot. Then move the seat back to the position you desire. -38-...
  • Page 40 To adjust the press handle, pull the adjustment knob outward and move the handle to the desired position. -39-...

  • Page 41: Testing

    4.2 Testing 1. Please follow operating instructions on the product sticker (3) to test operation. 2. Insert the stack fork at the heaviest weight setting at which you can safely operate the equipment. Exercise to lift the stack several times. Then inspect the cable for proper tightness.

  • Page 42: Maintenance

    4.3 Maintenance 1. Apply lubricant to the guide rods every four months. 2. Procedure: (a) Put some lubricant on a clean, lint-free cloth. Rub the lubricated cloth on the guide rods. (b) Load the upper stack carriage. Exercise to test operation. (c) Repeat steps (1) and (2) 2-3 times.
