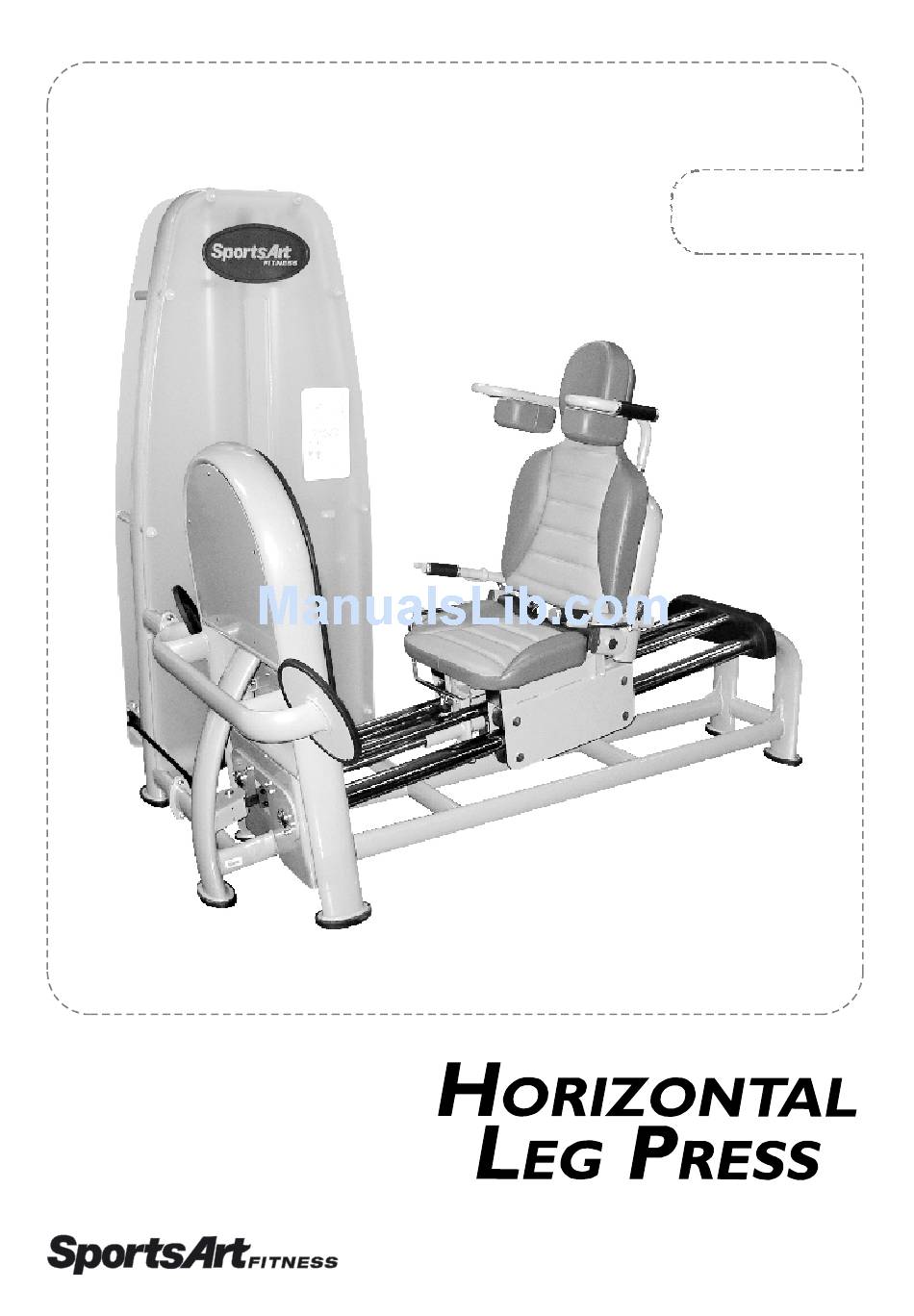

- Page 1 A956 OWNER'S MANUAL ASSEMBLY INSTRUCTIONS...
-
Page 2: Safety Instructions
A. SAFETY INSTRUCTIONS ˙ Read all cautions/warnings and obtain proper instruction on use of the machines prior to using. Use appropriate positioning and controlled movements. Assemble and operate the strength on a solid, level surface. Do not use outdoors ˙ or near water. - Page 3 B. Introduction Badge Side frame Rear cover Usage sticker Front cover Cord Stack fork Weight stacks (22 Lbs / 10 kgs) Foot Pad...
- Page 4 Head cover Left shoulder lean stick Right shoulder lean stick Shoulder cushion Unit track rubber Seat back Left control adjustment stick Foot rubber Seat back Foot plate Rubber Right control Adjustment stick Main frame Seat cushion Position selection handle Belt Foot pad...
-
Page 5: List Of Parts
C. List of Parts 1. One double-end open wrench, 17mm x 23mm 2. One double-end open wrench, 8mm x 17mm 3. One hex key wrench, M6 4. One hex key wrench, M5 5. User's manual 6. Storage tray kit includes one storage tray, one bracket, two screws, four washers and two nuts. -
Page 6: Belt Adjustment
D. Belt Adjustment: 1. If the belt is too tight or too loose, please loosen up nut A as figure shows and adjust nut B. If the belt length is too long, please adjust it downward; if it is too short, adjust upwards. - Page 7 E. Procedures of Shoulder Lean Sticks Adjustment Downwards: Please hold the right and left shoulder lean sticks downwards. Upwards: Please hold the left control adjustment stick to make right and left shoulder lean sticks upwards. (See fig.2) Left Control Adjustment Stick Fig.2...
- Page 8 F. Procedure of Seat Adjustment Please hold the position selection handle to adjust the seat forwards or backwards to the proper position. (See fig.3) Position selection handle bar Fig.3...
- Page 9 G. Procedure of Seat Back Adjustment Please hold the right control adjustment stick to adjust the seat back to the proper position. (See fig.4-1~4-2) Right Control Adjustment Stick Fig.4-1 Fig.4-2...
- Page 10 H. STORAGE TRAY ASSEMBLY: Place the storage tray (A) and bracket (B) onto the tubing as figure shown. Insert the screws and washers into the holes and tighten with nuts plus washers. (See Fig. 5) Fig.5...
-
Page 11: Usage Instruction
Usage Instruction:...
