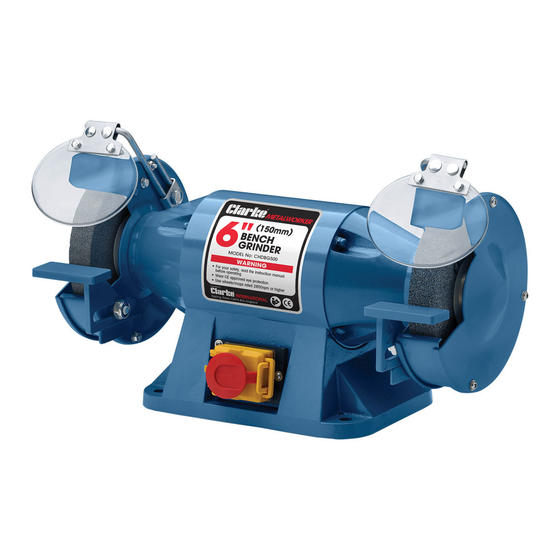

- Page 1 BENCH GRINDER MODEL NO: CHDBG500 PART NO: 6500535 OPERATION & MAINTENANCE INSTRUCTIONS ORIGINAL INSTRUCTIONS GC0719 - ISS 1...
-
Page 2: Environmental Recycling Policy
INTRODUCTION Thank you for purchasing this CLARKE Bench Grinder. Before attempting to use this product, please read this manual thoroughly and follow the instructions carefully. In doing so you will ensure the safety of yourself and that of others around you, and you can look forward to your purchase giving you long and satisfactory service. -
Page 3: Specifications
SPECIFICATIONS Model Number CHDBG500 Part Number 6500535 Dimensions (D x W x H) 466 x 194 x 254 mm Weight 16.5 kg Rated Voltage 230 V~ 50 Hz Rated Input Wattage 500 W No Load Speed 2850 RPM (+/- 5%) Abrasive wheels supplied Coarse (36 Grit), Fine (60 Grit) Wheel dimensions... -
Page 4: Power Tool Safety Warnings
POWER TOOL SAFETY WARNINGS 1) WORK AREA 1. Keep the work area clean and well lit. Cluttered and dark areas invite accidents. 2. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. -
Page 5: Bench Grinder Safety Warnings
4) POWER TOOL USE AND CARE 1. Do not force the power tool. Use the correct accessories for your application. The correct power tool will do the job better and safer at the rate which it was designed. 2. Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired. -
Page 6: Safety Symbols
7. NEVER leave the grinder unattended when it is connected to an electrical power supply. Switch off the grinder and unplug it before leaving. 8. ALWAYS check for damaged parts. Before further use of the tool, a guard or other part that is damaged should be carefully checked to determine if it would operate properly and perform its intended function. -
Page 7: Electrical Connections
ELECTRICAL CONNECTIONS WARNING: READ THESE ELECTRICAL SAFETY INSTRUCTIONS THOROUGHLY BEFORE CONNECTING THE PRODUCT TO THE MAINS SUPPLY. Connect the mains lead to a standard, 230 Volt (50Hz) electrical supply through an approved BS 1363 plug or a suitably fused isolator switch. If the plug has to be changed because it is not suitable for your socket, or because of damage, it must be removed and a replacement fitted, following the wiring instructions shown below. -
Page 8: Carton Contents
CARTON CONTENTS The following items should be supplied in the carton. if any parts are missing or damaged, please contact the CLARKE dealer where you purchased the bench grinder. 1 x Bench grinder assembly (c/w 2 grinding wheels attached) 2 x Eye shields and holders (1 with magnifying lens) -
Page 9: Before Use
BEFORE USE MOUNTING THE GRINDER ONTO A WORKBENCH NOTE: We highly recommend that you bolt this bench grinder securely to a workbench to gain maximum stability. 1. Using the base of the bench grinder as a template, mark the bench through the holes in the casting. -
Page 10: Installing The Eye Shields
INSTALLING THE EYE SHIELDS 1. Attach the left eye shield arm to the bench grinder using the bracket, flat washer and bolt supplied. NOTE: Adjust the eye shields to an appropriate distance from the tool rests avoiding interference during operation. OPERATION CAUTION: KEEP ALL BYSTANDERS A SAFE DISTANCE AND NOT IN DIRECT LINE, FRONT OR BACK OF THE GRINDER. -
Page 11: Dressing The Grinding Wheel
The grinding wheel may need dressing occasionally. Only dress the wheel with a proper dressing tool, whilst wearing safety goggles or glasses. If in doubt seek professional advice. Dressing tools are available from your CLARKE Dealer. Grinding wheel dresser model no ET125;- part no 1700225... - Page 12 NOTE: The left hand grinding wheel locking nut has a left handed thread. 3. Slide off the grinding wheel and replace with a new one. Be sure to fit the paper discs between the new grinding wheel and the inner and outer retaining discs.
-
Page 13: Declaration Of Conformity
DECLARATION OF CONFORMITY Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... -
Page 14: Parts Diagram
PARTS DIAGRAM Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... -
Page 15: Part List
PART LIST Screw M5 x 16 Housing (RH) Bottom Foot Motor Shaft Cable Clamp Stator Earthing Point Shaft Bearing 6205 Bolt 4mm Housing (RH) Washer 4mm Domed Nut M6 Screw M5 x 10 Power Cable Gland Bottom Plate Washer 6mm Cable Sheathing Power Cable with Plug Capacitor Clamp...
