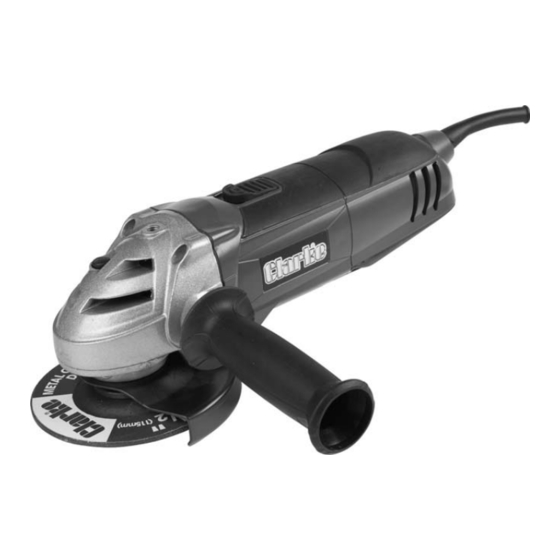

- Page 1 4½” Angle Grinder 4½” Angle Grinder Model CAG122 Model CAG122 Part Number 6470127 Operating & Maintenance Instructions © 0111...
-
Page 2: Specifications
Cutting Wheel Bore ..........22mm Drive Spindle Thread ..........M14 Tool Weight .............. 2.3kg If you have any problems using or setting up your Grinder call Clarke Helpline on : 020 8988 7400 Press 1 for Parts : 2 for Technical Assistance Do not dispose of this product with general household waste. -
Page 3: Table Of Contents
Recommended Grinding Wheels / Cutting Disks ........11 Vibration Emissions ..................12 Thank you for purchasing this Clarke Angle Grinder. Before using please read these instructions. This is for your own safety and that of others around you, and to help you achieve long and trouble free service from the Grinder. -
Page 4: For Your Own Safety
For Your Own Safety WARNING: As with all machinery, there are certain hazards involved with their operation and use. Exercising respect and caution will considerably lessen the risk of personal injury. However, if normal safety precautions are overlooked or ignored, personal injury to the operator or damage to property, may result. Keep children away when using Power Tools. -
Page 5: Safety Precautions : For Angle Grinders
Additional Safety Precautions : For Angle Grinders Eye Protection manufactured to the current European Safety Standard should be worn when operating grinding equipment. Ear Protection manufactured to the current European Safety Standard should be worn when operating grinding equipment. A Dust Mask manufactured to the current European Safety Standard should be worn when operating grinding equipment. -
Page 6: Electrical Connections
Electrical Connections Double Insulated Electrical Appliance This appliance is of Double Insulation Construction. Because of its construction there is no earth required and therefore there is no Earth connection. Connect the mains lead to a standard 230V (50Hz) electrical supply through an approved 13 Amp BS1363 plug, or a suitably fused isolator switch. -
Page 7: Overview Of Your Angle Grinder
Figure (1) Overview Safety ON/OFF Switch Handle Spindle Lock Button Abrasive Disk Body Moveable Blade Guard Before Using the Grinder Fit the Handle : Screw the handle into the appropriate position in the grinder head as required. Figure.1a Adjusting the Guard Adjust the Guard : The guard needs to be adjusted to give maximum... -
Page 8: Mounting The Grinding Wheel / Cutting Disk
Mounting the Grinding Wheel / Cutting Disc ( i ) Unscrew and remove the outer flange : Figure (2) Mounting Discs Lock the spindle by pressing the spindle lock button and use the tool supplied to turn the flange and break the seal. It may then be screwed off by hand. -
Page 9: Maintenance
Maintenance IMPORTANT! Ensure that the grinder is disconnected from the power supply before carrying out any maintenance. Before Each Use Always inspect the tool before use, and ensure it is in top condition. Ensure all air vents are clear, use compressed air to clean the tool where possible. (Always wear protective goggles when cleaning with compressed air). -
Page 10: Troubleshooting
2. Bearings worn 2. Consult your Clarke dealer Parts and Service For Spare Parts and Servicing, please contact your local dealer, or Clarke International on one of the following Numbers: Parts and Service Tel: 020 89887400 Parts and Service Fax: 020 85583622 or email as follows: Parts: Parts@clarkeinternational.com... -
Page 11: Spare Parts Diagram
KP12201 Handle KP12202 Wheel/Disk Guard KP12203 Inner Flange KP12204 Outer Flange K{12205 Grinding Wheel / Cutting Disc ( See Clarke Accessories below ) Flange Tool KP12207 Casing KP12208 Recommended Grinding Wheels / Cutting Discs Clarke Accessories Description Part No. Thickness... -
Page 12: Vibration Emissions
These tests produce a value ‘a’, expressed in metres per second per second, which represents the average vibration level of all tests taken, in three axes where necessary. MODEL No: CAG122 DESCRIPTION: ANGLE GRINDER Declared vibration emission value in accordance with EN12096 Measured vibration emission value - a: 13.2 m/s... - Page 13 The graph below shows the vibration value against the maximum time the respective tool may be used, per day. It should be noted that if a tool is used under abnormal, or unusual conditions, then the vibration level could possibly increase significantly.
- Page 14 DECLARATION OF CONFORMITY - 15 -...
