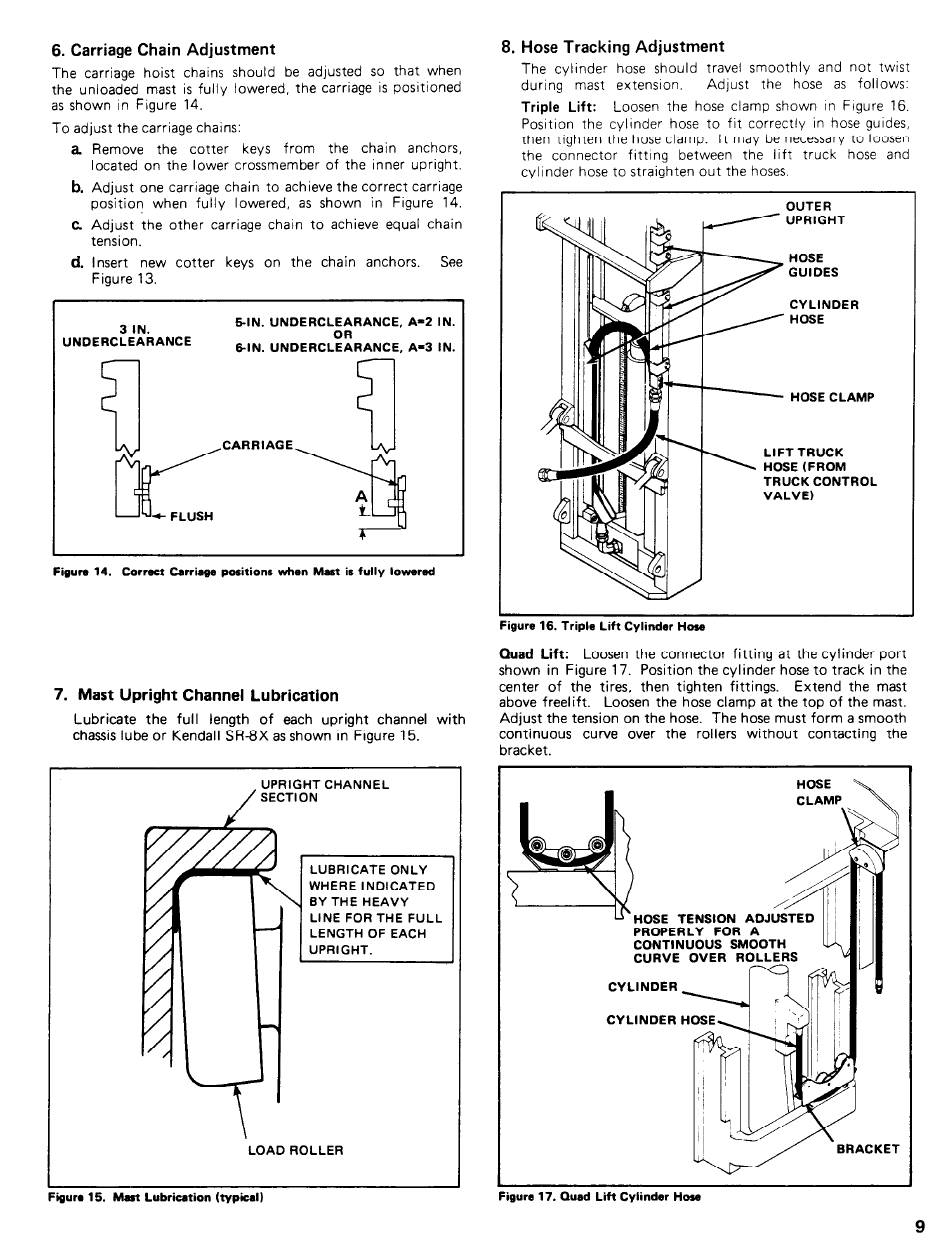

6. Carriage Chain Adjustment
The carriage hoist chains should be adjusted so that when
the unloaded mast is fully lowered, the carriage is positioned
as shown in Figure 14.
To adjust the carriage chains:
a
Remove the cotter keys from the chain anchors,
located on the lower crossmember of the inner upright.
b.
Adjust one carriage chain to achieve the correct carriage
position when fully lowered, as shown in Figure 14.
C Adjust the other carriage chain to achieve equal chain
tension.
d.
Insert new cotter keys on the chain anchors. See
Figure 13.
3 IN.
5lN. UNDERCLEARANCE, A=2 IN.
UNDERCLEARANCE
5-IN. UNDERCL::RANCE, A=3 IN.
Figure 14. Correct Carriage positions when Mast is fully lowered
7. Mast Upright Channel Lubrication
Lubricate the full length of each upright channel with
chassis lube or Kendall SR-SX as shown in Figure 15.
/
UPRIGHT CHANNEL
SECTION
LUBRICATE ONLY
WHERE INDICATED
BY THE HEAVY
LINE FOR THE FULL
LENGTH OF EACH
UPRIGHT.
LOAD ROLLER
8. Hose Tracking Adjustment
The cylinder hose should travel smoothly and not twist
during mast extension. Adjust the hose as follows:
Triple Lift: Loosen the hose clamp shown in Figure 16.
Position the cylinder hose to fit correctly in hose guides,
then tlghten the hose clamp. It may be necessary to loosen
the connector fitting between the lift truck hose and
cylinder hose to straighten out the hoses
OUTER
HOSE
GUIDES
c , ./ UPRIGHT
CYLINDER
/ HOSE
HOSE CLAMP
LIFT TRUCK
HOSE (FROM
TRUCK CONTROL
,-..-- .c -r_:-I- a :*- ,.__,:-A-- La---
Quad Lift:
Loosen the connector fitting at the cylinder port
shown in Figure 17. Position the cylinder hose to track in the
center of the tires, then tighten fittings. Extend the mast
above freelift. Loosen the hose clamp at the top of the mast.
Adjust the tension on the hose. The hose must form a smooth
continuous curve over the rollers without contacting the
bracket.
HOSE
CLAMP
u'HOSE TENSION ADJUsTED
PROPERLY FOR A
CONTINUOUS
SMOOTH
CURVE
OVER ROLLERS
__.__ - - .-..
CYLINDER
CYLINDER HO
gum 15. Mast Lubrication (typical) rlgura i I. uuaa Lm r;ymaer
9
