Smart Touch Controller
HySecurity gate operators provide a 2-wire, serial interface (RS-485 connection) which allows remote access to
one or more operators.
When the physical connection is made and protocols are established, an SA (System Address) must be assigned
for each operator through its Installer Menu.
For network communication, choosing a "SA" of 1 to 4 establishes individual network polling addresses. HyNet
only utilizes numbers 1, 2, 3, or 4.
A "SA" of zero means no network communication is desired.
RED
TERMINAL
BLOCKS
Common Bus (-)
(+24V) (-24V)
DRIVE
1
2
3
4
5
6
7
8
9
10
11
12
14
15
16
17
18
19
20
21
22
23
24
LED
Tact
LIMIT
button RPM
www.hysecurity.com © 2019
BLACK
TERMINAL
BLOCKS
POWER RS485
STOP BUTTON
OPEN BUTTON
CLOSE BUTTON
REMOTE OPEN AND
RADIO CONTROL
OPEN/CLOSE
OPEN PARTIAL
INTERLOCK OPEN
TIME CLOCK OPEN
FREE EXIT DETECTOR
DISABLE EXIT DETECTOR
DISABLE CLOSE TIMER
INSIDE OBSTRUCTION
VEHICLE DETECTOR
OUTSIDE OBSTRUCTION
VEHICLE DETECTOR
SHADOW/RESET
VEHICLE DETECTOR
SENSOR 1
SENSOR COM COM
NO
DO NOT USE
SENSOR 2
DO NOT USE
STATUS
SENSOR 3
DO NOT USE
CHARGER
AC LOSS
HySecurity
LOCK INTERLOCK
MX000585
VERSION
S/N
EMERG CLOSE
FIRE DEPT OPEN
Smart Touch Controller
DUAL GATE RADIO OPTIONS
S 1
COM A B COM OPEN +24V +24V COM
StrongArmCRASH, HydraWedge SM50, HydraSupply XL Installation

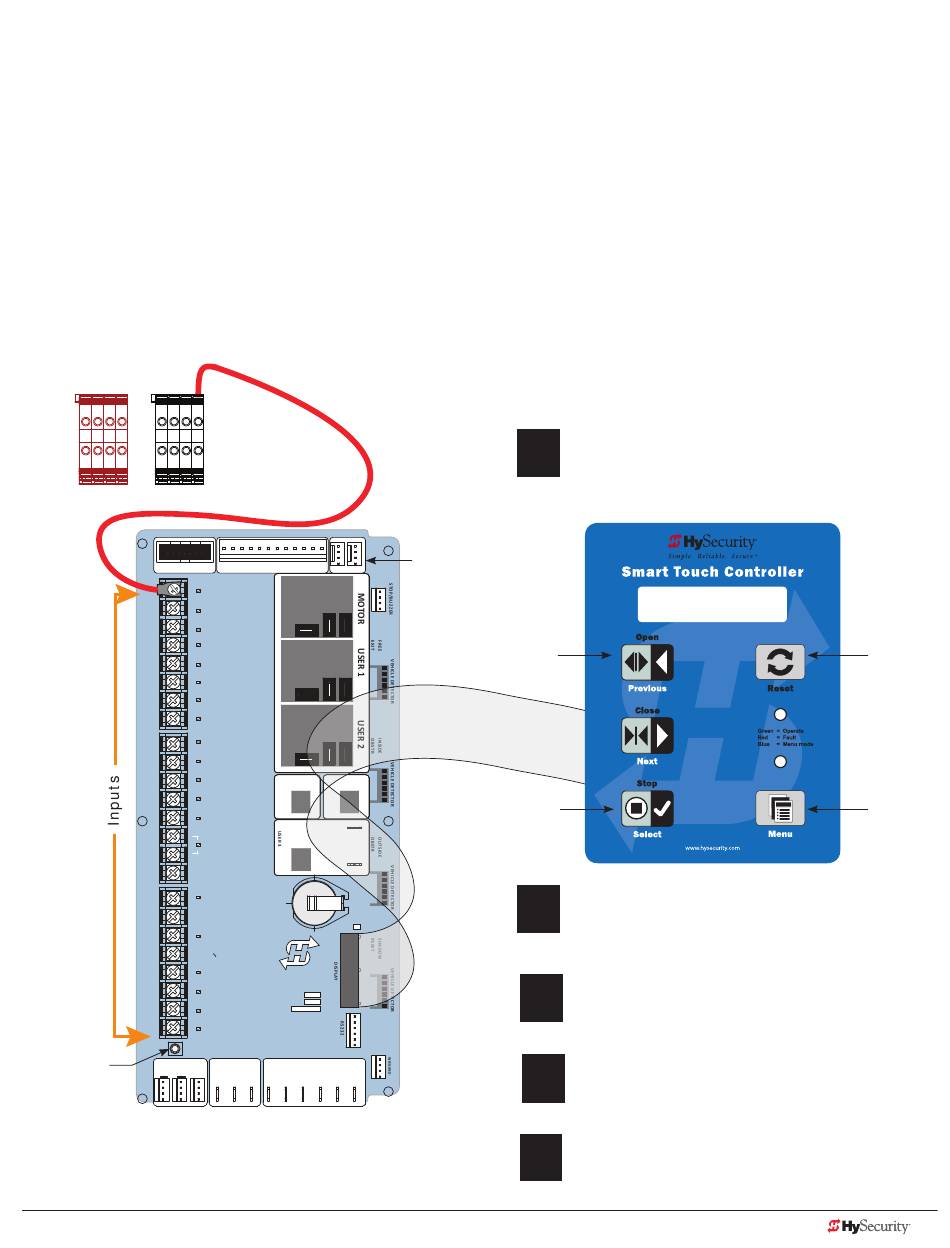

To access Installer Menu, press Menu button
1
twice. Then, press Reset and Open.
Press Select to navigate to Installer Menu item
"SA" System Address.
RS-485
Connector
Open
button
Select
button
Press Select again to set gate operator's system
2
address (Each gate operator attached to the
same HyNet must have a unique SA number.
Choose 1, 2, 3, or 4.)
To exit Menu mode, press Menu. The gate
3
operator returns to Run mode.
Refer to "Table 1: HyNet LED Indicators"
4
on page 2. Solid green means serial
communication is active and functioning well.
For IP network setup, refer to the HyNet Quick
5
Start manual supplied in the HyNet box..
SA 1
SYSTEM ADDRESS
D0720 Rev. B
Reset
button
Menu
button
