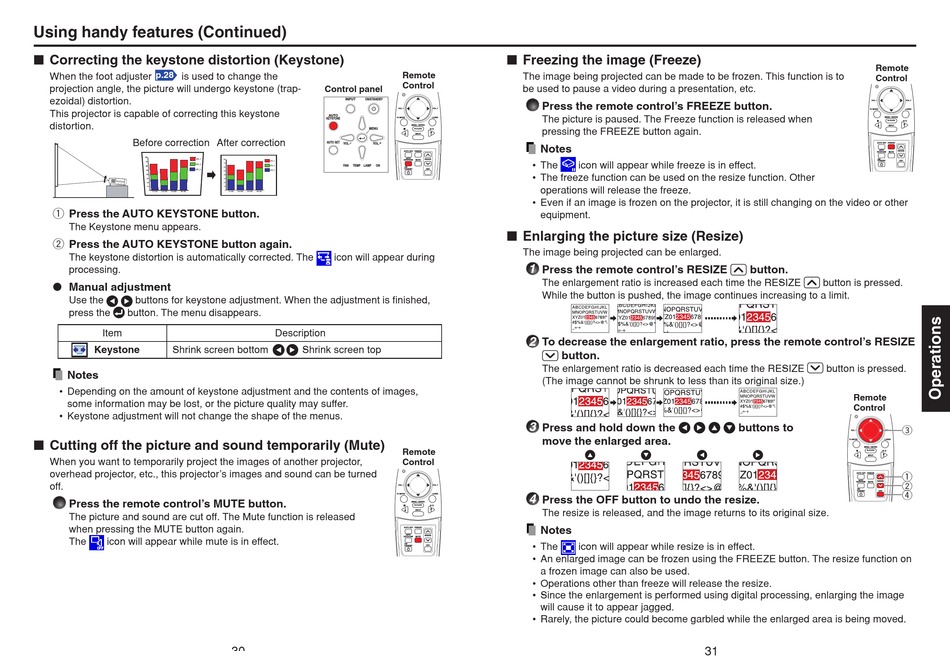

Using handy features (Continued)

Correcting the keystone distortion (Keystone)

p.28
When the foot adjuster
is used to change the
projection angle, the picture will undergo keystone (trap-
ezoidal) distortion.
This projector is capable of correcting this keystone
distortion.
Before correction After correction
q Press the AUTO KEYSTONE button.
The Keystone menu appears.
w Press the AUTO KEYSTONE button again.
The keystone distortion is automatically corrected. The
processing.
Manual adjustment
Use the
buttons for keystone adjustment. When the adjustment is finished,
press the
button. The menu disappears.
Item
Keystone
Shrink screen bottom
Notes
• Depending on the amount of keystone adjustment and the contents of images,
some information may be lost, or the picture quality may suffer.
• Keystone adjustment will not change the shape of the menus.

Cutting off the picture and sound temporarily (Mute)

When you want to temporarily project the images of another projector,
overhead projector, etc., this projector's images and sound can be turned
off.
Press the remote control's MUTE button.
The picture and sound are cut off. The Mute function is released
when pressing the MUTE button again.
The
icon will appear while mute is in effect.
Remote
Control
Control panel
INPUT
ON/STANDBY
VOL.-
AUTO
PJ MODE
KEYSTONE
MENU
AUTO SET
VOL. +
VOL.-
AUTO SET FREEZE
AUTO
KEYSTONE
FAN
TEMP LAMP
ON
ON/
STANDBY
icon will appear during
Description
Shrink screen top
Remote
Control
VOL.-
PJ MODE
AUTO SET FREEZE
AUTO
KEYSTONE
ON/
STANDBY
30

Freezing the image (Freeze)

The image being projected can be made to be frozen. This function is to
be used to pause a video during a presentation, etc.
Press the remote control's FREEZE button.
VOL.+
The picture is paused. The Freeze function is released when
LASER
MENU / ENTER
pressing the FREEZE button again.
R-CLICK
INPUT
Notes
RESIZE
MUTE
• The
icon will appear while freeze is in effect.
OFF
• The freeze function can be used on the resize function. Other
operations will release the freeze.
• Even if an image is frozen on the projector, it is still changing on the video or other
equipment.

Enlarging the picture size (Resize)

The image being projected can be enlarged.
1
Press the remote control's RESIZE
The enlargement ratio is increased each time the RESIZE
While the button is pushed, the image continues increasing to a limit.
2
To decrease the enlargement ratio, press the remote control's RESIZE
button.
The enlargement ratio is decreased each time the RESIZE
(The image cannot be shrunk to less than its original size.)
3
Press and hold down the
move the enlarged area.
VOL.+
LASER
4
Press the OFF button to undo the resize.
MENU / ENTER
R-CLICK
INPUT
The resize is released, and the image returns to its original size.
Notes
RESIZE
MUTE
• The
icon will appear while resize is in effect.
OFF
• An enlarged image can be frozen using the FREEZE button. The resize function on
a frozen image can also be used.
• Operations other than freeze will release the resize.
• Since the enlargement is performed using digital processing, enlarging the image
will cause it to appear jagged.
• Rarely, the picture could become garbled while the enlarged area is being moved.
Remote
Control
VOL.-
PJ MODE
AUTO SET FREEZE
AUTO
KEYSTONE
ON/
STANDBY
button.
button is pressed.
button is pressed.
Remote
Control
buttons to
VOL.-
PJ MODE
MENU / ENTER
R-CLICK
INPUT
AUTO SET FREEZE
AUTO
RESIZE
KEYSTONE
MUTE
ON/
STANDBY
OFF
31
VOL.+
LASER
MENU / ENTER
R-CLICK
INPUT
RESIZE
MUTE
OFF
e
VOL.+
LASER
q
w
r
