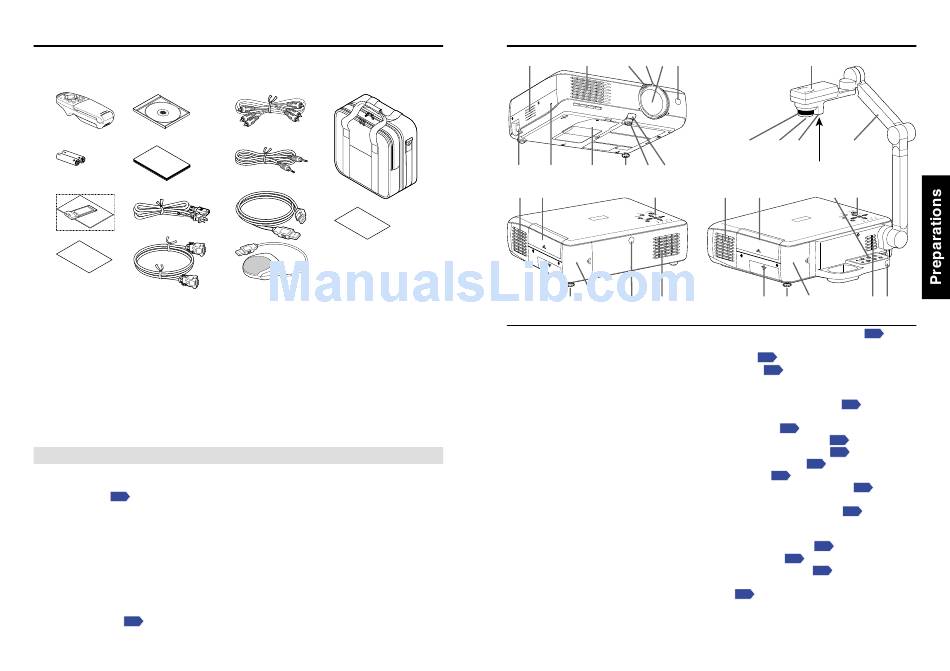

Checking the package contents

Please make sure that the following items are included in the box, along with the main unit.
If an item is missing, please contact the store from which you purchased the product
immediately.
(1)
(5)
(2)
(6)
(3)
(7)
(4)
(8)
I
(1) Remote control
I
(2) AAA dry-cell batteries for remote
control (2)
I
(3) Wireless LAN PC card
(See note 1)
I
(3) Information to the user
(See note 1)
I
(4) Quick Reference
I
(5) CD-ROM
I
(6) Owner's Manual (this document)
I
(7) Power cord
(See note 3)
Notes
1: Included with models equipped with PC card slot.
2: Included with models not equipped with PC card slot.
3: The shape and number of power cords supplied vary depending on the product destination.
NThe Supplied CD-ROM
The supplied CD-ROM contains an owner's manual including information omitted in the
Owner's manual (Getting started), Acrobat
and applications
p.24
for using the functions of models equipped with a PC card slot.
I Installing Acrobat
®
Reader™
Windows: In the CD-ROM, select the Reader/English folder, and run ar500enu.exe.
Follow the on-screen instructions.
Macintosh: In the CD-ROM, select the Reader/English folder, and run Reader Installer.
Follow the on-screen instructions to install the software.
I Viewing the manual
In the CD-ROM, double-click on Start.pdf. Acrobat
screen of the Owner's manual appears. Click on your language. The Owner's Manual
cover and list of bookmarks appear. Click on a bookmark title to view that section of the
manual. Click on
p.
to view a reference page with related information. See the Help
menu for more information about Acrobat
(9)
(13)
(10)
(11)
(14)
(12)
I
(8) RGB cable
I
(9) AV cable
I
(10) Audio cable (for computer)
I
(11) USB cable
(See note 2)
I
(12) Mouse remote control receiver
(See note 1)
I
(13) Carrying bag
I
(14) License information
(See note 1)
®
Reader™, which is needed to view the manual,
®
Reader™ launches, and the menu
®
Reader™.
14

Names of each part on the main unit

(6)
(5)
(4)
(3)
(2)
(1)
(7)
(8)
(9)
(10)
(11)
(12)
(15)
(14)
(13)
(10) (16)
(14)
(1)
(15)
Name
: Function
(1) Infrared remote sensor
: Senses commands from the remote control
(2) Lens
: Projects expanded image
(3) Zooming lever
: Adjusts screen size
(4) Focusing ring
: Adjusts screen focus
(5) Air exhaust
: Expels air that has grown hot inside the projector
(6) Speaker
: Plays audio
(7) AC IN socket
: Connect the supplied power cord here
(8) Anti-theft lock hole
: Attach a security chain, etc. here
(9) Lamp cover
: Remove to replace lamp
(10) Tilt adjuster
: Adjusts the projector's horizontal tilt
(11) Foot adjuster
: Adjusts the vertical projection angle
(12) Foot adjuster release button : Press to stow the foot adjuster
(13) Control panel
: Operates the projector
(14) Connection terminal cover
: Remove to connect to an external device
(15) Air intake
: Draws in air from outside unit
(16) PC card slot cover
[See note 1]
: Remove to mount/remove the PC card
(17) Camera head
[See note 2]
: The document camera
[See note 2]
(18) Camera lens
: The document camera's lens
[See note 2]
(19) Camera focusing ring
: Adjusts document camera focus
(20) Camera arm
[See note 2]
: Adjusts the camera angle
(21) Camera control panel
[See note 2]
: Operates the document camera
(22) Camera light
[See note 2]
: Shines light on the object that the document camera is
photographing
Notes
1: Models equipped with PC card slot
2: Models equipped with document camera
(17)
(19)
(18)(22)
(20)
LED Light
(15)
(14)
(21)
(13)
(10) (16)
(14)
(15)
(1)
p.19
p.28
p.28
p.25
p.58
p.28
p.28
p.28
p.16
p.18
p.23
p.45
p.44
p.17
p.44
