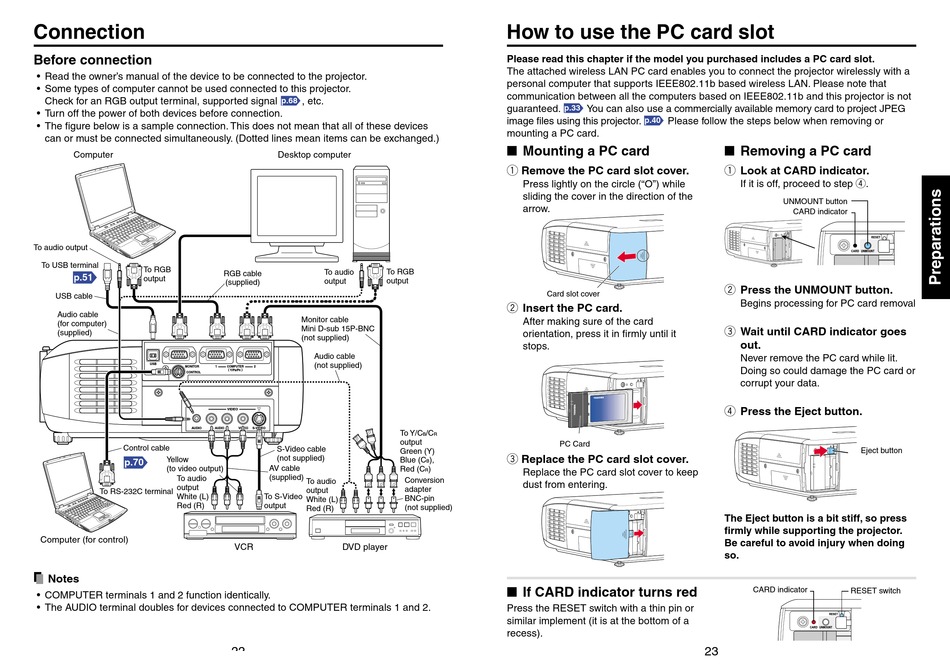

Connection

Before connection
• Read the owner's manual of the device to be connected to the projector.
• Some types of computer cannot be used connected to this projector.
Check for an RGB output terminal, supported signal
• Turn off the power of both devices before connection.
• The figure below is a sample connection. This does not mean that all of these devices
can or must be connected simultaneously. (Dotted lines mean items can be exchanged.)
Computer
To audio output
To USB terminal
To RGB
p.51
output
USB cable
Audio cable
(for computer)
(supplied)
USB
MONITOR
CONTROL
AUDIO
R - AUDIO - L
Control cable
Yellow
p.70
(to video output)
To audio
output
To RS-232C terminal
White (L)
Red (R)
Computer (for control)
Notes
• COMPUTER terminals 1 and 2 function identically.
• The AUDIO terminal doubles for devices connected to COMPUTER terminals 1 and 2.
p.68
, etc.
Desktop computer
To audio
To RGB
RGB cable
output
output
(supplied)
Monitor cable
Mini D-sub 15P-BNC
(not supplied)
Audio cable
(not supplied)
1
COMPUTER
2
( Y/P
)
B
/P
R
VIDEO
VIDEO
S-VIDEO
S-Video cable
(not supplied)
AV cable
(supplied)
To audio
output
To S-Video
White (L)
output
Red (R)
VCR
DVD player
22

How to use the PC card slot

Please read this chapter if the model you purchased includes a PC card slot.
The attached wireless LAN PC card enables you to connect the projector wirelessly with a
personal computer that supports IEEE802.11b based wireless LAN. Please note that
communication between all the computers based on IEEE802.11b and this projector is not
guaranteed.
p.33
image files using this projector.
mounting a PC card.
I Mounting a PC card
q Remove the PC card slot cover.
Press lightly on the circle ("O") while
sliding the cover in the direction of the
arrow.
Card slot cover
w Insert the PC card.
After making sure of the card
orientation, press it in firmly until it
stops.
To Y/C
/C
B
R
output
PC Card
Green (Y)
e Replace the PC card slot cover.
Blue (C
),
B
Red (C
)
R
Replace the PC card slot cover to keep
Conversion
dust from entering.
adapter
BNC-pin
(not supplied)
I If CARD indicator turns red
Press the RESET switch with a thin pin or
similar implement (it is at the bottom of a
recess).
You can also use a commercially available memory card to project JPEG
p.40
Please follow the steps below when removing or
I Removing a PC card
q Look at CARD indicator.
If it is off, proceed to step r.
w Press the UNMOUNT button.
Begins processing for PC card removal
e Wait until CARD indicator goes
out.
Never remove the PC card while lit.
Doing so could damage the PC card or
corrupt your data.
r Press the Eject button.
The Eject button is a bit stiff, so press
firmly while supporting the projector.
Be careful to avoid injury when doing
so.
CARD indicator
23
UNMOUNT button
CARD indicator
Eject button
RESET switch
