Parameter Adjustment - Mec 1330SE Service & Parts Manual

Secton 10 - Control System
Main Screen Display

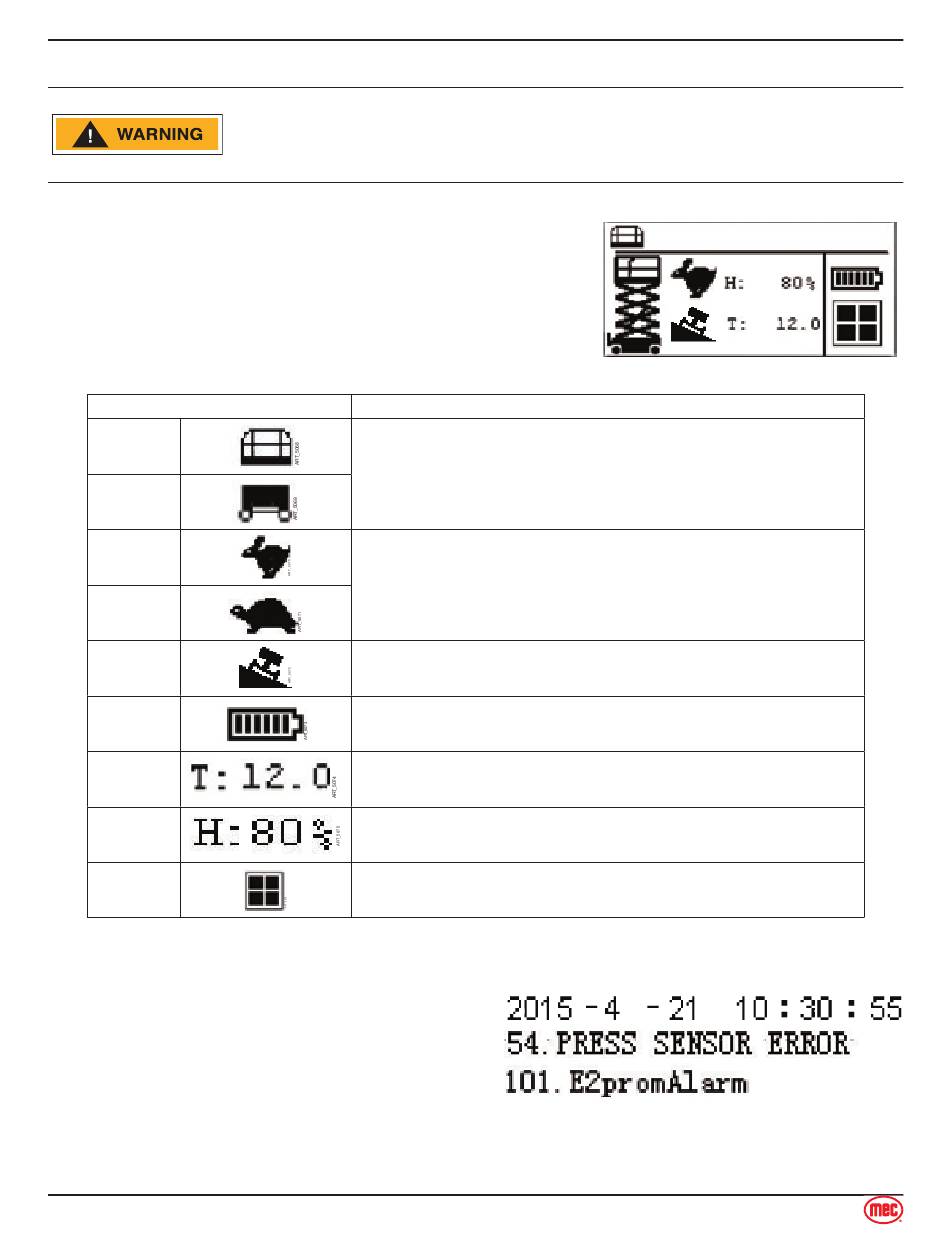

The following screen is displayed during normal machine
operation at the Base Controls station. Not all of the icons
shown appear all of the time.
Icon
Platform
Operation
Base
Operation
High
Speed
Low
Speed
Tilt
Battery
Hour
Meter
Height
Indicator
Menu
The top line of the Main Display Screen is normally
blank but will display the date and time when
touched.
This area automatically displays fault, alarm and
machine-state codes when present.
The touch screen does not work when a warning or
alarm is displayed.
Page 31

Parameter Adjustment

PARAMETERS SHOULD BE ADJUSTED ONLY IF THE FUNCTION IS
OPERATING OUTSIDE OF MACHINE SPECIFICATIONS, OR IF WRITTEN
APPROVAL IS OBTAINED FROM MEC PRIOR TO MAKING THE CHANGE������
The upper left corner will indicate either Platform or Base operation,
depending on the position of the Key Switch.
The High or Low Speed drive icon display the drive speed selected
at the Platform Controls.
Low Speed is automatically selected when the platform is elevated.
This icon is displayed when the angle of the ground exceeds the
allowable tilt angle with the platform elevated.
This icon displays the current charge state of the battery pack.
Hour Meter indicates total elapsed time of machine operation.
Displays the lift height by percentage. 0% indicates the stowed
position, while 100% indicates that the platform is fully elevated.
Press the Menu button to reach additional menus.
