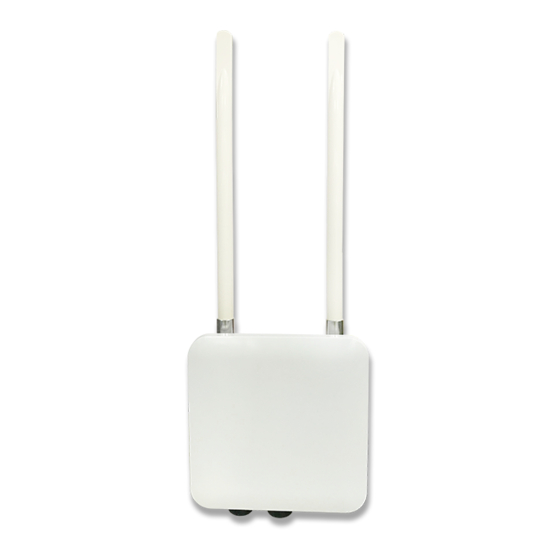

- Page 1 ECWO5212-L 11ac dual band IP68 Access Point with external antenna...
-
Page 2: Copyright Notice
Quick Installation Guide ECWO5212-L 11ac dual band IP68 Access Point with external antenna ENGLISH Copyright Notice This document is protected by USA copyright laws and other laws. Besides, the document is the property of Edgecore Networks Corporation. You may not copy,... - Page 3 Quick Installation Guide ECWO5212-L 11ac dual band IP68 Access Point with external antenna ENGLISH FCC CAUTION This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
- Page 4 Quick Installation Guide ECWO5212-L 11ac dual band IP68 Access Point with external antenna ENGLISH Taiwan NCC Statement 根據 NCC 低功率電波輻射性電機管理辦法 規定: 經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變更頻率、加大功率或 第十二條 變更原設計之特性及功能。 低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立即停用，並改善 第十四條 至無干擾時方得繼續使用。前項合法通信，指依電信法規定作業之無線電通信。低功率射頻電機須忍受 合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。 使用此產品時應避免影響附近雷達系統之操作。 本器材須經專業工程人員安裝及設定，始得設置使用，且不得直接販售給一般消費者。 「本產品電磁波曝露量 MPE 標準值 1mW/cm ，送測產品實測值為 0.51996 mW/ cm ，建議使用時至少距離人體 cm」...
- Page 5 Quick Installation Guide ECWO5212-L 11ac dual band IP68 Access Point with external antenna ENGLISH Preface Package Contents Edgecore ECWO5212-L 11ac dual band IP68 1. Edgecore ECWO5212-L x 1 Access Point with external antenna 2. 5G Antenna x 2 enterprise-grade dual radio 802.11 a/b/g/n + ac 3.
-
Page 6: System Overview
Quick Installation Guide ECWO5212-L 11ac dual band IP68 Access Point with external antenna ENGLISH System Overview ECWO5212-L Front ECWO5212-L Back ECWO5212-L Downside ECWO5212-L Upside... - Page 7 2.4G LED will blink when there is 2.4G traffic. Status LED ECWO5212-L status (Green). The Status LED will start blinking when the ECWO5212-L is booting. After finishing booting, the Status LED will always Due to extreme weather conditions, water vapor in the ECWO5212-L may Ventilation Valve condense.
-
Page 8: Hardware Installation
Please follow the steps mentioned below to install the hardware of ECWO5212-L: 1. Attach 5G antennas on the ECWO5212-L 2. Place the ECWO5212-L at the best location. The best location for ECWO5212-L is usually at the center of your intended wireless network. Wall mount 1. Secure screws on the wall. - Page 9 3. Connect the ECWO5212-L to your network device. Connect one end of the Ethernet cable to the Uplink (PoE) port of ECWO5212-L and the other end of the cable to a switch, a router, or a hub. ECWO5212-L is then connected to your existing wired LAN network.
-
Page 10: Getting Started
1. To access the web management interface, connect the administrator PC to the LAN port of ECWO5212-L via an Ethernet cable. Then, set a static IP address on the same subnet mask as ECWO5212-L in TCP/IP of your PC, such as the following example: IP Address: 192.168.1.100... - Page 11 ECWO5212-L 11ac dual band IP68 Access Point with external antenna ENGLISH 4. After a successful login into ECWO5212-L’s Web user interface (Web UI), a System Overview page of web management interface will appear, as depicted below. The Web Management Interface - System Overview Page Congratulations! Now, Edgecore ECWO5212-L is installed and configured successfully.
