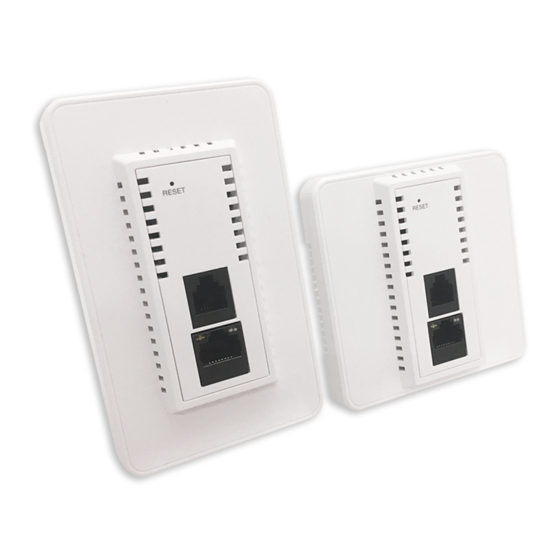

ECW100
In-Wall Access Point

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ECW100 and is the answer not in the manual?

Questions and answers

Related Manuals for Edge-Core ECW100

Summary of Contents for Edge-Core ECW100

  • Page 1 ECW100 In-Wall Access Point...

  • Page 2: Copyright Notice

    Quick Installation Guide ECW100 In-Wall Access Point ENGLISH Copyright Notice This document is protected by USA copyright laws and other laws and is the property of Edgecore Networks Corporation. You may not copy, reproduce, distribute, publish, display, perform, or modify any part of this publication in any form or by any means without prior written permission from Edgecore Networks Corporation.

  • Page 3: Fcc Caution

    Quick Installation Guide ECW100 In-Wall Access Point ENGLISH FCC CAUTION This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 4 Quick Installation Guide ECW100 In-Wall Access Point ENGLISH CE CAUTION Hereby, Edgecore Networks Corporation declares that the radio equipment type ECW100 is in compliance with Directive 2014/53/EU. Frequency Range and Transmit Power Frequency range (MHz) Max. transmit power (dBm) 2412-2472 19.26 dBm...
  • Page 5 Quick Installation Guide ECW100 In-Wall Access Point ENGLISH Taiwan NCC Statement 根據 NCC 低功率電波輻射性電機管理辦法 規定: 第十二條 經型式認證合格之低功率射頻電機，非經許可， 公司、商號或使用者均不得擅自變更頻率、 加大功率或變更原設計之特性及功能。 第十四條 低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立即 停用，並改善至無干擾時方得繼續使用。前項合法通信，指依電信法規定作業之無線電通 信。低功率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。 在 5.25 ~ 5.35 秭赫頻帶內操作之無線資訊傳輸設備，限於室內使用。 減少電磁波影響，請妥適使用 [警語]「電磁波曝露量 MPE 標準值 1mW/cm2，送測產品實測值為 0.124 mW/cm2」...

  • Page 6: Package Contents

    Preface Package Contents The Edgecore ECW100 Enterprise In-Wall Access 1. Edgecore ECW100 (US / EU Type) x 1 Point is a dual radio Wi-Fi IEEE 802.11b/g/n + 2. Cover Plate (US / EU Type) x 1 a/n/ac 2 X 2 MIMO access point. With a simplistic 3.

  • Page 7: System Overview

    Quick Installation Guide ECW100 In-Wall Access Point ENGLISH System Overview US Type ECW100 Front ECW100 Bottom Holes Screw Holes. Restart / Reset Press once to restart the system; hold for more than 5 seconds to reset the system to factory default settings.
  • Page 8 Quick Installation Guide ECW100 In-Wall Access Point ENGLISH EU Type ECW100 Front ECW100 Bottom Holes Screw Holes. Restart / Reset Press once to restart the system; hold for more than 5 seconds to reset the system to factory default settings.

  • Page 9: Hardware Installation

    Step 1. Place the ECW100 at the desired location for optimized coverage. Step 2. Connect one end of an Ethernet cable to the ECW100 uplink port, and the other end to an IEEE 802.3af-compliant PSE device, such as a PoE switch, router, or hub.
  • Page 10 Quick Installation Guide ECW100 In-Wall Access Point ENGLISH Step 3. Screw the ECW100 into the wall. US Type EU Type...
  • Page 11 Quick Installation Guide ECW100 In-Wall Access Point ENGLISH Step 4. Cover with the cover plate. US Type EU Type Now, the hardware installation is complete.  To verify the wired connection between the AP and PoE switch, router, or hub, please also check the...

  • Page 12: Getting Started

    1. To access the Web Management Interface, connect the administrator PC to the LAN port of ECW100 via an Ethernet cable. Then, set a static IP address on the same subnet mask as ECW100 in TCP/IP of your PC, such as the following example: IP Address: 192.168.1.100...
  • Page 13 Quick Installation Guide ECW100 In-Wall Access Point ENGLISH 4. After a successful login to ECW100, a System Overview page of the Web Management Interface will appear, as depicted below. The Radio Status and AP Status will be shown. The Web Management Interface - System Overview Page 5.

  • Page 14: Common Settings

    Quick Installation Guide ECW100 In-Wall Access Point ENGLISH Common Settings Step 1. Change Administrator’s Password Change Password Page  Click on the Utilities icon on the main menu, and select the Change Password tab.  Enter a new password with a length of up to 32 characters, and retype it in the Re-enter New Password field.
  • Page 15 2.4GHz for the band, 802.11g+802.11n for the protocol and 6 for the channel. Admin should be aware of Dynamic Frequency Selection (DFS) mandated on some channels of the 5GHz band. When an ECW100 detects interference, this mechanism will limit the ability to broadcast the SSID on one of the channels listed below: ...
  • Page 16 Step 3. Configure VAP (Virtual Access Point) Profile Settings VAP Configuration Page (VAP-1 shown)  The ECW100 supports up to 8 virtual APs (VAPs) per radio. Configure VAP profile settings： (a) Select the VAP Config tab to configure the settings of the desired VAP.
  • Page 17 Quick Installation Guide ECW100 In-Wall Access Point ENGLISH Virtual AP Overview Page...
  • Page 18 ECW100 In-Wall Access Point ENGLISH Step 4. Configure WDS (Wireless Distribution System) Settings (Optional) To extend the wireless coverage, ECW100 supports up to 4 WDS links for connecting wirelessly to other WDS-capable APs, or peer APs. By default, all WDS profiles are disabled.
  • Page 19 Congratulations! Now, Edgecore ECW100 is installed and configured successfully. After ECW100's network configuration is completed, please remember to change the IP Address of your PC Connection Properties back to its original settings in order to ensure that your PC functions properly in its real network environments.
