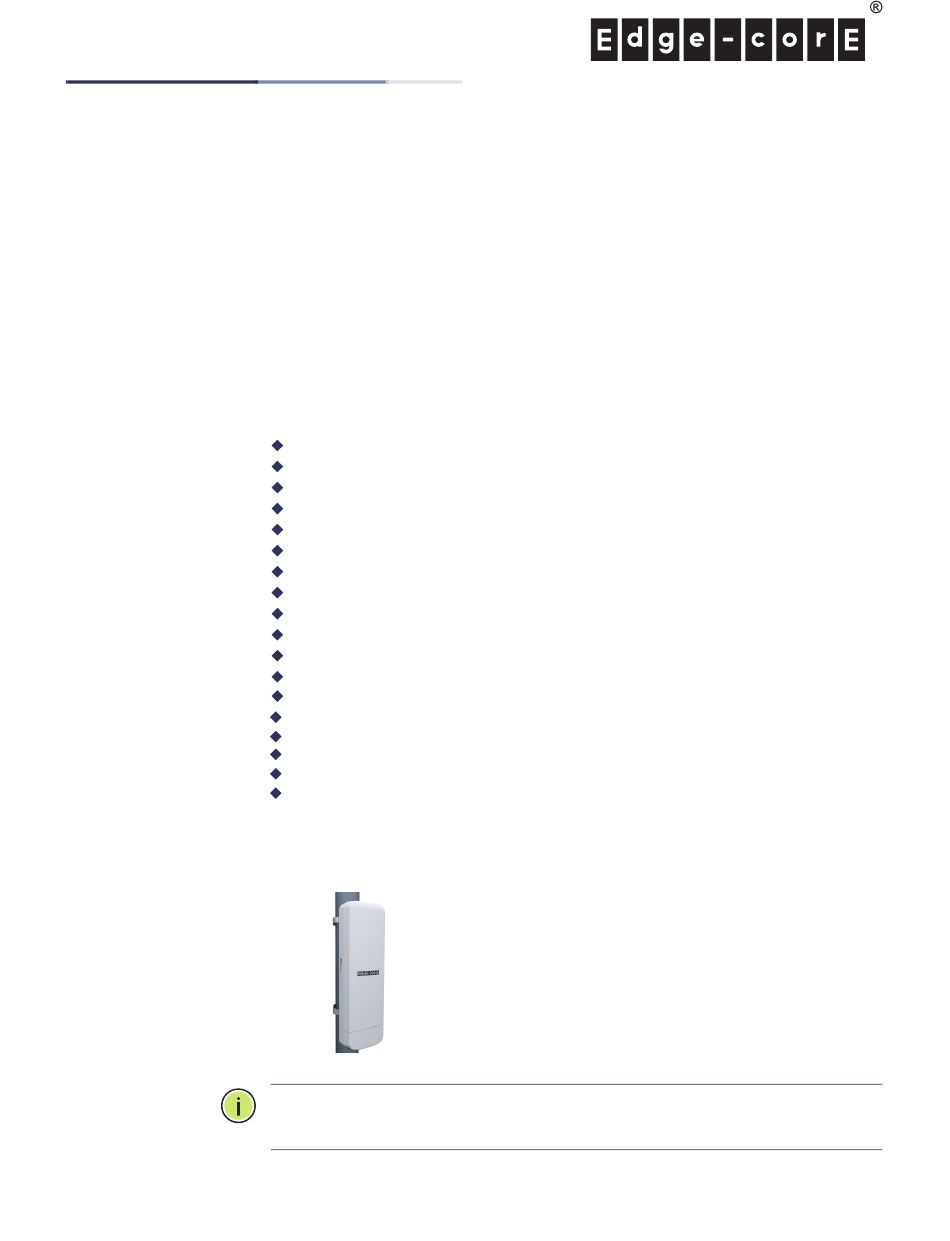

Quick Star t Guide
802.11ac Outdoor Stand-Alone/Cloud-Based Access Point
ECWO3300, 4300, 5300 Series
www.edge-core.com

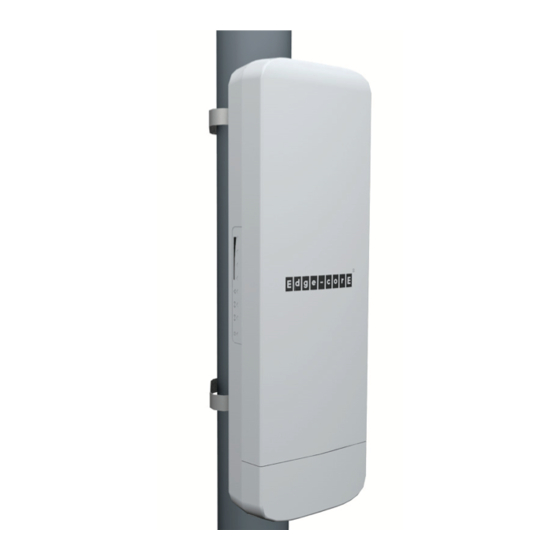

The ECWO3300/4300/5300 Series are a family of single- and dual-band (2.4/5 GHz)
access points (APs) that are housed in a waterproof enclosure for mounting
outdoors. The units include a built-in mounting bracket for attaching to a 1.5 to 6-
inch pole and they can be powered through their Ethernet cable connection from a
power injector module that is installed indoors.
The ECWO3300/4300/5300 Series includes these models:
ECWO3320 — 2.4 GHz stand-alone AP with internal antennas
ECWO3320-L — 2.4 GHz controller-based AP with internal antennas
ECWO3324 — 2.4 GHz stand-alone AP with external antennas
ECWO3324-L — 2.4 GHz controller-based AP with external antennas
ECWO4320 — 5 GHz stand-alone AP with internal antennas
ECWO4320-L — 5 GHz controller-based AP with internal antennas
ECWO4324 — 5 GHz stand-alone AP with external antennas
ECWO4324-L — 5 GHz controller-based AP with external antennas
ECWO5320 — Dual-band stand-alone AP with 5 GHz internal antennas
ECWO5320-L — Dual-band controller-based AP with 5 GHz internal antennas
ECWO5324 — Dual-band stand-alone AP with external antennas
ECWO5324-L — Dual-band controller-based AP with external antennas
ECWO3320-C — 2.4 GHz cloud-based AP with internal antennas
ECWO3324-C — 2.4 GHz cloud-based AP with external antennas
ECWO4320-C — 5 GHz cloud-based AP with internal antennas
ECWO4324-C — 5 GHz cloud-based AP with external antennas
ECWO5320-C — Dual-band cloud-based AP with 5 GHz internal antennas
ECWO5324-C — Dual-band cloud-based AP with external antennas
Note:
For Safety and Regulatory information, refer to the Safety and Regulatory
Information document included with the AP.
– 1 –
E052014-CS-R01
150200000891A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ECWO3320-L and is the answer not in the manual?

Questions and answers

Summary of Contents for Edge-Core ECWO3320-L

  • Page 1 The ECWO3300/4300/5300 Series includes these models: ECWO3320 — 2.4 GHz stand-alone AP with internal antennas ECWO3320-L — 2.4 GHz controller-based AP with internal antennas ECWO3324 — 2.4 GHz stand-alone AP with external antennas ECWO3324-L — 2.4 GHz controller-based AP with external antennas ECWO4320 —...
  • Page 2: Safety And Regulatory Information

    Consult the dealer or an experienced radio/TV technician for help FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. www.edge-core.com E052014-CS-R01 – 1 – 150200000892A...
  • Page 3: Radiation Exposure Statement

    Safety and Regulatory Information This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Operation within the 5.15 ~ 5.25GHz / 5.47 ~5.725GHz frequency range is restricted to an indoor environment. The 5600-5650MHz band is disabled by software during manufacturing and cannot be changed by the end user.
  • Page 4: National Restrictions

    Safety and Regulatory Information 2. Emplacement d'installation En usage normal, afin de respecter les exigences reglementaires concernant l'exposition aux radiofrequences, ce produit doit etre installe de facon a respecter une distance de 20 cm entre l'antenne emettrice et les personnes. 3.
  • Page 5 Safety and Regulatory Information Europe - EU Declaration of Conformity This device complies with the essential requirements of the R&TTE Directive 1999/ 5/EC. The following test methods have been applied in order to prove presumption of conformity with the essential requirements of the R&TTE Directive 1999/5/EC: ◆...
  • Page 6 Alulírott, Edge-Core nyilatkozom, hogy a Radio LAN device megfelel a vonatkozó Magyar alapvetõ követelményeknek és az 1999/5/EC irányelv egyéb elõírásainak. Italian Con la presente Edge-Core dichiara che questo Radio LAN device è conforme ai requisiti Italiano essenziali ed alle altre disposizioni pertinenti stabilite dalla direttiva 1999/5/CE. Latvian Ar šo Edge-Core deklarē, ka Radio LAN device atbilst Direktīvas 1999/5/EK būtiskajām...
  • Page 7 Edge-Core týmto vyhlasuje, že Radio LAN device spĺňa základné požiadavky a všetky Slovensky príslušné ustanovenia Smernice 1999/5/ES. Slovenian Edge-Core izjavlja, da je ta radio LAN device v skladu z bistvenimi zahtevami in ostalimi Slovensko relevantnimi določili direktive 1999/5/ES. Spanish Por medio de la presente Edge-Core declara que el Radio LAN device cumple con los Español...
  • Page 8: Warnings And Cautionary Messages

    Safety and Regulatory Information Warnings and Cautionary Messages Warning: This product does not contain any serviceable user parts. Warning: Installation and removal of the unit must be carried out by qualified personnel only. Warning: When connecting this device to a power outlet, connect the field ground lead on the tri-pole power plug to a valid earth ground line to prevent electrical hazards.
  • Page 9: Pole Mounting

    Quick Start Guide Follow the steps in this guide to install the AP in your network. Caution: The planning and installation of the AP requires professional personnel that are trained in the installation of radio transmitting equipment. The user is responsible for compliance with local regulations concerning items such as antenna power, use of lightning arrestors, grounding, and radio mast or tower construction.
  • Page 10: Connect Cables

    Quick Start Guide Attach External Antennas Remove the front port cover by pushing the locking tab up and then sliding the cover off. Connect external antennas to the AP’s 5 GHz RP-SMA connectors using RF coaxial cable provided in the antenna package.
  • Page 11: Verify Ap Operation

    Quick Start Guide Connect the Ethernet cable from the AP to the “POE” port on the power injector. Connect Ethernet cable from the “LAN” port on the power injector to a LAN switch. Connect the power cord to a nearby AC power source (100-240 VAC, 50/60 Hz).
  • Page 12: User Interface

    Quick Start Guide 6. Connect to the Web The stand-alone APs offer a web-based management interface for the configuration of all the unit’s features. User Interface You can make initial configuration changes by connecting a PC directly to the AP’s ETH1 RJ-45 port.
  • Page 13: Hardware Specifications

    Quick Start Guide Hardware Specifications Item Specification Chassis Size (H x W x D:) 280.86 x 91.85 x 50.35 mm (11.06 x 3.62 x 1.98 inches) Weight 0.75 kg (1.65 lb) Temperature Operating: -20 °C to 65 °C (-4 °F to 149 °F) Storage: -30 °C to 80 °C (-22 °F to 176 °F) Humidity Operating: 15% to 95% (non-condensing)
